Specifications
Manual Tripod turnstiles1 CE certificated
2 Indoor , Outdoor ok
3 Long life, heavy duty

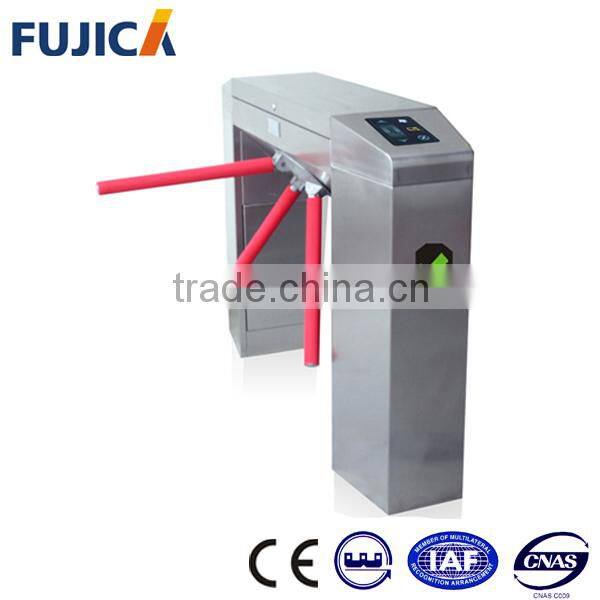

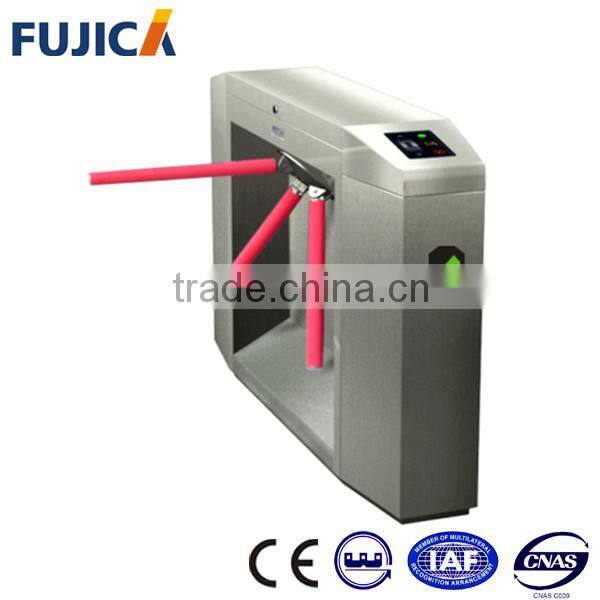

Manual Tripod turnstiles FJC-Z3318
Product Description:
Fujica Manual Tripod turnstiles consists of casing, magnetic force turn plate, reader module, main controller module, direction guide, limit switch etc., can be used for entrance control, applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent tripod turnstile management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc. The equipment opens half-automatically, Mifare-1, IC, ID and Bluetooth are available to be used with the tripod turnstile.
| Power consumption | 50W |
| Housing Size | 1300*280*950mm |
| Housing material | 1.5--2mm, 304# stainless steel, corosion resistant |
| Drive motor | NA |
| Channel width | 550--600mm |
| Pass speed | 25 persons/min. |
| IP protection | IP44 |
| Input singal optional | DC12V/dry/contact/RS485/RS232/Remote) |
| railing-off against power off | Yes |
| Working enviroment temperature | minors 30°C to 70 °C |
| Working environments | indoor,outdoor |
| Relative humidity | ≤95% coagulation free |
| MCBF | 2,000,000 cycle |
Fuctions:
1. Can open the turnstile by two input signals (signals can be input by access controller, button
or other equipments)
2. Direction guide function, when the turnstile is ready to read card, the yellow light in the
middle will turn one; after reading card and ready for passing, the upper blue light will turn
on; if try to push the railing without permission, the red light will turn on
3. Single direction or double direction optional
4. Railing will be off when power off
5. Counting function, if read the card for N times, N persons can pass before the railing close,
N<=8(optional function)
6. Voice prompt and display screen available (optional)
7. External counter can be connected to count number of passed people (optional)
8. RS485communication, PC command through serial port is allowed (optional)
9. Alarming output for pushing the railing without permission(optional)
Package: Wooden Box
Size: 1300*280*950mm
Company information:
Fujica is a company specializing in developing and producing car parking system, flap barrier, tripod turnstile, swing barrier and door access management system etc.. Our products are competitive in design, craftsmanship, quality and cost effective ratio. Besides, we are one of the partner of Beijing 2008 Olympic Games and Shanghai 2010 Expo with good reputation.
