Cemented carbide stamp dies

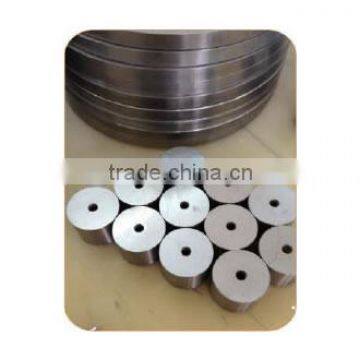

  Tungsten Carbide Dies Blanks

1. Drawing dies --- for drawing metal wire

2. Stamping dies--- for producing standard fasteners

3. Dies of powder metallurgy --- For powder metallurgy forming

4. Formed plates

    Tungsten carbide is a class of materials widely used in drawing dies because of their superior strength, toughness, and wear resistance. Tungsten carbide punches and dies, well supported and properly aligned, are satisfactory for blanking and punching. Good ferrous and non-ferrous wire is drawn through a series tungsten carbide dies in a process of elongating and reducing the wire's diameter.

      Our company has in its possession an advanced production line for manufacturing dies and moulds and a production line for post machined cemented carbide products. We have kinds of standard or nonstandard model blanks with plus or minus tolerance and plus or minus high tolerance We can also supply tailor-made products of various specifications based on the requirements of our customers.

     Our growth to a position of the market dominance in the wire die industry is because we strive to provide more than just the world's finest carbide draw dies. We continually improve and expand the capabilities of our tungsten carbide draw dies. By controlling the fabrication of all our own tooling onsite, we're able to provide carbide die blanks to any specific hole size at any time.

Here below please find some drawings with the specifications we have supplied our clients, and your specific product inquiries are also highly valued.

Recommended Grade for Tungsten Carbide Dies: YG6, YG8, YG6X, YG8X, YG15, YG20C, YD40, YD45 etc.

Core adavantages:

1.Quality guarantee:

  Raw material quality: Each batch materials have been recorded and can be traced. Besides, each batch materials have be sample inspected.

  Finished products quality: 100% full inspected

2.Strong technology:

  The physical and chemical properties of our products are higher than the industry standard ,GB.

3. Can receive order of shaped parts:

  We have strong development capability , can provide the best solution to customer according to the requirements of working condition ,such as raw material choosing.

Quality control :

1.    Advanced quality inspect equipment;
2.    2 times sample inspect for raw material . 100% full inspect for finished products.

1.Packaging way:  paper packing + carton+ wooden case

   2.Shipping way :    By DHL express

                               By UPS express

                               By Fedex express

                               By TNT express

                               By EMS

                               By air

                               By sea

1. Warranty of 3 years ;

 2. Provide the best solution according to the work condition of the parts.

 Our    Certification

History of HD Carbide

All it starts from 2004, when Metallurgical and Materials Engineer XieXianJian and Machinist ChenSuQuan, ZengZuoRan, followed their entrepreneurial dream and built a small workshop on the JinJi village near Petroleum Equipment city GuangHan, south west of China. Their dream was to be the "China's expert in tungsten carbide material". The desire to reach that target Tungsten Carbide products company took hold in their imagination and with years of hard work, they reached their goal and dream. HD Carbide's Tungsten Carbide products company is now in an international level and growing fast.

From the first product sample in 2010, we have past the world's most rigorous tests from John Care's laboratory in Chicago. Ever since we have past every test. During the cooperation with John Care and it being such a big international company, we have learned many advanced management concept and quality control skills which has helped us in efficiency at work, providing multi-angle improvement on our product performance and meaning that we consistently achieve our targets. With this we would like to express our appreciation and thanks to John Care. We will, as always, supply high quality, stable and speedy products.

Over the years we have strived to continue with our success and currerntly provide a number of tungsten carbide and cemented tungsten carbide cutting tools and wear parts for all industries.
