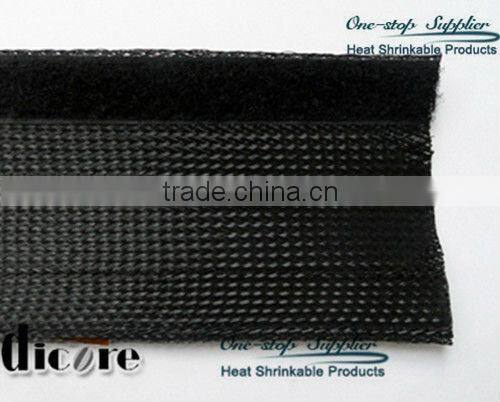

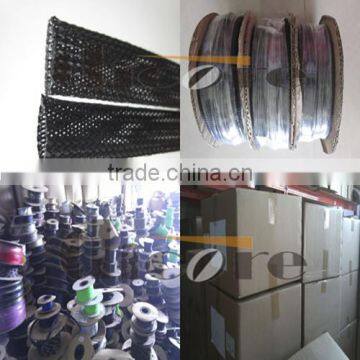

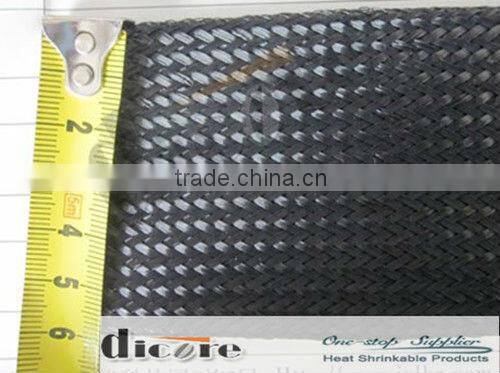

heat shrink nylon braided pet cable sleeving
Flame-retardant PET Expandable Braided Sleeving(PETS/PETS-F) is designed from durable environment friendly PET monofilament yarns and the unique braided construction enables quick and easy installation over large connectors. These sleevings are used in wire harnessing in industries, hose and cable protection for the automotive, heavy equipment and marine industries. And generally commercial applications such as personal computers, automotive, motorcycling, bicycling, flyfishing and scuba diving.
Features
>Flame-retardant
>Easy, Cost & Labor Effective Installation
>More Flexible Than Split Convoluted or Spiral Wrap
>Cuts easily with hot knife or scissor
>Cut & abrasion resistant
>25% Edge Overlap
>Chemical inert
>ROHS compliant
>UV resistant
>Cost effective wrap around solution
>Retains shape & rigidity throughout operating temperature range (-40°C to 125°C)
>Melt Temp 230°C
Technical Data
Property | Test Method | Typical Value |
Tensile Strength | ASTM D-876 | 100,000 psi |
Elongation | ASTM D-876 | 20% |
Specific Gravity | ASTM D-876 | 1.31 |
Moisture Absorption(24 hours) | ASTM D-570 | 0.08% |
Max.Operating Temperature | UL 224 | 125°C |
Melt Temperature | ASTM D-2117 | 250°C |
Low Temperature Flexibility | MIL I 23053/5 | -70°C |
Flexural Modulus | ASTM D-790 | 400 |
Fungus Resistance | MIL STD 810 (508) | No Growth |
Copper Corrosivity | MIL I 23053 | No Effect |
Specification:
Size | Bundle Diameter | Description | Density | ||
Inch | mm | Min. | Max. | X * Y * Z | |
1/8" | 3.2 | 3/32" | 1/4" | 40*1*0.25 | 12 |
1/4" | 6.4 | 1/8" | 7/16" | 32*3*0.20 | 10 |
3/8" | 9.5 | 3/16" | 5/8" | 48*3*0.20 | 9 |
1/2" | 12.7 | 1/4" | 3/4" | 56*3*0.20 | 8 |
3/4" | 19.1 | 1/2" | 1-1/4" | 72*3*0.20 | 9 |
1" | 25.4 | 1" | 2" | 96*3*0.20 | 8 |
1-1/4" | 29.0 | 3/4" | 1-3/4" | 96*3*0.25 | 8 |
1-1/2" | 40.0 | 1" | 2-1/2" | 96*4*0.25 | 7 |
1-3/4" | 45.0 | 1-1/4" | 2-3/4" | 120*3*0.25 | 7 |
2" | 50.0 | 1-1/2" | 3-1/2" | 120*4*0.25 | 7 |
Remarks:
X * Y * Z : “X” means total quantity of the Carriers, “Y” means the quantity of the ends in one carrier, “Z” means the diameter(mm) of the end.
