Home > Products > Relevant Wiring Accessories > Heat shrinkable Reinforce Telecommunication Shelter Sleeve
Heat shrinkable Reinforce Telecommunication Shelter Sleeve
- 100000000 Meter / Meters per Month
- Shenzhen
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | DICORE | Model Number: | HSRS-N |
Product Description
Together Make It Better

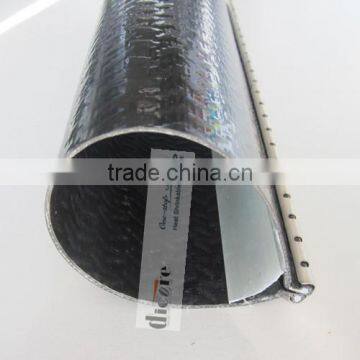

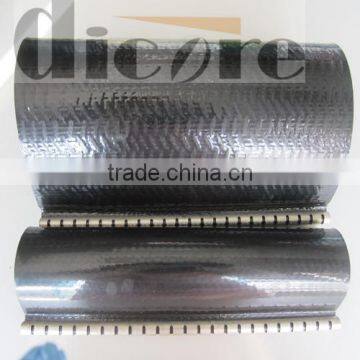

Heat shrinkable Reinforce Telecommunication Shelter Sleeve
Heat Shrinkable Cable Repair Sleeve (HSRS-N) is made of a cross-linked, heat-shrinkable, thermally stabilized polyolefin, which is coated with a hot-melt adhesive, it will bond at the temperatures attained during the shrinking operation. The HSRS-N has an aluminum canister providing mechanical protection of joint. Flexible crowns at the ends provide a smooth transition from the joint to the cable.
Features
>Quick and easy installation
>Covered with thermo paint
>Protection against mechanical stress
>Sleeve and channel can be cut to suit shorter applications
>For insulation on low voltage cable up to 1000V
>Hot melt adhesive forms a durable, moisture resistant seal
>Fit a wide range of cable sizes
Technical Data
Property | Test Method | Standard Value |
Tensile strength | ASTM-D-638 | ≥13MPa |
Elongation at break | ASTM -D- 638 | ≥300% |
Tensile strength after aging | ASTM-D-2671/120℃,168hrs | ≥11MPa |
Elongation at break after aging | ASTM-D-2671/120℃,168hrs | ≥210% |
Volume resistance | ASTM-D-2303 | ≥1×1014Ω·cm |
Dielectric strength | IEC 243 | ≥20kV/mm |
Longitudinal shrinkage | - | ≤ 10% |
Eccentricity | ASTM-D-267 | ≤30% |
Water absorption | ISO 62 | ≤0.1% |
Specification
Description | Usage Range of Cable outer diameter(O.D.) | Composition |
HSRS-N-28/6- | 7~12 | Heat-shrinkable sleeve Metal canister (2 half shells) Flexible stainless steel channels Note:
|
HSRS-N-36/10- | 12~20 | |
HSRS-N-50/15- | 20~40 | |
HSRS-N-60/18- | 30~50 | |
HSRS-N-70/22- | 40~60 | |
HSRS-N-80/25- | 50~70 | |
HSRS-N-100/30- | 60~90 | |
HSRS-N-135/38- | 70~120 | |
HSRS-N-164/42- | 80~150 | |
HSRS-N-185/55- | 90~160 | |
HSRS-N-200/60- | 100~180 | |
HSRS-N-220/65- | 120~200 |
*Alternative for Raychem CRSM,3M HDCW, CANUSA CRDW
Why DICORE?
* Quality is our culture
* Various material including Polyolefin, Silicone Rubber, PTFE, Kynar, Polyvinylidene Fluoride(PVDF), Viton,etc.
* A powerful technology team, big producing a capacity to offer a complete line of products with exceptional quality.
* One-stop supply of Heat Shrink Tube products and Wiring Harness.
* Competitive price, Flexible Payment Terms, Abundant Stocks, Short Delivery Time.
* 12 Years Professional Exporting Experience supported by the best service quality.
Happy with you, happy with us.
