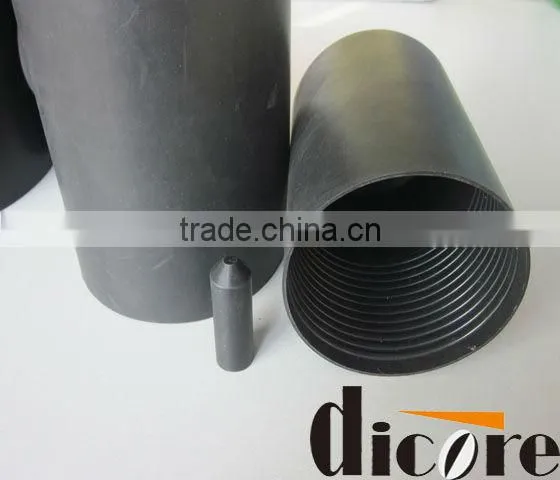

Heat Srinkable Cable End Capsfor Pvc Pipe

Name: Heat Srinkable Cable End Capsfor Pvc Pipe
Brand: Dicore, Dicore
SKU: 117090941
Availability: InStock

US$ 0.01 - 10 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Dicore, Dicore

Model Number:

HSEC, HSEC

Shenzhen Dicore Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Dicore, Dicore

Model Number HSEC, HSEC

Material Other, PE, PE

Specifications

Heat Shrinkable end caps for pvc pipe
1.ROHS, EVA adhesive,
2.with valve and no valve type
3.12mm to 200mm diameter

Heat Srinkable Cable End Caps for pvc pipe/ssc/ccap

Model	HSEC
Material	PE and adhesive
Type	standard length, extended length, and with valve
Tubing diameter	12mm to 200mm
Standard color	Black

Technical Data

Property	Test Method	Typical Data
Operating temperature	IEC 216	-55°C to +110°C
Tensile strength	ASTM D 638	>14 MPa
Elongation at break	ASTM D 638	> 400%
Density	ASTM D 792	1.05
Elongation at break after aging	150°C, 168hrs	>300%
Dielectric strength	IEC 243	>15KV/mm
Volume resistance	IEC 93	>1014Ω.cm

Part No.	Inner Diameter			After fully recovered Length ± 10%	After fully recovered Width ± 10%	Cable diameter
Part No.	As supplied (min)		After fully recovered (max)	After fully recovered Length ± 10%	After fully recovered Width ± 10%	Cable diameter
Standard length end cap
HSEC-12/ 4		12	4.0	40	2.6	4-10
HSEC-14/ 5		14	5.0	45	2.2	5-12
HSEC-20/ 6		20	6.0	55	2.8	6-16
HSEC-25/ 8.5		25	8.5	68	2.8	10-20
HSEC-35/ 16		35	16.0	83	3.3	17-30
HSEC-40/ 15		40	15.0	83	3.3	18-32
HSEC-55/ 26		55	26.0	103	3.5	28-48
HSEC-75/ 36		75	36.0	120	4.0	45-68
HSEC-100/ 52		100	52.0	140	4.0	55-90
HSEC-120/ 60		120	60.0	150	4.0	65-110
HSEC-145/ 60		145	60.0	150	4.0	70-130
HSEC-160/ 82		160	82.0	150	4.0	90-150
HSEC-200/ 90		200	90.0	160	4.2	100-180
Extended length end cap
