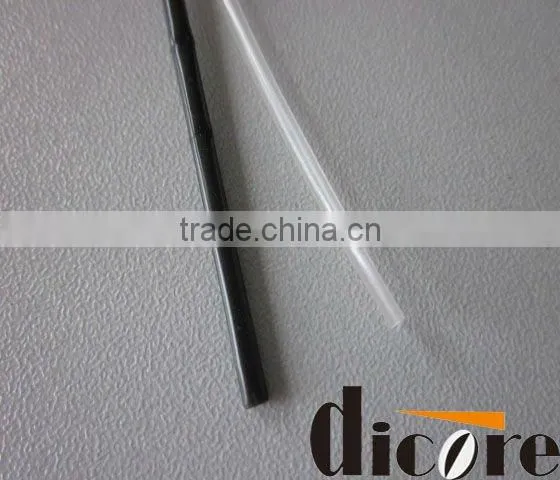

Heat Shrink PTFE teflon shrink tube hyaline sleeve
- 1000000 Meter / Meters per Month
- Shenzhen
- NQ core drill bits,diamond bits
- Cost effective Concrete thin wall core bits,diamond tipped core bits
- Long life CSC-120 crawler mucking loader ,tunnelling machine
- Thin Wall Wet Diamond Core Drill Bits
- R32 51mm EXX TC tipped Cross bits,drilling bits,taper bits
- H22 tapered dill steels for small hole drilling
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Dicore | Model Number: | HSTT |
Type: | Heat Shrinkable | Material: | PE |
Product Description
Specifications
Heat Shrink PTFE teflon shrink tubeROHS,1.7:1 and 4:1
Alternative products for Raychem TFE,
260C operating temp
Heat Shrink PTFE teflon shrink tube hyaline sleeve/TFE(cp)
Model | HSTT |
Material | PTFE/Teflon material |
Type | 1.7:1 and 4:1 shrink ratio |
Tubing diameter | 1.0mm to 20mm |
Standard color | Clear and black |
Operating temperature range | -80°C to 260°C |
Shrink temp | 280 to 320°C |
Very thin wall thickness |
Property:
Test Item | Value |
Material | PTFE |
Color | transparent |
Operating temperature | -80°C~260°C |
Flammability | UL94V-1 |
Shrinking temperature | 280°C-320°C |
Impedance | ≥1018Ω.CM |
Water absorption | ≤0.01% |
Longitudinal shrinkage | 5% |
Tensile strength | >2700psi |
Elongation at break | >200% |
HSTT-1.7X
Size(mm) | I.D. before shrinking (mm) | Average thickness(mm) | I.D. after recovery (mm) | Thickness after full recovery(mm) |
φ0.5 | 0.7±0.2 | 0.10±0.05 | ≤0.40 | 0.15±0.05 |
φ1.0 | 1.0±0.2 | 0.10±0.05 | ≤0.50 | 0.15±0.05 |
φ1.5 | 1.5±0.2 | 0.10±0.05 | ≤0.90 | 0.15±0.05 |
φ2.0 | 2.0±0.2 | 0.10±0.05 | ≤1.30 | 0.15±0.05 |
φ2.5 | 2.5±0.2 | 0.10±0.05 | ≤1.50 | 0.15±0.05 |
φ3.0 | 3.0±0.2 | 0.15±0.05 | ≤1.80 | 0.20±0.05 |
φ3.5 | 3.5±0.2 | 0.15±0.05 | ≤2.0 | 0.20±0.05 |
φ4.0 | 4.0±0.2 | 0.15±0.05 | ≤2.5 | 0.20±0.05 |
φ4.5 | 4.5±0.2 | 0.15±0.05 | ≤2.8 | 0.20±0.05 |
φ5.0 | 5.0±0.3 | 0.15±0.05 | ≤3.0 | 0.20±0.05 |
φ6.0 | 6.0±0.3 | 0.15±0.05 | ≤3.8 | 0.25±0.05 |
φ7.0 | 7.0±0.3 | 0.15±0.05 | ≤4.0 | 0.25±0.05 |
φ8.0 | 8.0±0.3 | 0.15±0.05 | ≤4.8 | 0.25±0.05 |
φ9.0 | 9.0±0.3 | 0.15±0.05 | ≤5.0 | 0.25±0.05 |
HSTT-4X
Size | I.D. before shrinking (mm) | Thickness before shiriking(±0.01) (mm) | I.D. after receovery(mm) |
| |
φ1.5 | 1.5(1/6") | 0.1 | 0.40 | ||
φ2.0 | 2.36(3/32") | 0.12 | 0.50 | ||
φ3.0 | 3.17(1/8") | 0.12 | 0.7 | ||
φ4.5 | 4.77(3/16") | 0.12 | 1.2 | ||
φ6.0 | 6.35(1/4") | 0.12 | 1.5 |
