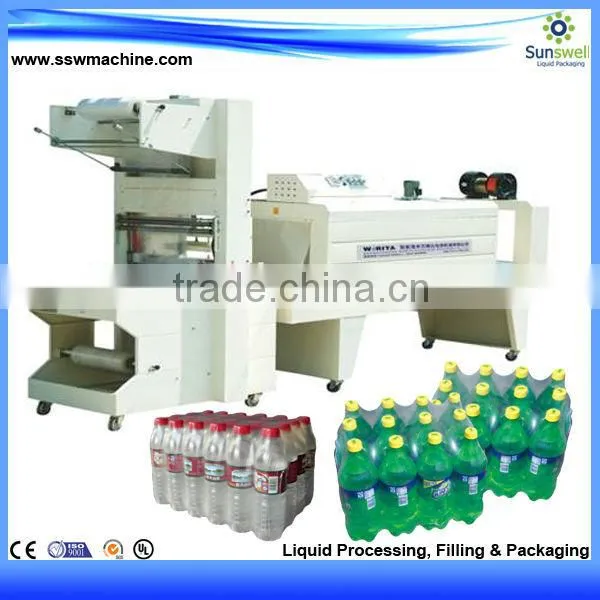

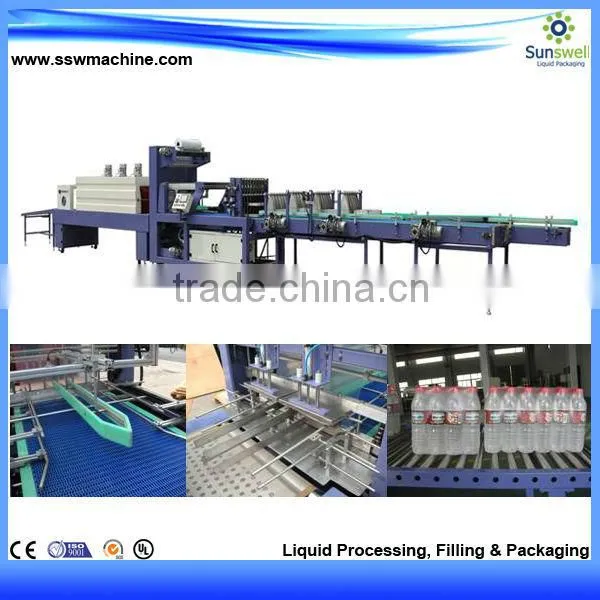

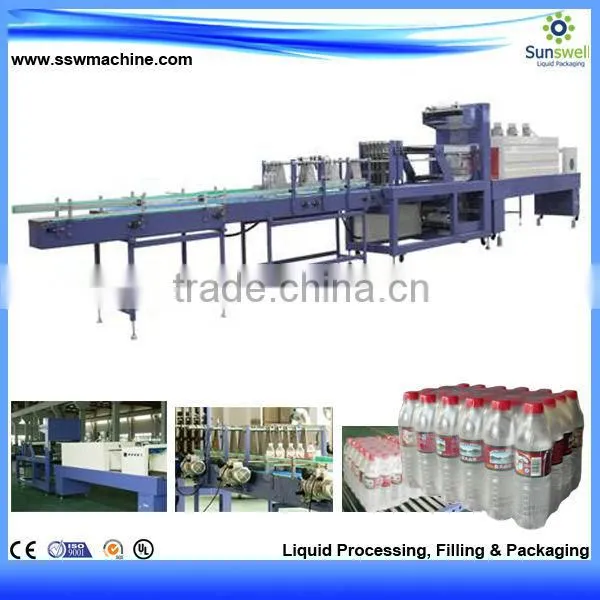

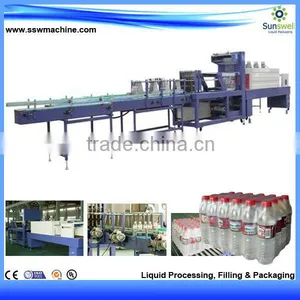

PE Film Shrink Wrapping Machinery for water Packing Machine
1.General description:
Available Range:
All kinds of liquid beverage bottles' group packing which does not need bottom tray. After packing, the products will
become firmer and more good looking.
Characteristics:
1.This Shrink Wrapping Machine adopts imported world famous PLC automatic control. It has stable functions and
precise control.
2.It has automatic functions like conveying materials, unscrambling, shrinking and cooling&design finalizing flow.
3.The film conveying adopts the famous brand transducer and three-layer heat insulation to save resourses.
4.It uses the enhanced cooling and design finalizing passage which can make product packing finalize the design
more quickly and easy to be stored and transported
2.Deatails of each equipment:
·Frequancy control,Secondary bottle transport device.
·The whole set which are push bottle,heat sealing cutting adopt pneumatic structure.
·Inductive switch control film length.
·Touch screen,PLC control system advanced reliability of the equipemtn function.
·Circular wind machine ,resuare well-proportioned temperature of the shrink furnace.
·Strong cooling system can reassure finalize the design quickly.
·Heat-fast Teflon transport net,transport steady,high strength and stand wear and tear.
·Frequancy conversion timing net transportation structure.
·The height of the conveyer belt can be made according to the user,adustable range±50mm
·Bottole transport machine can satisfy the direction of the user,it can prolong and shorten
·Pterygoid stainless iron heating system,durability.
·Satisfy the bear storage rack device of the short duration for the product,
assure consecutive work for the production line.
Canada maintain: 5.7 inch touch screen, PLC control system.(can choose other brand)
·One set Taiwan Airtac pneumatic element
·Three sets Taiwan Taida thansducer
·Twelve pieces stainless and iron pterygoid heating pipe
·Teflon transportation net which are produced by Sino-America cooperation.
·Electrical machine by Shanghai and Beauty coperation ,warm transmission by Zhejiang Taili.
·Korea Ottonix photoelectric switch,proximity switch.
·We can make Heat sealing sword cast aluminium heat appliance specially,well proportioned temperature and long lived.
·Surface of the whole machine are plastic spraying,frame work adopt excellent carbon steel,
the mainstay adopt stainless steel.
·The length of bottle transport machine:2600mm
·Packed with wooden case and winded film seperately.
3.Technical parameter:
| Sealing type | sleeve sealing |
| Power supply | 380V/50-60Hz/3phase |
| Max product size | 420(L)*300(W)*320(H)mm |
| Max Packing capacity | 20 packs per minute |
| Film type | single roll of printed polyethylene(PE) film |
| Max film size | 630(width)*280mm(outer diameter) |
| Power consumption | 20.5kW |
| Tunnel oven size | 1800mm(L), entrance 600(W)*400(H)mm |
| Tunnel conveyor speed | variable,controlled by frequency converter,15m/min |
| Tunnel conveyor | chains with rotating silicon coated rods |
| Working height | 800-850mm |
| Air pressure | ≤0.5MPa(5 bar) |
| P L C | SIEMENS S7 |
| Sealing system | permanently heated seal bar coated with Teflon |
| Operating interface | Eview displayer |
| Machine material | carbon steel |
| Weight | 1050kg |
Please feel free to contact us!
Tel: 0086 512 5850 1665 Web:
