Help CenterSleeve Labeling Machine
US$ 16,000 - 17,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Food
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bottle UnscramblerUS$ 25,000 - 80,000MOQ: 1 Set -
Automatic Bottle UnscramblerUS$ 25,000 - 80,000MOQ: 1 Set
-
PET Bottle UnscramblerUS$ 25,000 - 80,000MOQ: 1 Set
-
Zhangjiagang Sleeve Labeling MachineUS$ 15,000 - 30,000MOQ: 1 Set
-
Automatic Bottle Shrink Sleeve Labeling MachineUS$ 15,000 - 30,000MOQ: 1 Set
Condition
New
Application
Beverage, Chemical, Food
Packaging Type
Case
Packaging Material
Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
Customized
Power
3KW
Place of Origin
Jiangsu, China
Brand Name
Sunswell
Model Number
TB-200
Dimension(L*W*H)
2000*950*2000mm
Weight
1000KG
Certification
CE/SGS/ISO9001
After-sales Service Provided
Engineers available to service machinery overseas

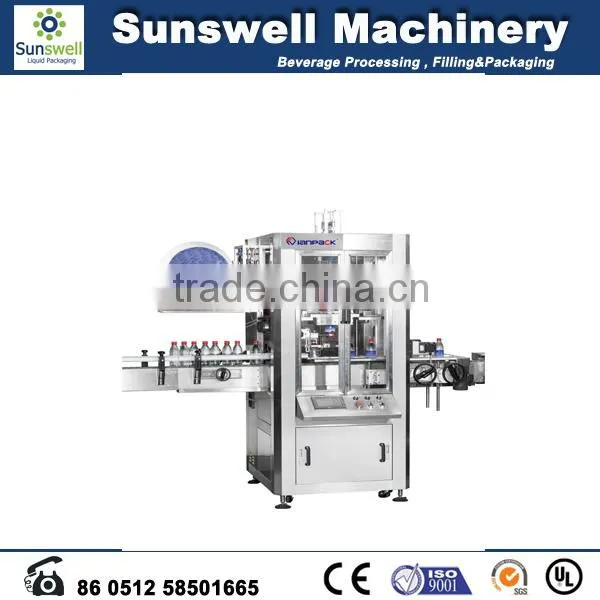

| A. TB-200 Auto. Shrinkable Label Inserting Machine specification | |||||||||
| 1. | Machine size: | 2000L×950W×2000Hmm | |||||||
| 2. | Power supply: | AC 3ψ380V | |||||||
| 3. | Consuming power: | 3 KW | |||||||
| 4. | Machine weight: | 200 KG | |||||||
| 5. | Speed: | 150bottles/minute | |||||||
| 6. | Bottle material: | glass, metal, plastic | |||||||
| 7. | Bottle shape: | round, square, oval and rectangular | |||||||
| 8. | Bottle diameter: | ψ25~ψ110mm | |||||||
| 9. | Bottle height: | 15-150mm | |||||||
| 10. | Bottle flat width: | 48-185mm | |||||||
| 11. | Label material: | PET, PVS, OPS | |||||||
| 12. | Label height: | 28-150mm | |||||||
| 13. | Label thickness: | 0.035-0.13mm | |||||||
| 14. | Bottle type or big-and-small different, must change the center guide or bottle-separating. If bottle diameter big-and-small range is too bigger then you have to change cut unit! | ||||||||

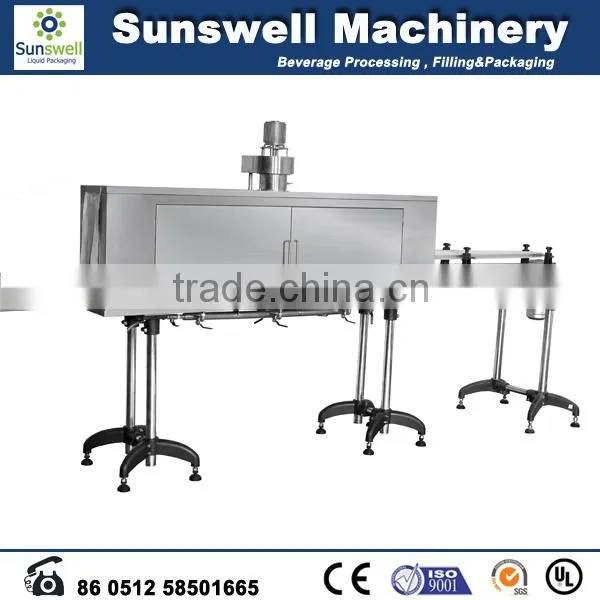

| B. SDL-1500 steam tunnel parameter | ||||||||
| 1. | Tunnel size: | 1500L×570W×(900-1600)Hmm | ||||||
| 2. | Power supply: | AC3ψ380 | ||||||
| 3. | Fan power: | 0.37KW | ||||||
| 4. | Steam pressure: | 0.15-0.4Mpa | ||||||
| 5. | Steam consumption: | 20-100KG | ||||||
| C. DZFZ24KW steam generator | ||||||||
| 1. | Machine size(mm): | 500L×550W×1300H | ||||||
| 2. | Input power: | 24KW/H | ||||||
| 3. | Power supply: | AC 3 Phase 380V | ||||||
| 4. | Steam pressure: | 0.4Mpa | ||||||
| 5. | Vapor generation value: | 32KG/H | ||||||
| E. TB-200 Auto. Shrinkable Label Inserting Machine appliance equiped | |||||||||
| No. | Name | Brand | Brand from | ||||||
| 1. | PLC: | Omron | Japan | ||||||
| 2. | Servo motor drive: | Delta | Taiwan | ||||||
| 3. | Servo motor: | Delta | Taiwan | ||||||
| 4. | Transducer: | Panasonic | Japan | ||||||
| 5. | Sensor: | KEYENCE | Japan | ||||||
| 6. | Touch screen: | Weinview | Taiwan | ||||||
| 7. | Breaker: | Renmin Electron | China | ||||||
| 8. | Fuse: | Renmin Electron | China | ||||||
| 9. | Switch: | Meanwell | Taiwan | ||||||
| 10. | Terminal: | Tend | Taiwan | ||||||
| 11. | Emergency stop: | Schneider | France | ||||||
