Leaf Baler Machine, Baling Press, Bagging Machine

Leaf Baler Machine, Baling Press, Bagging Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Square Baler, Leaf baler machine
Operating Speed:
40-50 bales/h
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Type Other, Square Baler, Leaf baler machine
Operating Speed 40-50 bales/h
Condition New
Place of Origin Shanghai, China
Brand Name JEWEL
Model Number JPW-KT90/KT110/KT140
Application Agriculture, recycling, etc.
Dimension(L*W*H) 3920*2880*1700mm
Weight 3000 kg
Certification CE, ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Leaf baler machine
1. leaf baling machine
2. leaf bagging machine
3. leaf pressing machine
4. CE

Leaf baler machine, baling press, bagging machine



1.PLC control system

3.hydraulic transmission

4.high degree of automation

5.high speed out bag

6.CE certified

7.one year warranty

8.long term after-sales service

9.sells to over the world



It is widely used to compress and pack the rice husk, chopped hay, mineral wool, wood sawdust , wood shaving , corn cob , bagasse ,leaf , and all kinds of smashed material . The compressed package block has uniform outer dimension and the large density and proportion, which is suitable for container transportation.


1.The machine uses PLC control system, hydraulic transmission, horizontal level bagging, out bag with high speed and high yield.

2.The operation is simple, easy to use and high degree of automation, using artificial feeding or automatic feeding conveyor.

3.It is suitable for sawdust, the cotton seed shell, peanut shells husk etc material compression, pression and bagging by one time, convenience for store and reduce the transportation cost.

4.After compressed, easy to remove loose, it can be used in environmental building materials,farmland fertilizer, such as mushroom cultivation and so on.



Parameter

Model

JPW-KT90

JPW-KT110

JPW-KT140

Hydraulic power

  40/50Ton

50/60Ton

60/80Ton

Packaging size(L*W*H)

750*430*310mm

750*430*310mm

750*430*310mm

Feed opening size(L*H)

1000*700mm

1000*700mm

1000*700mm

Packing materials

/hay,mineral wool

  cotton seed,corn cob

/saw dust,wood shavings,corn cob ,rice husk

Capability

1.5-1.8T/hour

2-2.5T/hour

2.5-3T/hour

Voltage(can be customized/)

380V/50Hz

380V/50Hz

380V/50Hz

Power

11KW/15HP

15KW/20HP

18.5KW/25HP

Machine size/(L*W*H)

3920*2880*1700mm

3920*2880*1700mm

3920*2880*1700mm

Weight

2400Kg

2700Kg

3000Kg



Pictures

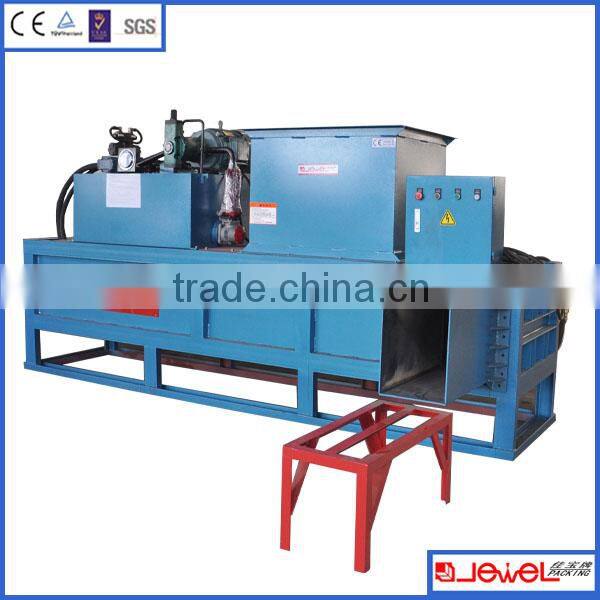

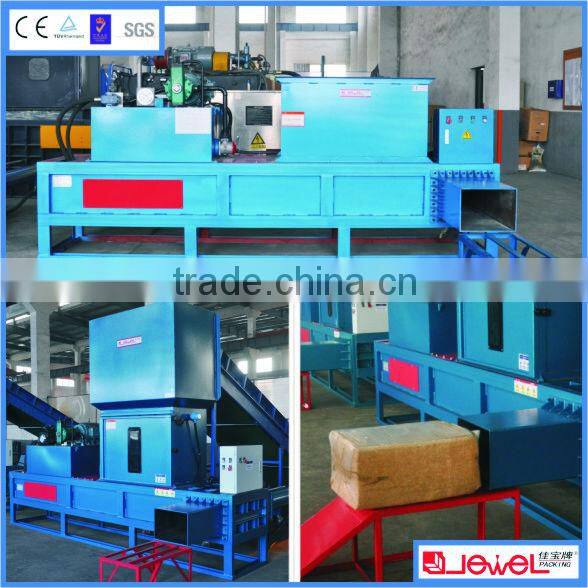

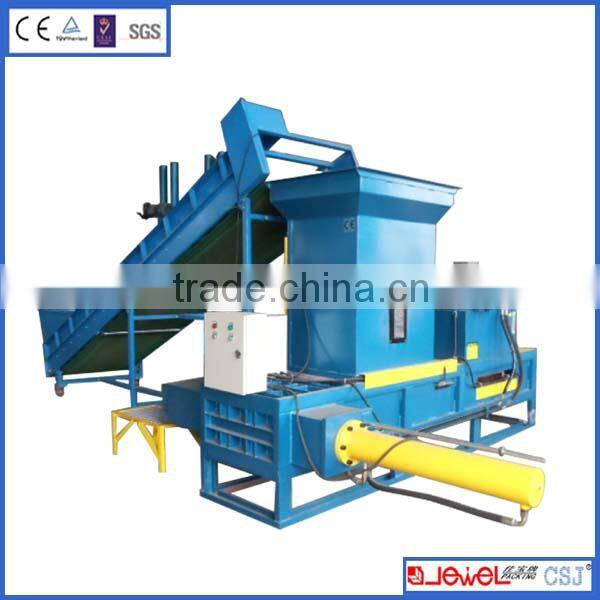

Leaf baler machine, baling press, bagging machineLeaf baler machine, baling press, bagging machineLeaf baler machine, baling press, bagging machine

Leaf baler machine, baling press, bagging machine
