Specifications
1.Auto water filler for still water,pure water,drinking water2.Suitable for PET bottles
3.Capacity:2000-30000BPH
Application:
Auto water filler is widely used in PET bottled still water, pure water, mineral water,drinking water .

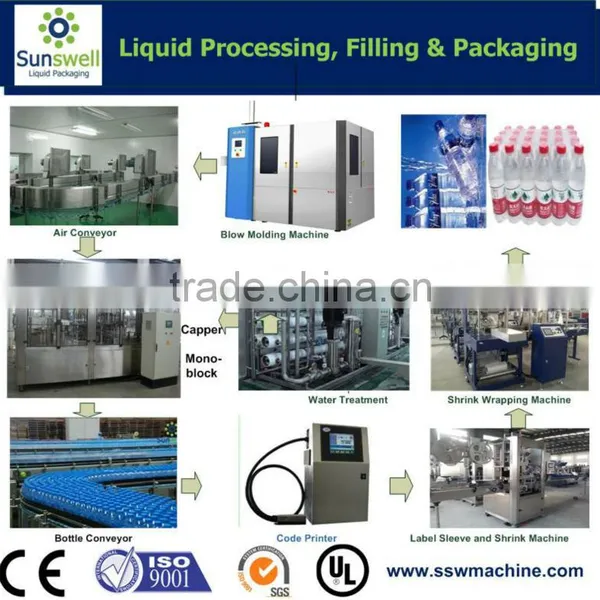

Auto water filler flowchat :
Auto water filler structure :
1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing
pump.
2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.
Auto water filler model :
Model |
Filling Heads |
Capacity @ 500ml |
Bottle Size |
Power |
Dimension(mm) |
Weight(KG) |
CGF8-8-3 |
8 |
2000BPH |
200-2000ml |
2.2KW |
2200×1580×1950 |
1500 |
CGF14-12-5 |
12 |
4000BPH |
200-2000ml |
4.78KW |
2300×1560×1950 |
2000 |
CGF18-18-6 |
18 |
6000BPH |
200-2000ml |
5.03KW |
2750×2000×2300 |
3000 |
CGF24-24-8 |
24 |
9000BPH |
200-2000ml |
6.57KW |
2900×2250×2300 |
4000 |
CGF32-32-10 |
32 |
13000BPH |
200-2000ml |
8.63KW |
3430×2630×2750 |
6500 |
CGF40-40-10 |
40 |
16000BPH |
200-2000ml |
9KW |
4300×2930×2750 |
7800 |
CGF50-50-12 |
50 |
20000BPH |
200-2000ml |
11KW |
5004×3826×2750 |
8200 |
CGF60-60-15 |
60 |
22000BPH |
200-2000ml |
13KW |
5300×3950×2750 |
8500 |
