Specifications

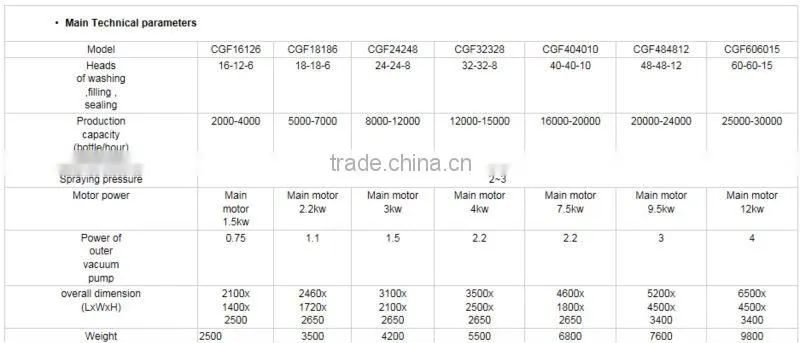

water filter machinery1,Capacity:2000~24000bph
2,Bottle size:330ml~2000ml
3,High efficiency
water filling machinery
water filter machinery

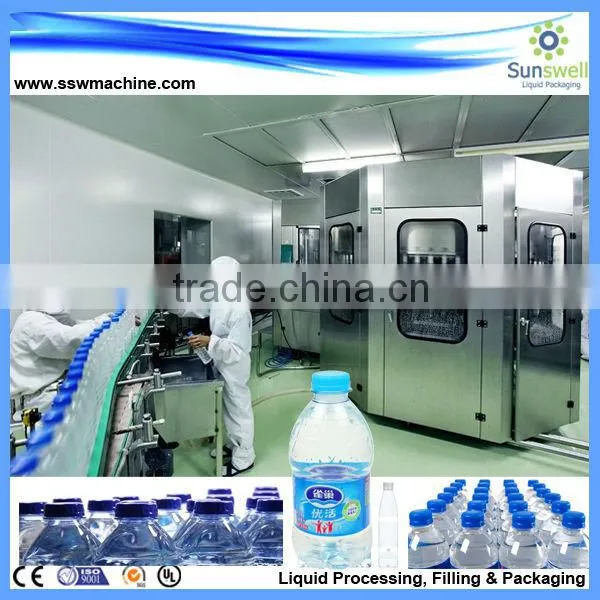

General description:
The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as fruit juice, oil & vinegar,wine,fruit wine, mineral water and pure water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.
water filter machinery

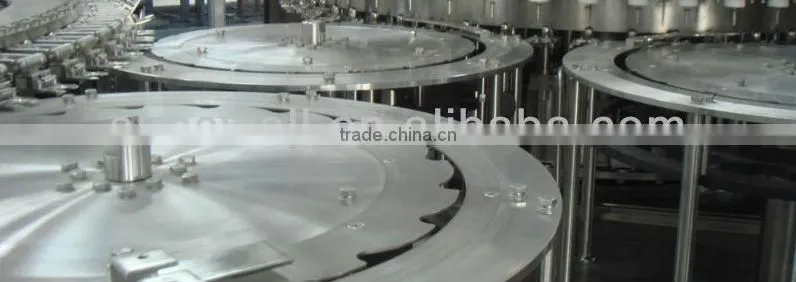

Bottle infeed :
Bottle infeed by combination of infeed starwheels.
Equipped with bottle jam protection device.
water filter machinery

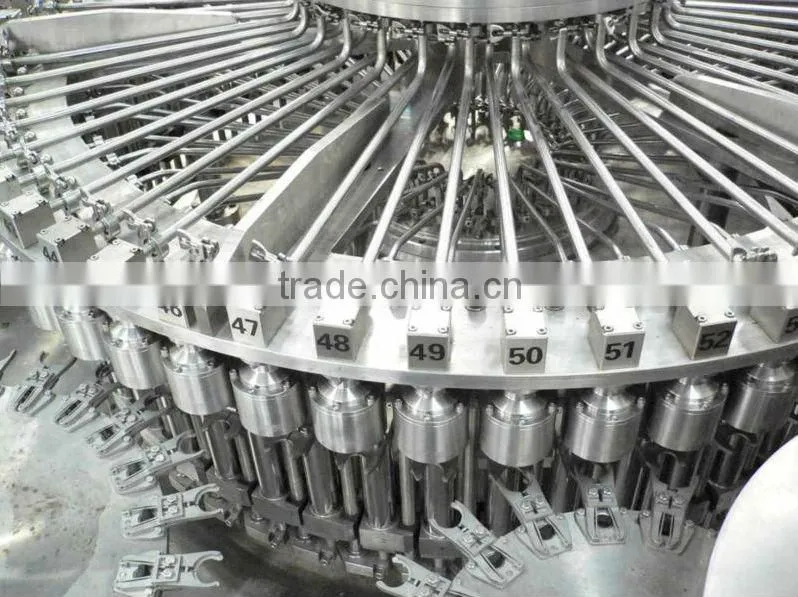

Rinser :
lThe rotary wheel is a fully stainless steel welded structure.
l The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
l The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
l All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
l The rinser is driven by driving system positioned inside machine frame via gear transmission.
l Transfer starwheel
l Made of stainless steel of superior quality.
l Equipped with bottle jam protection device.
water filter machinery

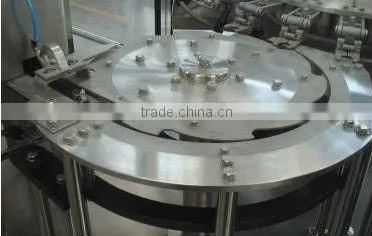

Transfer starwheel :
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.
water filter machinery

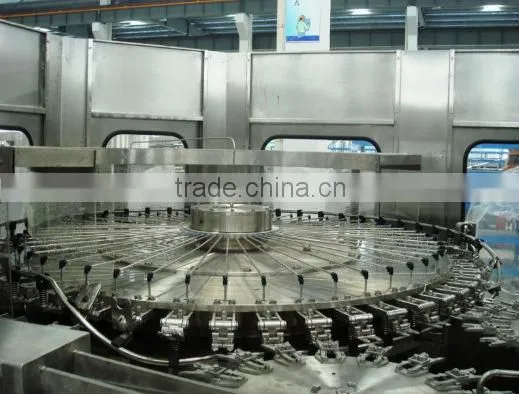

Filler :
lRotary wheel fully made of stainless steel SUS 304.
l Gravity filling method.
l Filling valves are made of SUS316L.
l Filling valves are reasonably structured with accurate filling.
l Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
l Level of cylinder is controlled with float-ball.
l Filler is driven through gears inside the machine frame.
l Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
water filter machinery

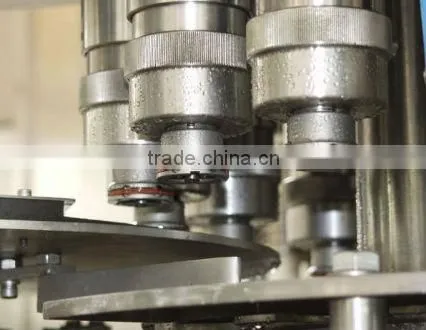

Capper :
Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock. Our capper features as follows:
l The equipment is designed with the support of experts from school of engineering and mechanical in Shanghai Jiao Tong University, and uses the technology of Arol from Italy, most advance technology in the world, developed with the experience of asepsis filling machine. For example, I) extruding wheel (main part to control the stability when sealing), uses the technology of Arol. Kinematical and kinetic design of the wheel by experts improves the stability and credibility of the equipment. II) Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico. Besides the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design is not only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.
l Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
l Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
l The capper is equipped with inlet bottle detection switch.
l Centrifugal way of cap arranging is adopted to reduce damage of caps.
l A cap inspecting system is applied to control on-off of elevator.
water filter machinery
Discharge Starwheel :
lNylon starwheel and conveyor belt work together to discharge bottles.
lEquipped with bottle jam protection device.
Discharge Conveyor
lDriving motor is frequency inverted to synchronize with the filling line to prevent bottles from falling.
lDischarge conveyor is equipped with photocell switch to slow down and stop filling line in case of fallen bottles.
Any questions please feel free to contact me !
