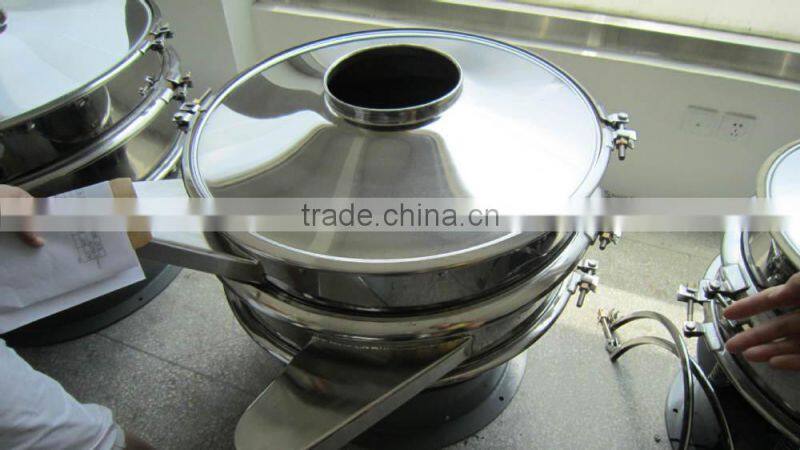

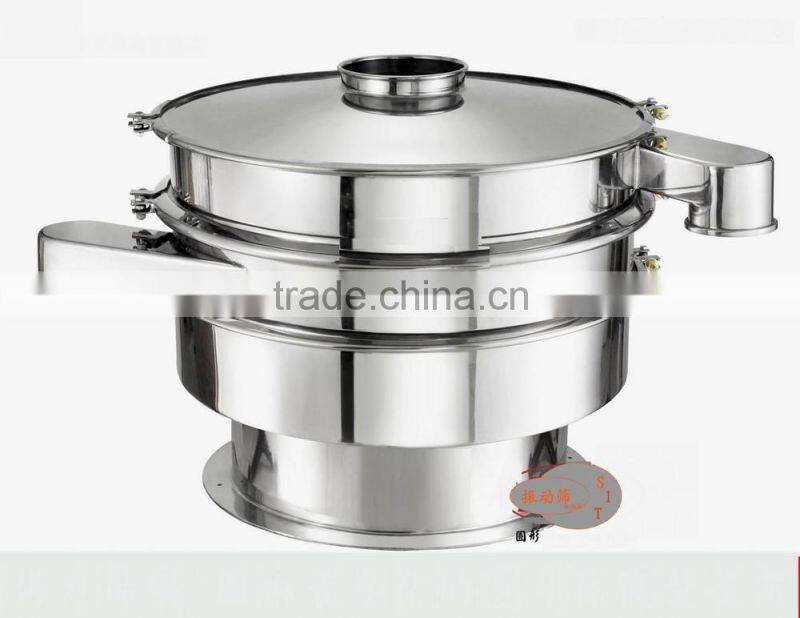

ZS Separating destoner or separating sieve
Introduction
zs series vibrated filter is one of précised powder griddle,Low noise, high efficiency, need only 35 minutes to rapidly replace the griddle, all closed structure. Used to filter particles, powder and mucilage
Principle of the structure
zsseries vibrated griddle: use upright motor as the source of vibration,equipped eccentricity hammer on the both sides of the top and the bottom, change circumrotate to level, upright and slope movement, then pass these three movement to the surface of the griddle. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface griddle
Characteristic
1. High efficiency, refined design, duration,any powders and mucilage are suitable for using.
2. Easily to replace the net, simple operation and convenience washing.
3. Never jam the hole meshwork, no powder flying, filter size of the powder between 500 mesh and 0.028.
4. Discharge the impurity and coarse materials automobile and operates continuously.
5. Unique net flame design, long duration of net, only 3-5 to replace the network.
6. Small volume, move easily.
7. The highest layers of the griddle are about 5 layers. But 3 lagers are suggested.

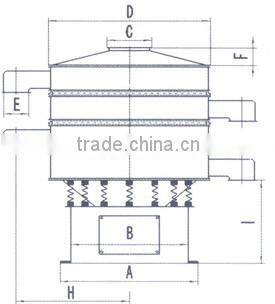

Specification
Model |
ZS-600 |
ZS-800 |
ZS-1000 |
ZS-1200 |
ZS-1500 |
ZS-1800 |
ZS-2000 |
Diameter(mm) |
Φ600 |
Φ800 |
Φ1000 |
Φ1200 |
Φ1500 |
Φ1800 |
Φ2000 |
Effective area(m2) |
0.24 |
0.45 |
0.67 |
1.0 |
1.6 |
2.43 |
3.01 |
Mesh |
2-400 |
||||||
Material size(mm) |
<Φ10 |
<Φ15 |
<Φ20 |
<Φ20 |
<Φ20 |
<Φ30 |
<Φ30 |
Frequency(rpm) |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
Power(Kw) |
0.55 |
0.75 |
1.1 |
1.5 |
2.2 |
3 |
3 |
Height to 1st layer |
605 |
730 |
810 |
970 |
1000 |
1530 |
1725 |
Height to 2nd layer |
705 |
860 |
940 |
1110 |
1150 |
1710 |
1905 |
Height to 3rd layer |
805 |
990 |
1070 |
1250 |
1300 |
1890 |
2085 |
Application industry
1.Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine power.
2.Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce.
3.Metal, metallurgy mining industry; aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyse copper powder, electomagnetism materials, rubbing powder, fire-proof material, kaolin, lime, alumina, heavy calcium carbonate,quartz.
4.Social pollution disposed; disposed oil, disposed water, disposed dye waste water,assistant detergent, active carbon.

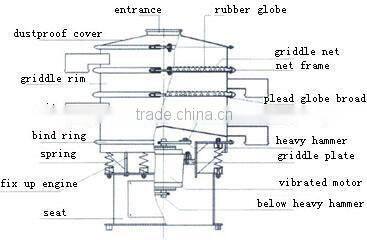

Structures

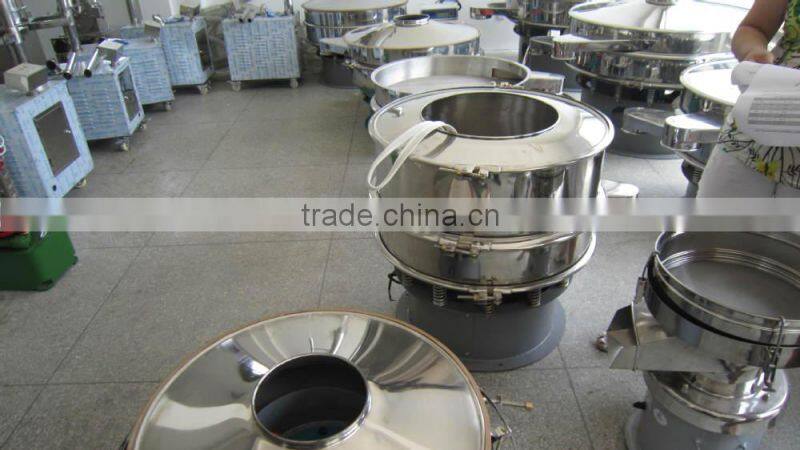

Factory view:
