7" Aluminum Design IPS 1280x800 Camera-top Monitor HDMI SDI Input and Output High Brightness Photography Equipment

7" aluminum design IPS 1280x800 camera-top monitor HDMI SDI input and output high brightness photography equipment

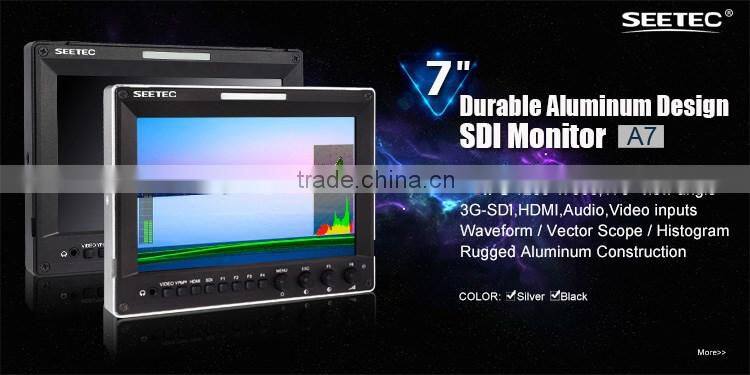

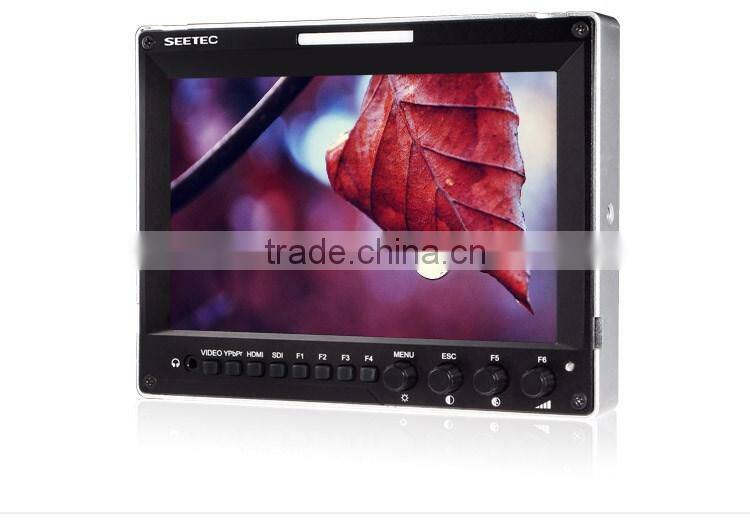

The SEETEC A7 is a portable high resolution on-camera monitor.

1.The A7’s frame is constructed with durable aluminum making it perfect for the professional video shooting,the frame have two color silver and black for optional.

2.It is equipped with IPS panel features a native 1280 x 800 resolution that scales to fit HD image,178° viewing angle without noticeable color or contrast shift.

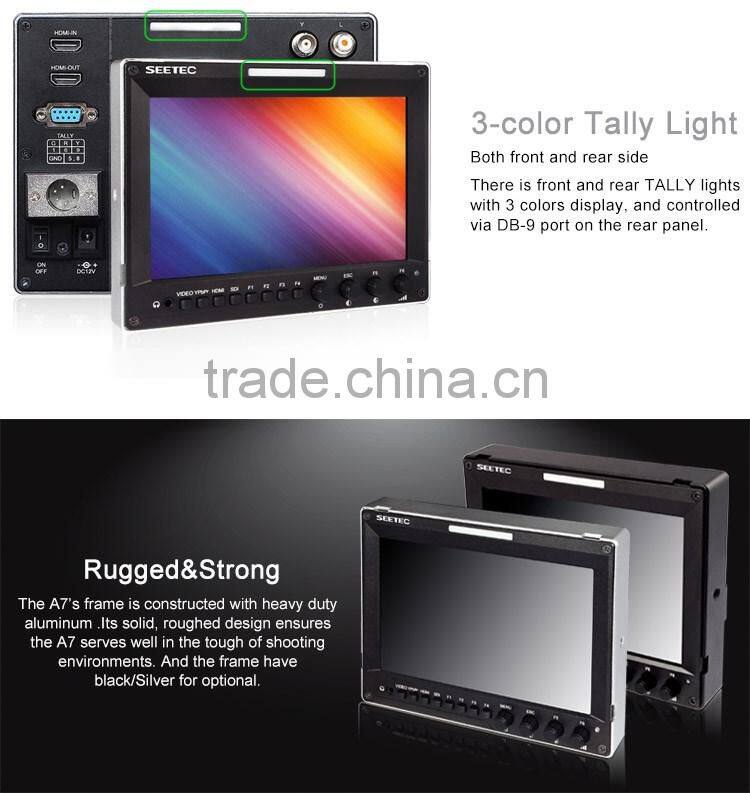

3.Tally Light on the front and rear panel.

4.A7 provides maximum versatility with multiple inputs: HDMI,3G/HD/SD-SDI, YPbPr, Audio(L/R),Video and HDMI,3G/HD/SD-SDI loop-through output ,one 3.5mm earphone output socket.

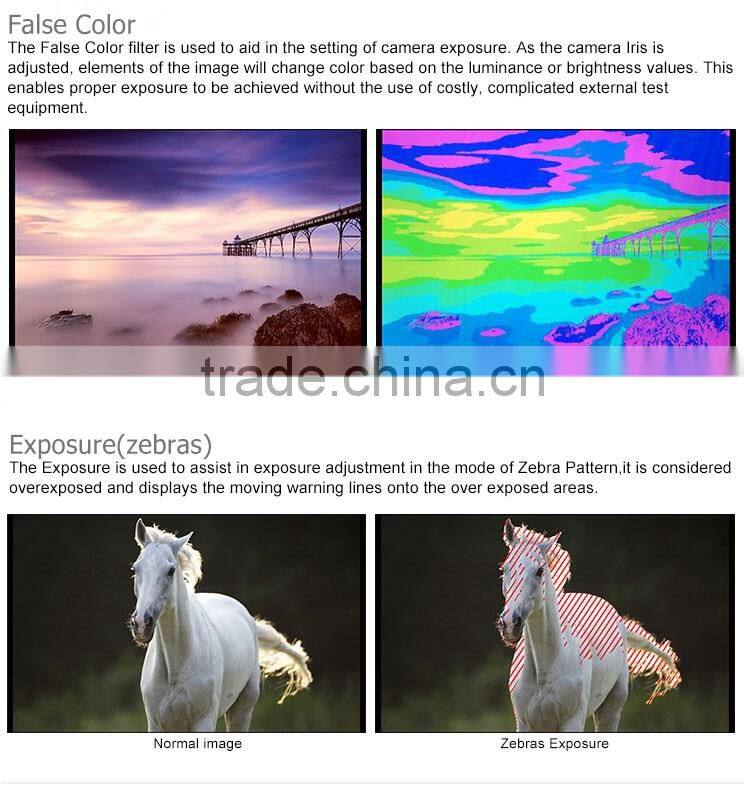

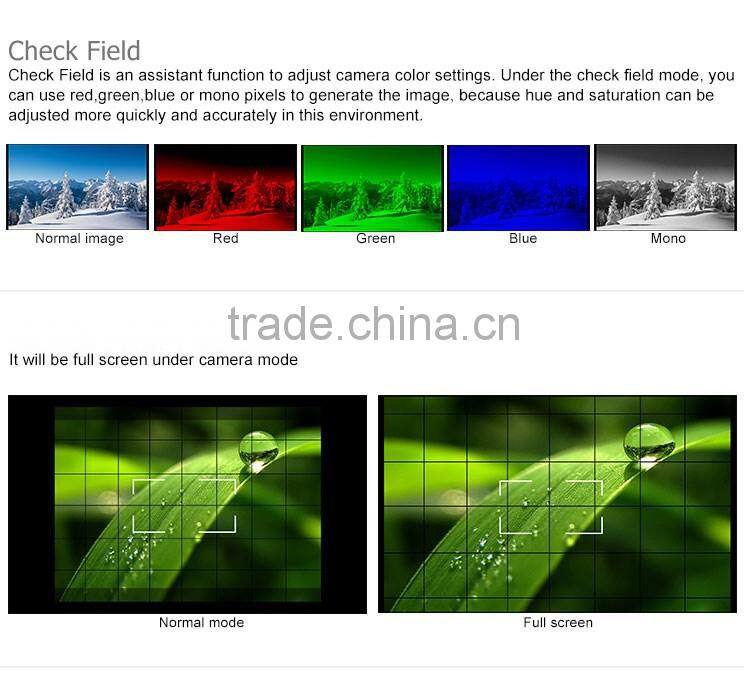

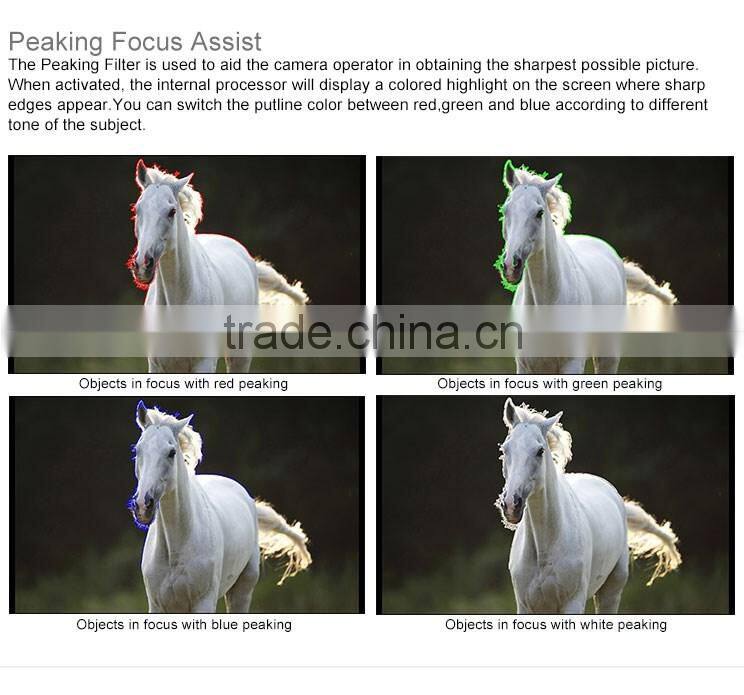

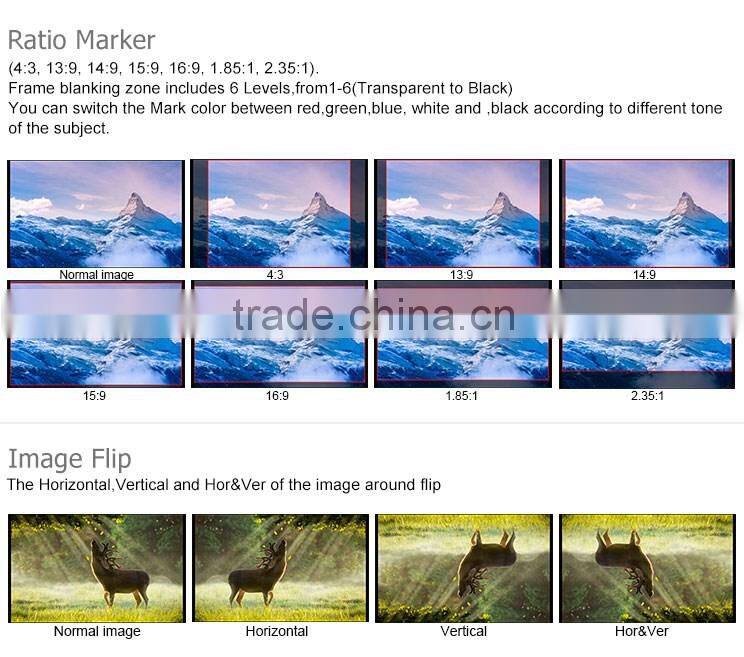

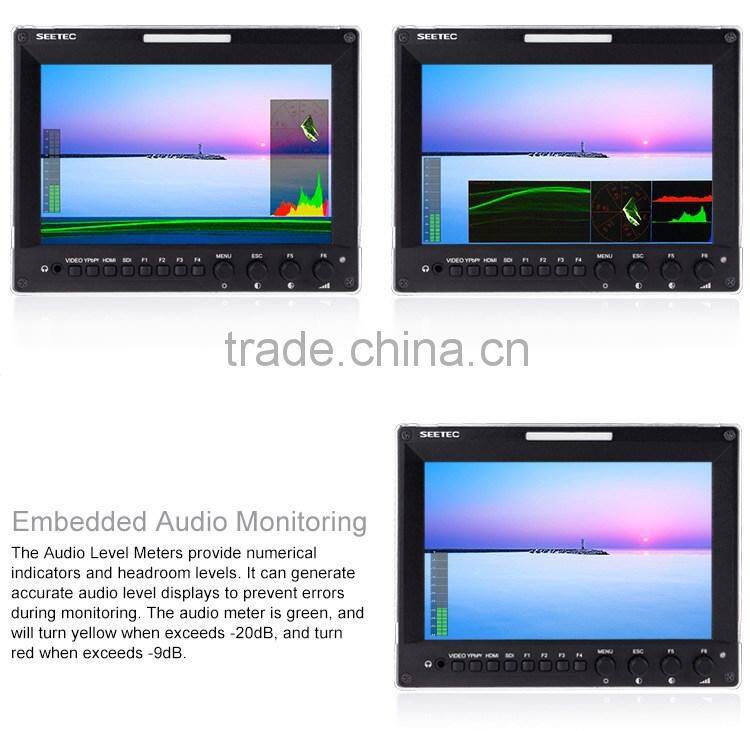

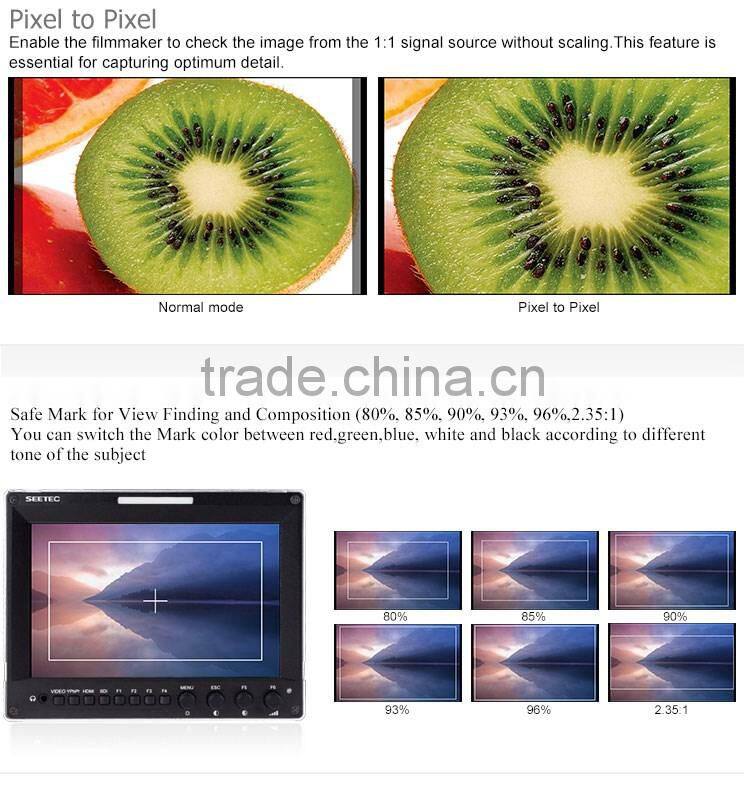

5.The A7 features waveform (Y, Cb, Cr, R, G, B), full waveform, vector scope, RGB histogram, red/green/blue switchable peaking focus assist, embedded audio meter, zebra exposure, false color mode, check field , rotate and flip, pixel to pixel,camera mode, Center&safe marker.

6.It has been designed for camera-top or desktop as portable professional production monitor.

7.The A7 has a flexible battery system that supports F970, D28S ,V Mount and E6 battery plate of your choice.

1280X800 HD IPS Panel

With the A7’s 7-inch 1280 X 800 IPS HD panel what you see is truly what you get!  In addition to the high resolution, the panel features IPS technology that allows for near-perfect viewing angles and deeper, richer, more accurate colors.The A7’s IPS HD Panel is the tool of choice for high quality color reproduction.

Multi-format Input/Output

SDI / HDMI / Audio / Video/YPbPr

A7 monitor supports:

3G/HD/SD-SDI input × 1

3G/HD/SD-SDI loop output × 1

HDMI input × 1

HDMI loop output × 1

Video input × 1

Y input × 1

Pb input × 1

Pr input × 1

Audio(L/R) input

Speaker and Stereo Headphone output

Video Analysis Assistant Pattern

Waveform / Vector scope / Histogram

 A7 supports Waveforms display under both SDI and HDMI, including Y, Cb, Cr, R, G, B channels, and full scale display of each channel. The Vector scope and Histogram(Y/R/G/B/RGB/Tint) can be switched on/off independently to the waveforms. And the Waveform,Vector scope and Histogram can adjust background color,black/translucent.
