GW-6090X series PVC paper screen printer with inclined wall system
Application:
the oblique arm screen printing machine is suitable for printing paper, pvc, pp sheet, flat product with high precision
Function:
1.Oblique arm structure, The forward/backward action of printing head is drived by electromotion
2.SCM controlled circuit,printing and screen plate up/down adopts independent driver source
3.Frequency conversion motor drives printing knife rest,magic eye controls strock distance,independent adjustment
4.There are average air intakes on high -hardness Worktable,
5.Power vacuum adsorption,make sure accurate color registration
6.There are three kinds of models,such as manual.semi-automatic and full-antomatic,printing indirect time is conrolled by figure
7.independently designing machine head up/down equipment,it is convenient to replace scraper,ink covering blades and frame and easy to clean screen frame
8.Double guide rod left/right screen arm,and equipt plate distance ,adjustale equipment,easily adjust
Collocate introduction:
1.machine control adopts Germany Philips PNX SCM controller,control plate
with button
2.Circuit adopts Japan OMRON relay,China CHNT AC Electromagnetic Contactor
and Taiwan RIKO photocell eye switch
3.Printing adopts Taiwan ABBA linearity slide rail and Chenggang gear
decelerate motor,Danmark HOLIP tansducer printing drive
4.Printing scraper and ink covering blades adopts Italy EASUN
pneumatic component control
5.Printing worktable adopts special structure and special material.
Technical parameter:
Max.printing area:600*900mm
table size:900*1000mm
Max.screen frame:1100*1200mm
Max.thickness of workpiece:0-20mm
Max.printing speed:1000PCS/Hr
Air pressure: 6-7bar
Power:380V 0.5KW

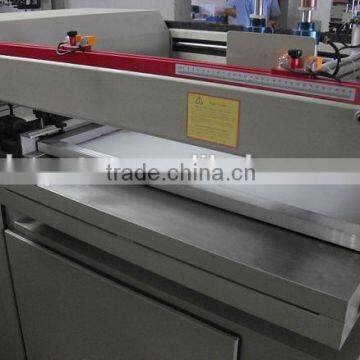

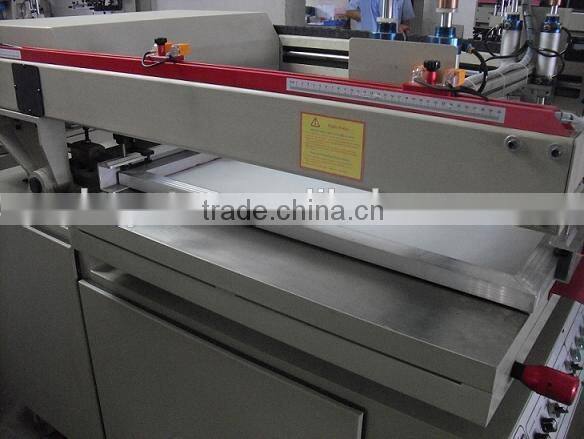

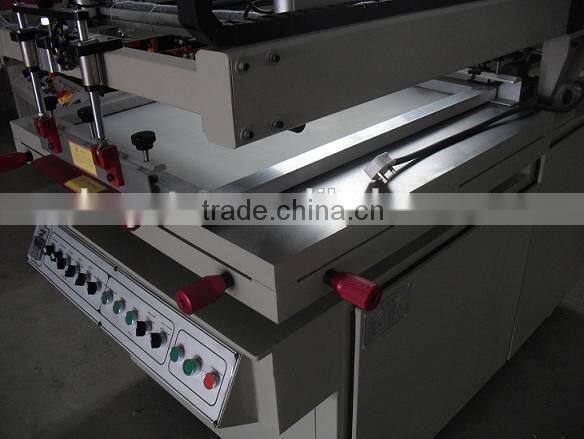

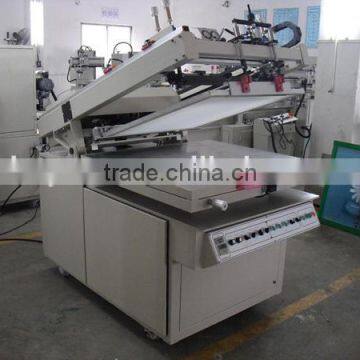

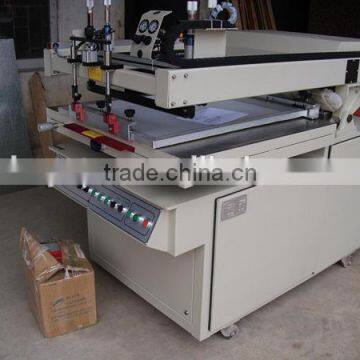

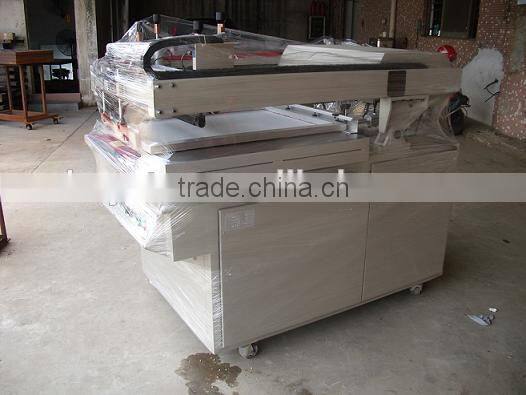

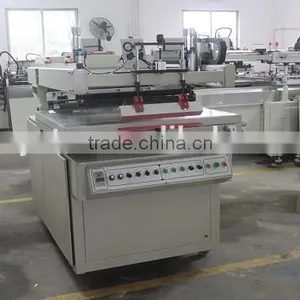

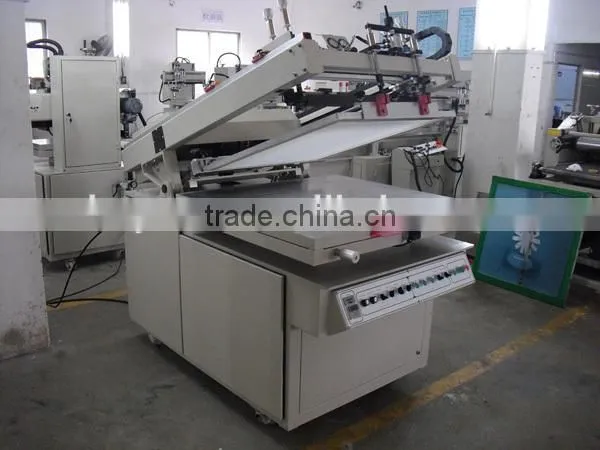

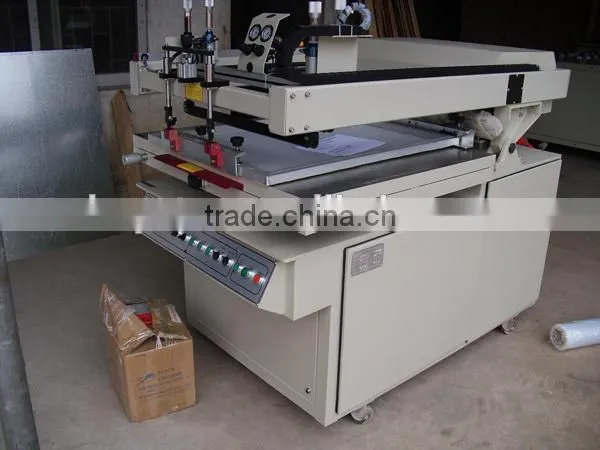

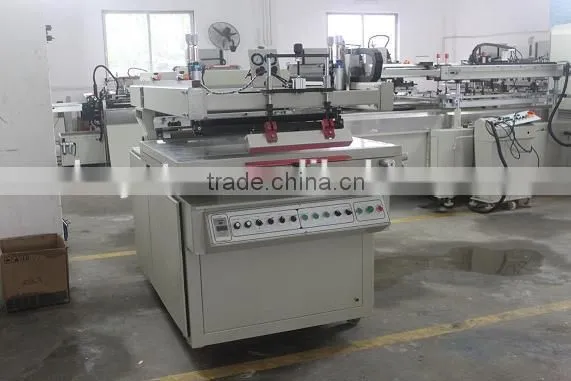

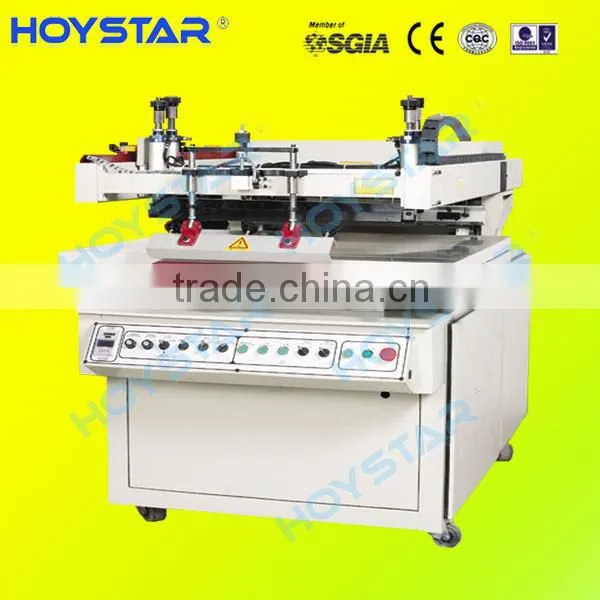

Machine pictures:
