GW-100140 Large Format Glass Flat Screen Printing Machine Price

GW-100140 Large Format Glass Flat Screen Printing Machine Price photo-1
GW-100140 Large Format Glass Flat Screen Printing Machine Price photo-2
GW-100140 Large Format Glass Flat Screen Printing Machine Price photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Hoystar
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Guangdong, China
Brand Name Hoystar
Model Number GW-100140
Usage Card Printer, Label Printer, Paper Printer, Other, Card Printer, Label Printer, Paper Printer, GW-100140 large format glass screen printing machine.
Automatic Grade Semi-Automatic
Voltage 380V
Gross Power 3KW
Dimensions(L*W*H) 2000*1500*1200mm
Weight 1000kgs
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

GW-100140 large format glass flat screen printing machine price

Application:

It is suitable for printing different material flat items special precision items.Such as electric board,circuit board,metal board,aluminum sheet,pvc card,pp/pe/pc/pet/pvc film,el panel,glass,ceramic tile,textile,traffic/road signage,car sticker........and so on



Advantages:

1.Four columns lifting and dropping structure,

2.Motor drive screen plate to lift,and also manual adjust the lifting of the screen plate height.

3.Platform sliding in and out,linear guidance.

4.Printing head driven by motor,guide by linear guidance.Printing speed and printing travel are adjustable.

5.Stainless steel platform with vacuum absorbing,and equipped register micro-adjustment.

6.Printing angle/printing pressure/screen spacing are convenient to adjust.

7.Safety guard for safety operation.

8.Loading by artificial,automatic precise positioning,automatic printing.Easy operation,quality assurance.

9.Conveyor belt has anti-skid device,smooth transmission, low noise, long life,easy to install and maintain

10.The machine is controlled by Japan mitsubishi PLC and touch screen control panel 11.Automatic positioning,adopts multi-point positioning to ensure various shapes of products precision.

12.Pressure is equilibria to make sure printing to be uniformity .

13.Pneumatic off-grid system,off-grid height can be adjusted to meet printing speed 14.Screen frame has slightly adjustment function

15.Printing driving system adopts import linear guide and synchronous belt,running is steady,frequency conversion stepless speed regulation

16.Worktable is vacuum to make sure high precise printing

17.Printing scraper,ink-reclaiming blade using Japan SMC sword pneumatic components control.

18.It with auto alarming system and perimeter security protect switch to ensure safety in production.



Technical Parameter:

1.Max printing area:1000*1400mm

2.Max screen frame size:1300*1700mm

3.Worktable size:1100*1500mm

4.Max printing work piece height:20mm

5.Power: 380V

6.Air pressure: 5-7 bar

7.Max print color: Single color

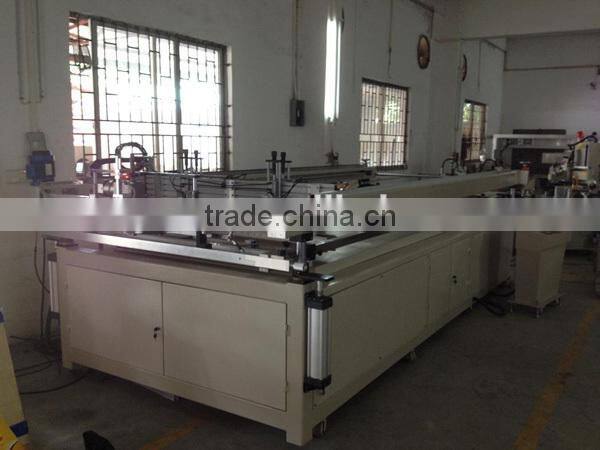

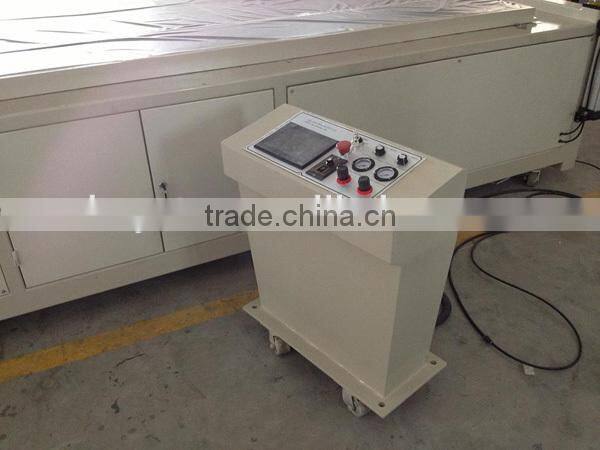

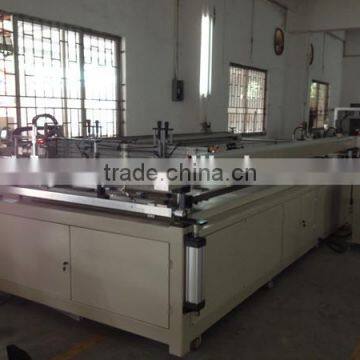

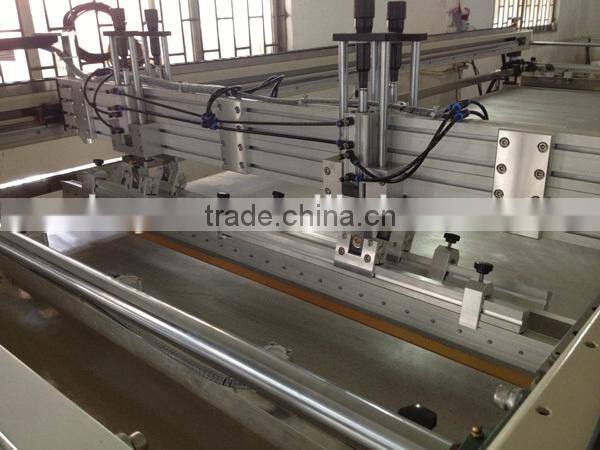

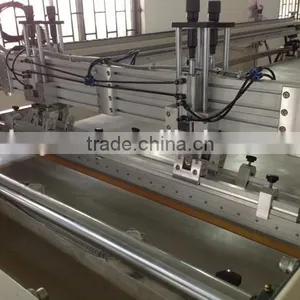

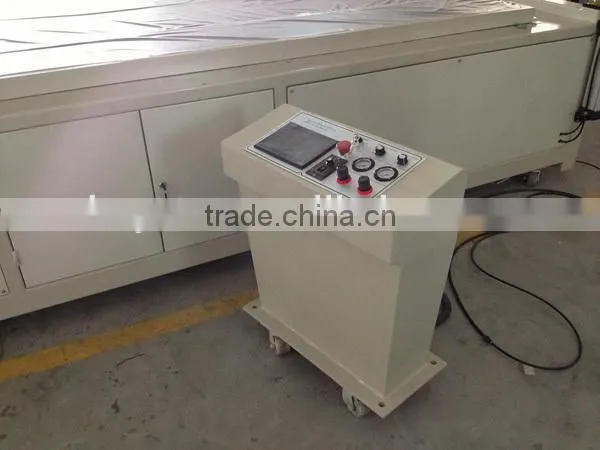

Machine pictures:

GW-100140 large format glass flat screen printing machine price



GW-100140 large format glass flat screen printing machine price



GW-100140 large format glass flat screen printing machine price
