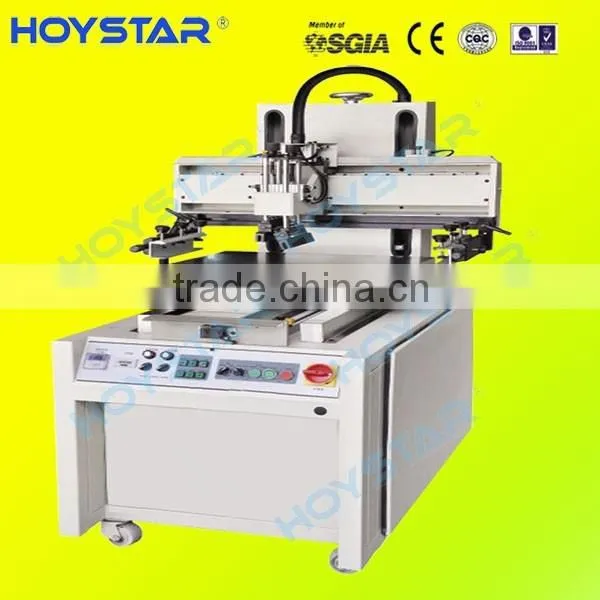

Semi-automatic flatbed screen printer with worktable shuttle/vacuum table screen printer GW-3050P
Application:
It is suitable for printing different materials flat surface items such as pvc card,pe/pet/pc film,panel,aluminum sheet/box,glass,textile mouse pad,paper bag,pu school bag,textile environmental bag,CD/DVD coating,ceramic tile,computer keyboard,metal sheet,arylic board,PCB board,circuit plate,sticker....etc
Technical Parameter:
Max printing area: 300*500mm
Max worktable size:400*600mm
Max printing speed: 800-1200pcs/hour
Air pressure: 5-7bar
Power: 220V 50HZ 35W
Max print products thickness: 0-20mm
Machine size: 1100*1040*1550mm
Stroke of printing head up/down,left/right: by pneumatic cylinders
Machine weight: 240KG
Advantages:
1. Machine vertical structure with wheels on bottom of machine,easy to move
2. PLC program controller,high precision

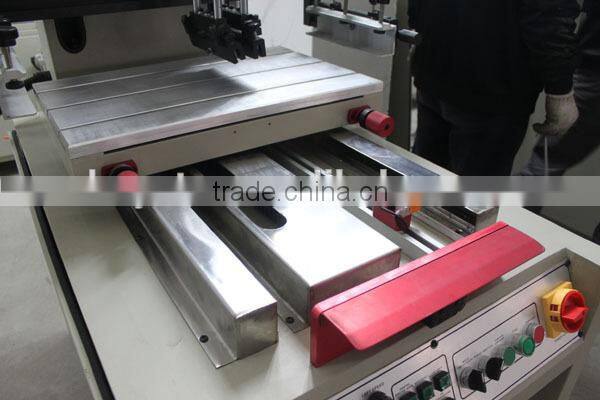

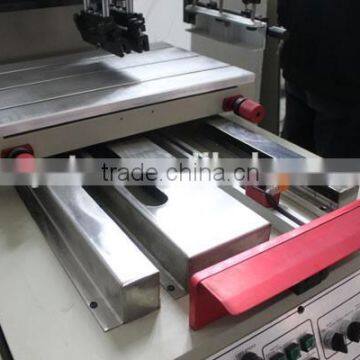

3. T-slot moving worktable,can move from front/back,easy to loading/unloading products and high speed
4. Pneumatic cylinders control printing stroke,low noise
4. Machine cover adopts strong metal with coating.
5. Machine moving device with high wear resistance

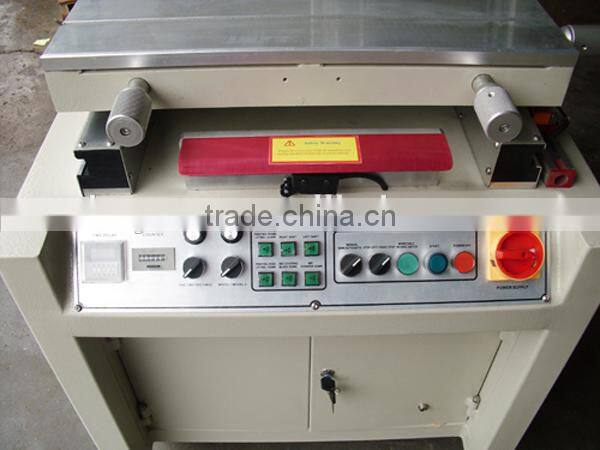

6. Digital panel operate machine function,easy to operate.
Features:
1. vertical structure,screen frame vertical take-off and landing
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. this machine adopts linear guiding rail
4. PLC controlled circuit
5. The T-slot worktable can be moved front and back,easy to operate .
6. The worktable can be adjusted slightly on X.Y,Z direction
7. There are three kinds of models,such as manual.semi-automatic and full-antomatic
8. printing head can be lifted up, that is convenient to take-out/in the screen frame
9. installing emergency stop button on work-table, avoiding to injury hands
10.The machine is running fastly,it is steady and low voiceApplication of manual screen printer
Remarks:
Warrantee: 1 year.
Payment: 30% deposit in advance. The balance against the machine is ready.
Training: Manual or CD or you can come to visit our factory for free of charge to training.
Mini order: 1 pieces
Delivery Time: 3-7workdays when receive your payment.
Business Item: FOB/ CIF/ CFR/ EXW

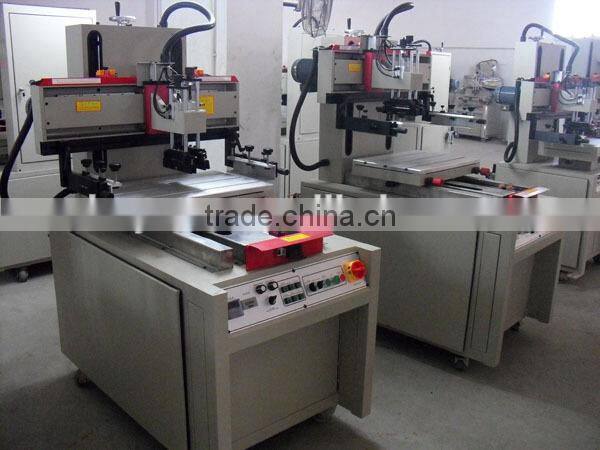

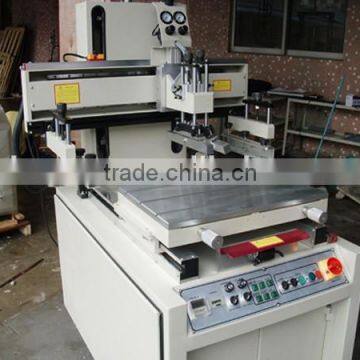

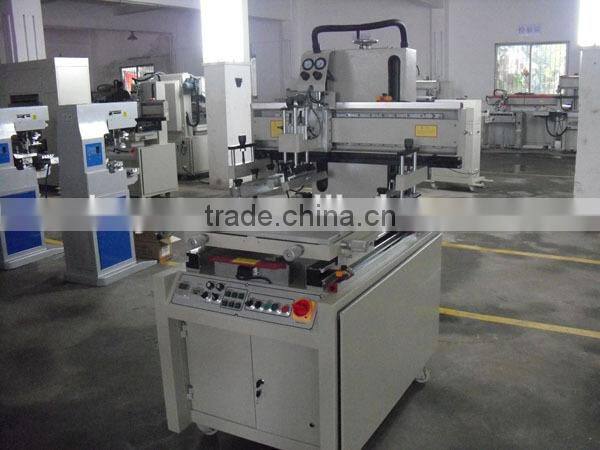

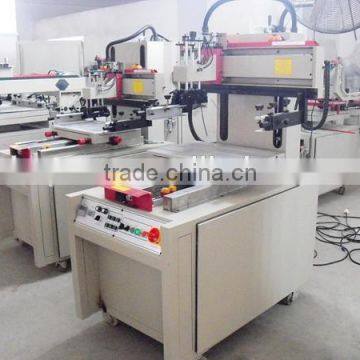

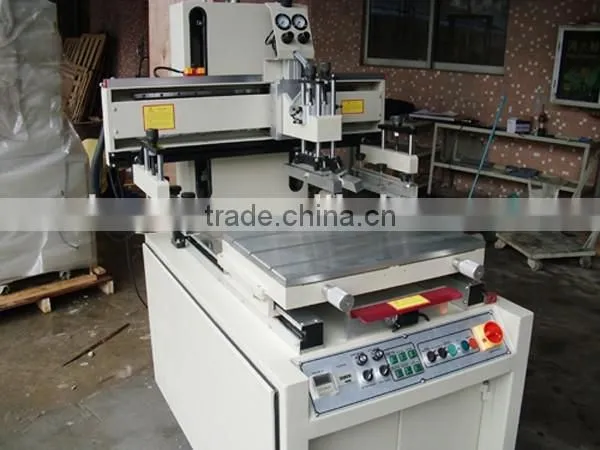

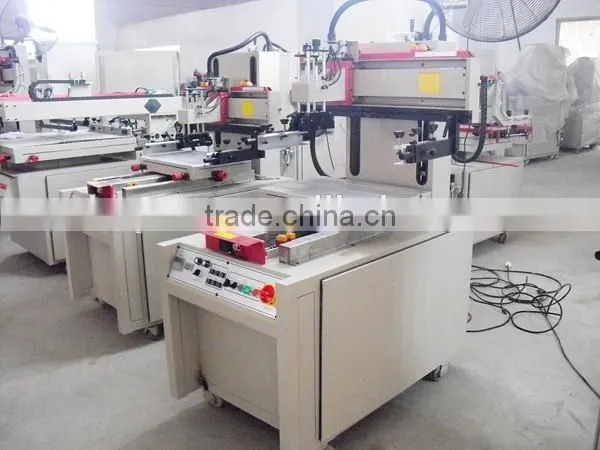

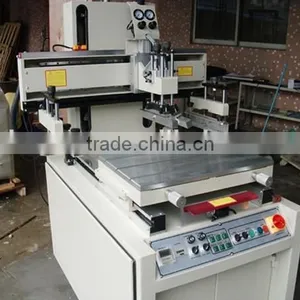

Actual machine pictures:
