Semi Automatic Silk Screen Printing Machine For Sale GW-6090A
Application:
It is a big size vertical flat screen printing machine, adopting distyle constructure, double conversion system, operating fastly and steadly. It is suitable for printing PVC, high precision circuit plates, PT board, acrylic board and high precision screen printing within printing area 600*900mm
Function:
1. controlling machine by Philips NXP programming controller
2. Auto 4-digit counter built-in
3. vertical constructure, the screen frame lift up and down verticaly by electricity, driving transversa stroke of printing head left and right action by imported linear slide
4. printing and screen frame up and down are drived independently
5. controlling printing blade up and down by transducer system, controlling stroke by photocell eye, adjusing independently
6. kinds of printing cycle designed by printing action, you can be free to choose according to your printing craftwork.
7. setting up three types, manual, semi-automatic, fully automatic. When printing is indirect, it will be controlled by digital
8. finished and high-strength hard work-table with even suctionhole and high vacsorb, that can make sure overprinting accuratelly.
9. unique designed machine head up and down equipment, it is convenient to clean scraper, raclaim blade, screen frame
10. double guide pole controlling screen arm, installing the device for adjusting screen distance, regulated conveniently
11. installing scramming device on work-table, it accord with safty standard
Technical parameter:
1.Max.printing area:600*900mm
2.Max.printing speed:1000PCS/Hr 3.Power:380V/50HZ
4.Air pressure:5-7bar
5.Worktable size:700*1100MM
piece height:0-20mm
7.Number of Color: single color

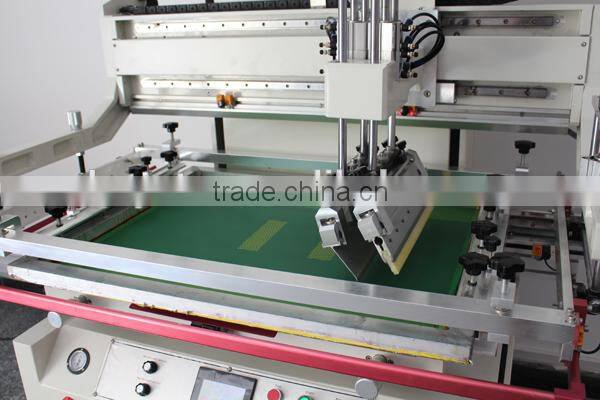

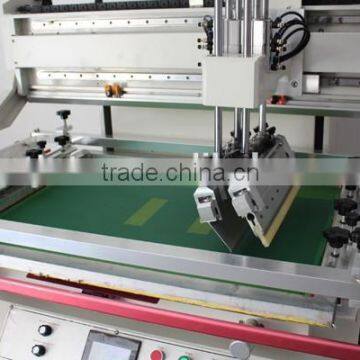

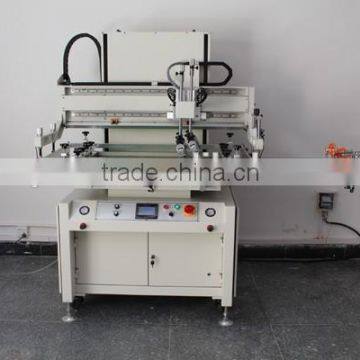

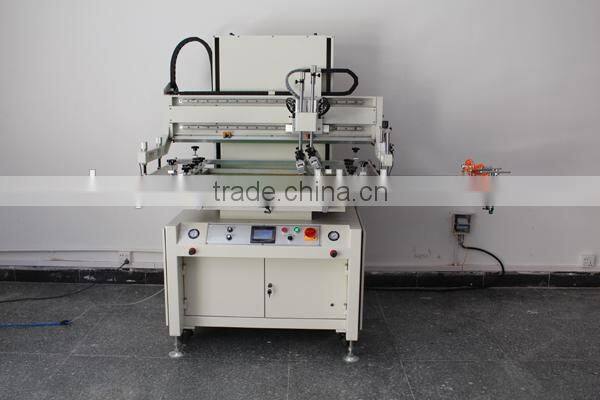

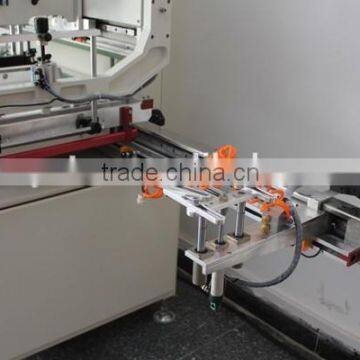

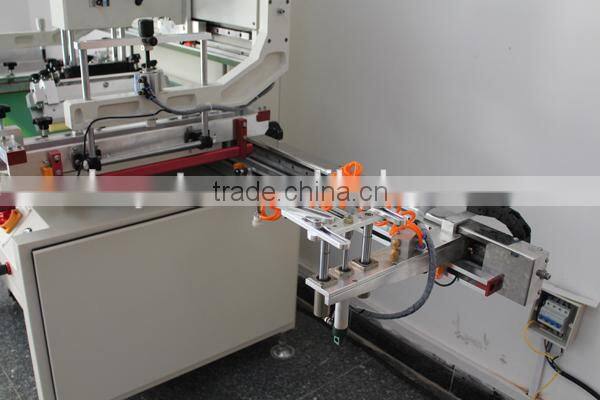

Machine picture:
