Shenzhen Branded Vertival Tripod Turnstile with CE ROSH Turnstile Security System
Tripod Turnstiles systems provide effective means for pedestrian flow control at entrances of production facilities, administrative buildings, company offices, schools, university campuses, stadiums, leisure and fitness facilities, amusement parks and zoos, shopping outlets.

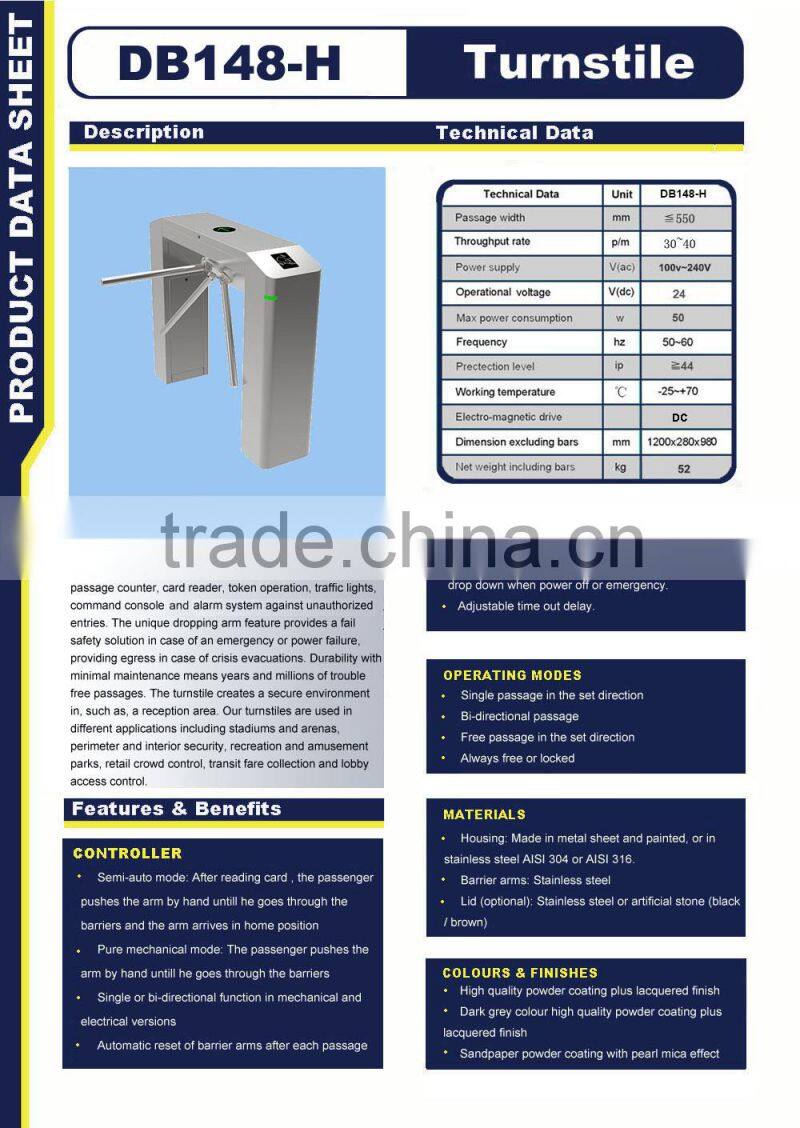

Information on Access Control Tripod Turnstile:
Technical Data |
DB148-H |
Passage width |
≤ 550mm |
Throughput rate |
40p/m |
Power supply |
220~240v |
Operational voltage |
24v |
Max power consumption |
120w |
Frequency |
50~60hz |
Prectection level |
44ip |
Working temperature |
-25~70°C |
Electro-magnetic drive |
DC |
Dimension |
1200x280x980mm |
Net weight |
87kg |

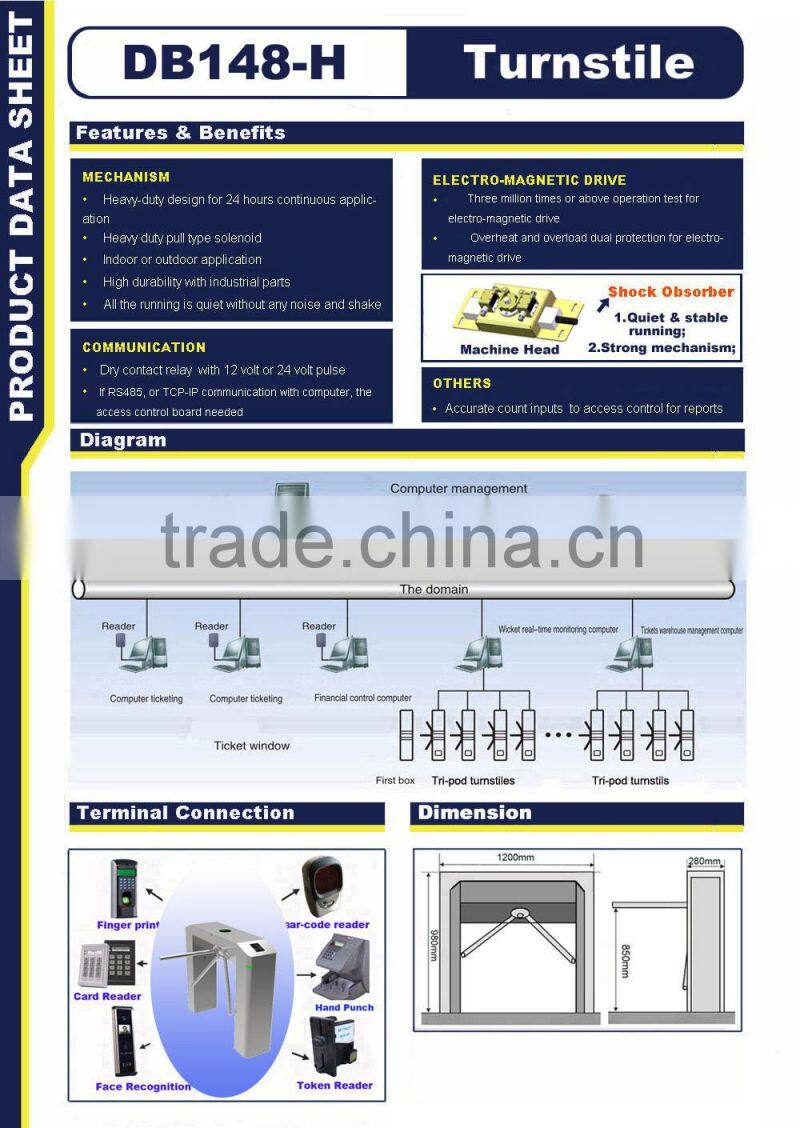

Features of our Turnstile:
1.Incorporating advanced hydraulic kinetic buffering technology to ensure fast and smooth operation.
2.Equipped with standard input/output signal interface, can be integrated with all types of access control panel, offering complete entrance control solutions.
3.Equipped with LED directional indication / status lights.
4.Equipped with mechanical Fail-Safe mode. In the case of power failure, the Tripod arms can be triggered to drop automatically to ensure unblocked access.
5.The positive action lock also helps in preventing two passage at one time.
6.Anti-Illegal Entry with forced rotation feature which can withstand force of up to 80kg.
7.Unique tripod design ensures safe and reliable operation. Highly durable design ensures life span more than 5 million cycles.
8.When the turnstile arms have rotated for more than 60 degrees, the mechanical override will be activated automatically to prevent tailgating.
9.The emergency button which can ensure unblocked access is available.
Packing:
Shipping ways:
Payment terms:
1. western union
2. T/T
3. Paypal
Return and Warranty:
Our company products are guaranteed for one year, from date of sale providing free maintenance based on not being damaged by any man-made.
♦ During the warranty period, all faults caused by the product itself can be maintained for free.
Please carry the filled warranty card and the purchase invoice to the authorized service centers across the country or retun the machine to our company for freerepair.
♦ Within the period of free maintenance, faults or damages caused by mane-made or natural disasters can be maintained with additional charge.
♦ Over the period of free maintenance, faults or damages can be maintained with additional charge.
The following conditions are not under warranty:
♦ Damages caused by abnormal operation, man-made or naturaldisasters;
Note: The warranty card and purchase invoice are used as warranty certificates to maintain the machine. Please reserve them carefully.
Project Case:
♦ Bus station (Vietnam) ♦ Factory (Indonesia)
♦ Company (Thailand) ♦ Colledge (England)
♦ Factory (Philippines) ♦ District (Malaysia)
Why choose RHT as your ideal suppliers?
ShenZhen Ruihongtai Security Technology Co., Ltd is located in ShenZhen city, has full experience in the EAS/Turnstile industry, with a strong technical team, followed by the international leading technology, be able to provide customers with best quality products and good service.Our Products have been widely used in the Middle East,Southeast Asia,Europe,North Africa and other countries and regions.We have passed the CE,RoHS and other certification.We have a professional installation team,so we can help to supply the installation instructions.
1.Are you a factory or trading company?
A:We are a RF&AM EAS System and Turnstile factory.and we are manufacturer with more than 20 years in EAS field.customized products is allowed.
2.How to testing the Turnstile Barrier Gate?
♦ Check the wiring
When connected power debugging, please check the wiring diagram according to each parts of the line is connected.
Note: protective earth wire of equipment must reliable grounding,otherwise don't allow debugging.
♦ Function test
◊ Turnstile actually pick two way signal (come in and out ).
◊ If the installation has LED indicator light on the surface, if the control PCB board receive the legitimate signal, turnstile will have green arrows in the direction.
3.What's your Advantages?
♦ Laser cutting ♦ Digital punch machine (control press)
♦ Digital grooving♦ Digital bending machine(press brake)
Welcome to visit us
