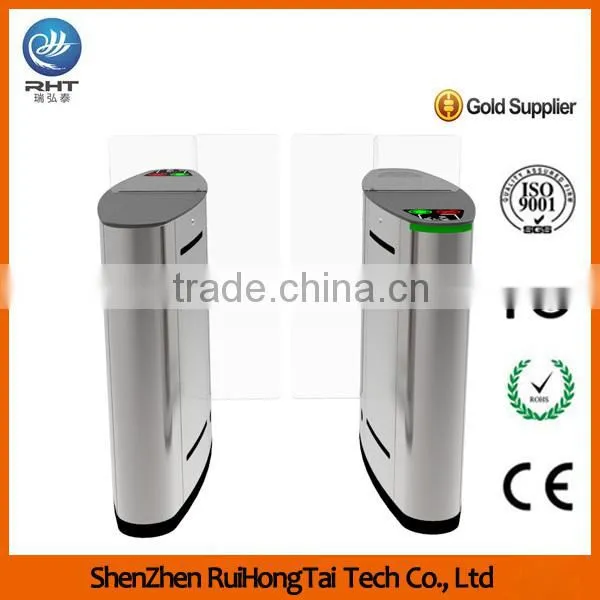

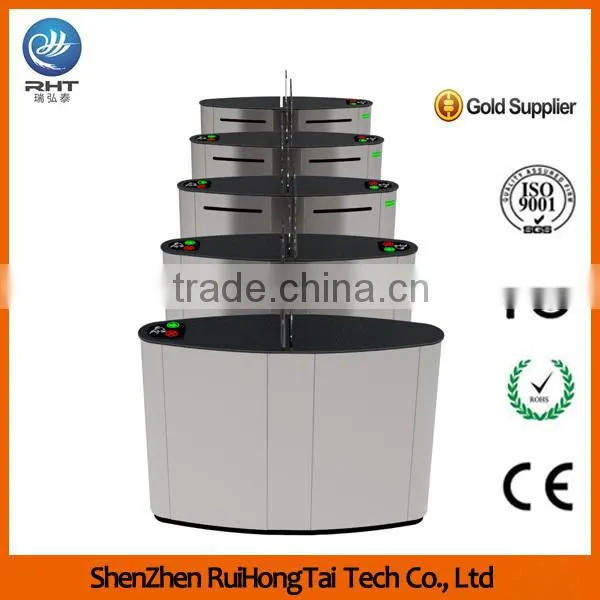

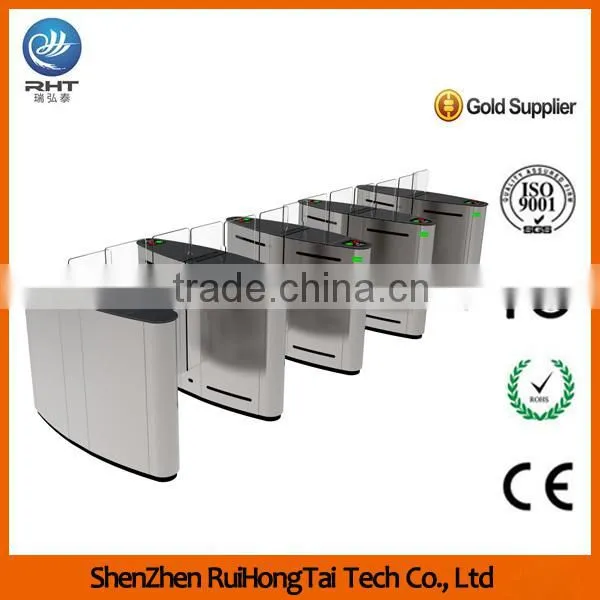

Access Controller Sliding Gate,ID Card Reader Turnstile Gate,Sliding Gate
Feature of the Sliding Gate:
1. Smart card reader compatible with a variety of card such as IC and ID card.
2.can be expanded to automatic identification system, realizing function of access control,Pedestrian flow control, attendance check or fare collection.
3.Equipped with international standard electrical interface, can be easily integrated with other
R/W device, also can be controlled and management through remote supervision computer
4.Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating Attempts, together with anti-strike function to protect pedestrian
5.LED gate direction indicator that displays the current operational state to pedestrian. Green Arrow for entry free, Red Cross for passage locked.
6.Can open the turnstile by two input signals (signals can be input by access controller, button or
Other equipments)
7.Provide audible sound prompt and information display function.
8.The flaps will open automatically during power interruption and recover N/C mode after power on (optional)
unting function. Flap closes after passing N pedestrians continuously by swiping card N times
Correspondingly (N<=16) (optional)
10.Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction
After reading the card. (optional)

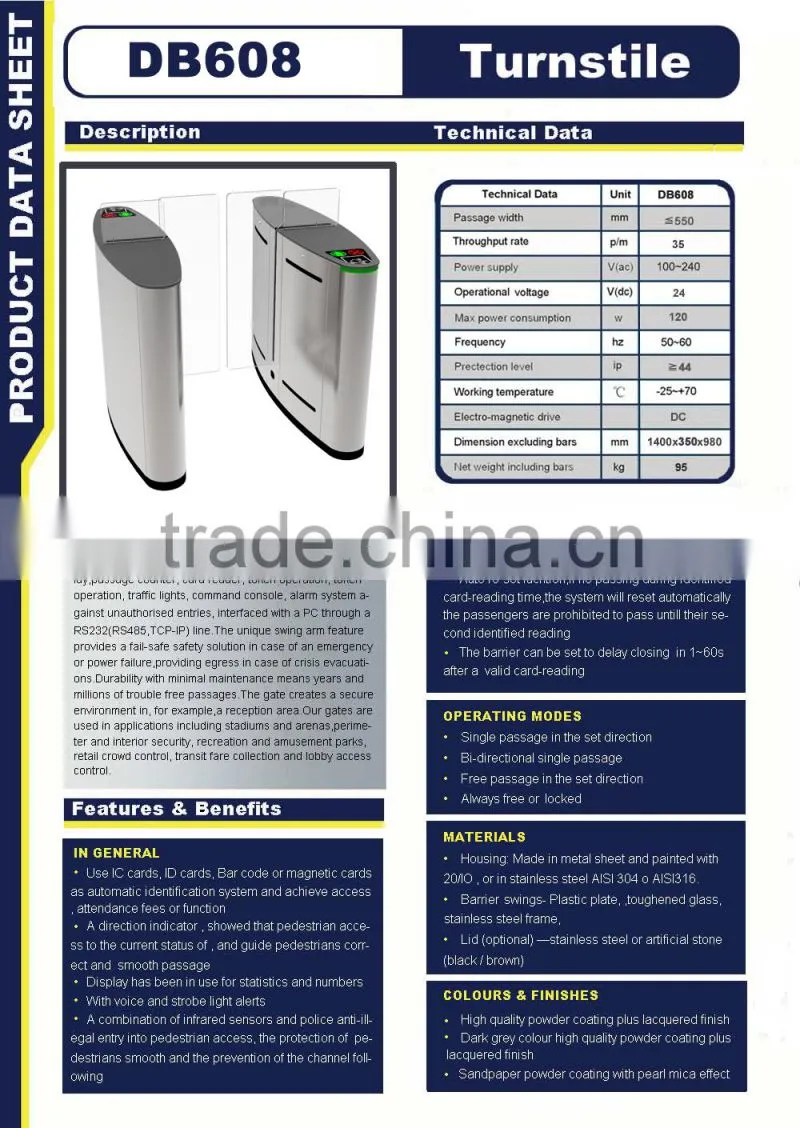

Specifications:
Technical Data |
Unit |
DB2608 |
Passage width |
mm |
600 |
Throughput rate |
p/m |
35 |
Power supply |
V(ac) |
220~240 |
Operational voltage |
V(dc) |
24 |
Max power consumption |
w |
32 |
Frequency |
hz |
50~60 |
Prectection level |
ip |
44 |
Working temperature |
|
-25~+70 |
Electro-magnetic drive |
|
DC |
Dimension excluding bars |
mm |
1400x350x980 |
Net weight including bars |
kg |
85 |
Packing:
Shipping ways:
Payment terms:
1. western union
2. T/T
3. Paypal
Return and Warranty:
Our company products are guaranteed for one year, from date of sale providing free maintenance based on not being damaged by any man-made.
♦ During the warranty period, all faults caused by the product itself can be maintained for free.
Please carry the filled warranty card and the purchase invoice to the authorized service centers across the country or retun the machine to our company for freerepair.
♦ Within the period of free maintenance, faults or damages caused by mane-made or natural disasters can be maintained with additional charge.
♦ Over the period of free maintenance, faults or damages can be maintained with additional charge.
The following conditions are not under warranty:
♦ Damages caused by abnormal operation, man-made or naturaldisasters;
Note: The warranty card and purchase invoice are used as warranty certificates to maintain the machine. Please reserve them carefully.
Project Case:
♦ Bus station (Vietnam) ♦ Factory (Indonesia)
♦ Company (Thailand) ♦ Colledge (England)
♦ Factory (Philippines) ♦ District (Malaysia)
Why choose RHT as your ideal suppliers?
ShenZhen Ruihongtai Security Technology Co., Ltd is located in ShenZhen city, has full experience in the EAS/Turnstile industry, with a strong technical team, followed by the international leading technology, be able to provide customers with best quality products and good service.Our Products have been widely used in the Middle East,Southeast Asia,Europe,North Africa and other countries and regions.We have passed the CE,RoHS and other certification.We have a professional installation team,so we can help to supply the installation instructions.
1.Are you a factory or trading company?
A:We are a RF&AM EAS System and Turnstile factory.and we are manufacturer with more than 20 years in EAS field.customized products is allowed.
2.How to testing the Turnstile Barrier Gate?
♦ Check the wiring
When connected power debugging, please check the wiring diagram according to each parts of the line is connected.
Note: protective earth wire of equipment must reliable grounding,otherwise don't allow debugging.
♦ Function test
◊ Turnstile actually pick two way signal (come in and out ).
◊ If the installation has LED indicator light on the surface, if the control PCB board receive the legitimate signal, turnstile will have green arrows in the direction.
3.What's your Advantages?
♦ Laser cutting ♦ Digital punch machine (control press)
♦ Digital grooving♦ Digital bending machine(press brake)
Thank you very much for your view!!!
