Product Name: Carbon fiber cloth
Description

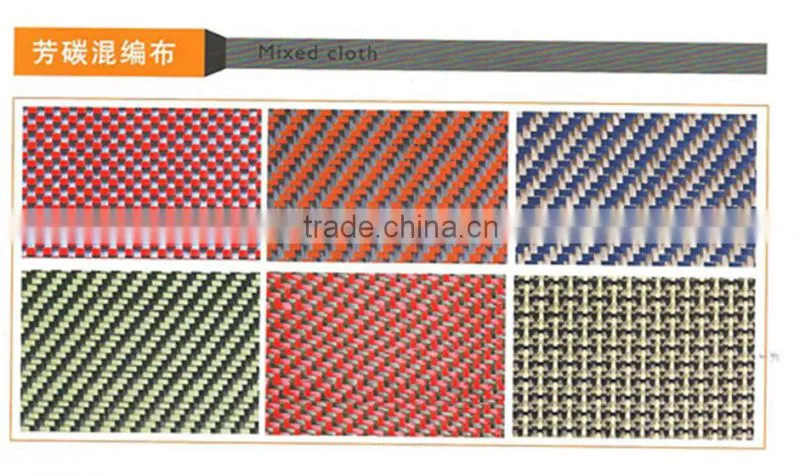

Hybrid Fabrics the main role is to increase the intensity of the civil construction, bridges and tunnels, vibration, reinforced concrete structure and stronger materials. Hybrid Fabrics are woven by More than two kinds of different fibres materials (Carbon fiber, Aramid fiber, Fiberglass and other composite materials), which have the great performance of composite materials in impact strength, rigidity and tensile strength.Hybrid Fabrics have extensive applications, such as automotive engineering, motor sports, the fashionable decorations, aircraft construction, ship construction, sports equipments, electronic products and other applications.
Material : Carbon fabric , fiberglass fiber, and Aramid fiber , Kelvar fiber filament
Thickness: 0.20 ~ 1.0mm
Weight: 190g/sqm ~ 1050g/sqm
Stylish: twill, plain,Jacquard
Width: 1m, 1.5m
Roll length: 100m
There are total 100 kinds of woven fiber sheet for your choose, carbon fabric sheet, glass fiber cloth, aramid fabric cloth, Kevlar fabric cloth, polyester fabric sheet, metallic fabric, carbon fiber sheet with PET coated, glass fiber with metallic fabric coted and our woven sheet is designed in many pattern, such as 3D effect fiberglass woven sheet, it will suitable for car decor, box decor, for more question, welcome to contact us.
Description

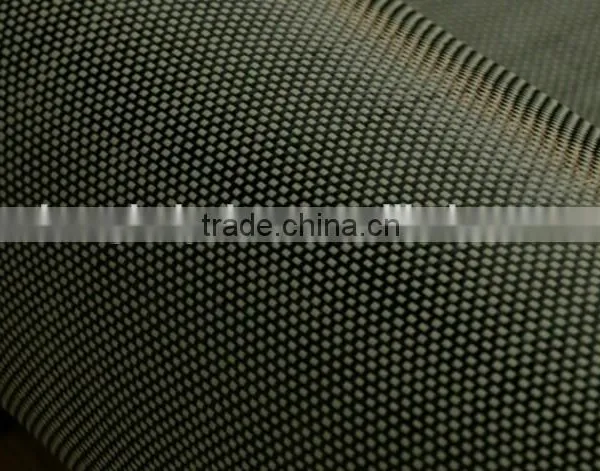

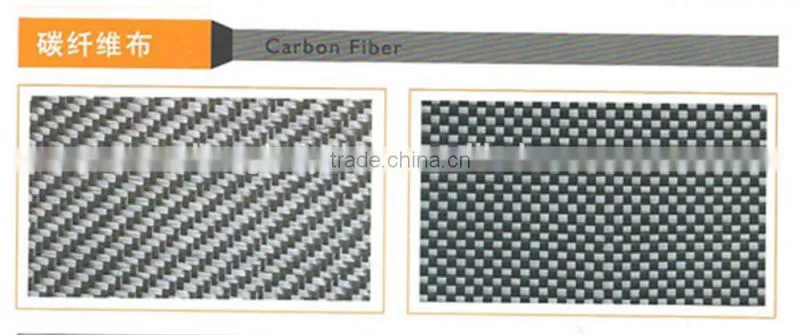

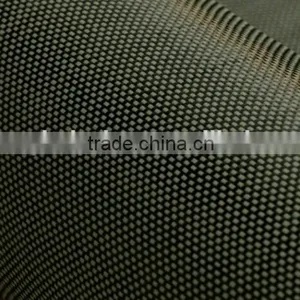

Carbon Fiber Fabric is made of carbon fiber by woven unidirectional, plain weaving or twill weaving style. The carbon fibers we use contain high strength-to-weight and stiffness-to-weight ratios, carbon fabrics are thermally and electrically conductive and exhibit excellent fatigue resistance. When properly engineered, carbon fabric composites can achieve the strength and stiffness of metals at significant weight savings. Carbon fabrics are compatible with various resin systems including epoxy, polyester and vinyl ester resins.
Features
1, high tensile strength and ray penetration
2, abrasion and corrosion resistance
3, high electric conductivity
4, light weight, easy to construct
5, high elastic modulus
6, wide temperature range

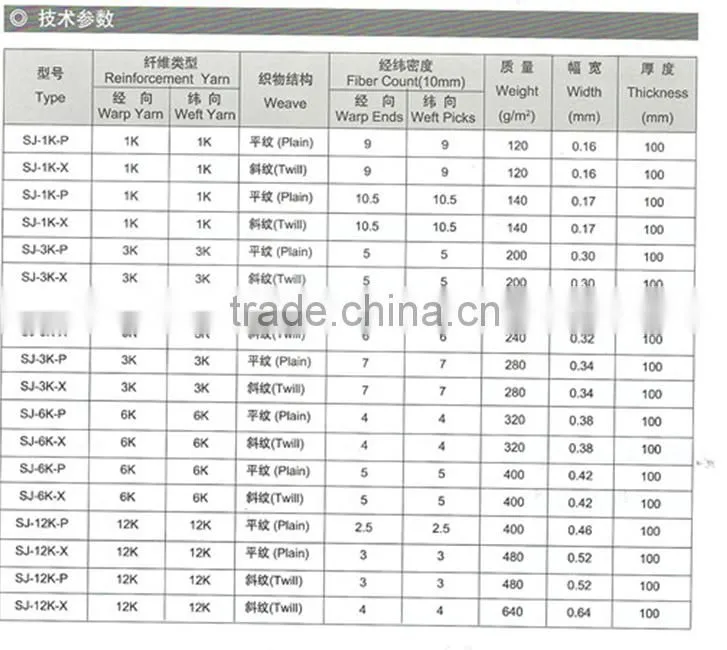

7, type: 1K, 3K, 6K, 12K, 24K
8, good surface, factory price
9, Standard width we produce is 1000mm,any other width can be on your request
10, Other fabric area weight can be avaible
Description

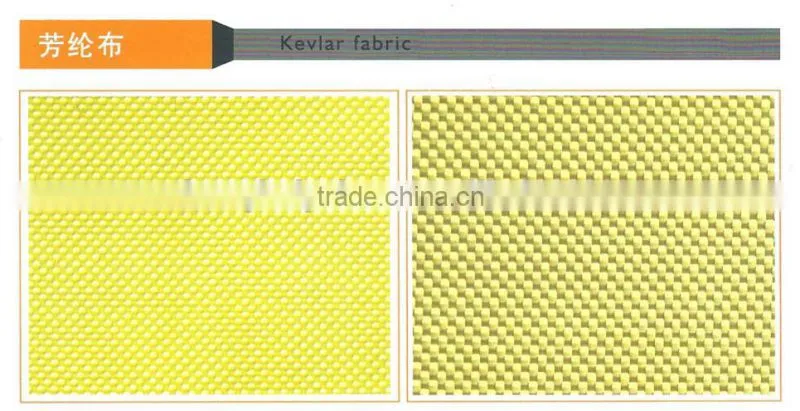

Aramid fiber fabrics
Performance and characteristics
With ultra-high strength,high modulus and high temperature resistance,acid and alkali
resistance, light and other good performance, its strength is 5-6 times of steel wire, the modulus is 2-3 times of the steel wire or glass fiber, its toughness is 2 times
of the steel wire while it only weighs about 1/5 of steel wire.
In around a temperature of 560℃, it does not decompose and melt. I t has a good insulation and anti-aging properties with a long life cycle.

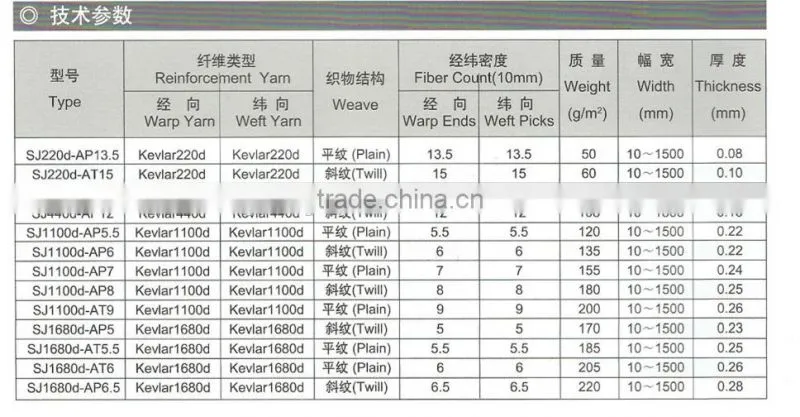

Main specifications of aramid
Aramid specifications: 200d, 400d, 800d, 1000d, 1500d
Applications
1. Airspace,Sporting goods,Mechanical equipment,ship building,Automobile,Advertising panels
2. Construction,increase building use load.
3. Material aging.
4. Concrete strength grade is lower than the design value.
5. Structural cracks processing
6. Harsh enviroment service component repair,protective.
7.Other purposes:industrial products and many other fields.

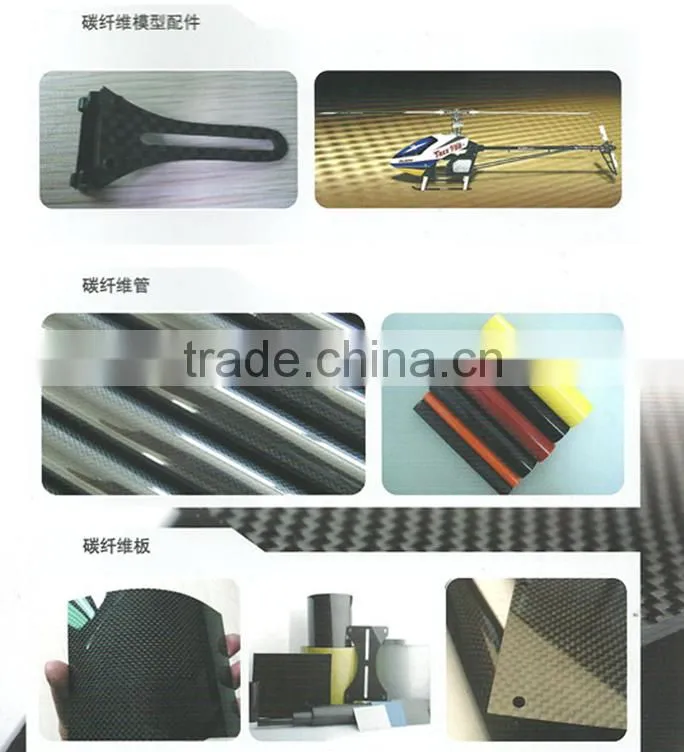

We are also manufacturing
| Carbon Fiber Plates Descriptions | |
| Material |
full carbon fiber plate carbon glass plate G10 glass plate Kevlar carbon plate |
| Size |
400*500mm 500*500mm 550*550mm 500*600mm 200*300mm 250*400mm 200*250mm |
| Thickness |
0.3mm/0.5mm/1.0mm 1.5mm/2.0mm/2.5mm 3.0mm/3.5mm/4.0mm 4.5mm/5.0mm/6.0mm |
| Lines |
3K twill 3K plain |
| Surface |
Glossy Matte |
| Tolerance | ±0.1mm |
| Stocks |
we do stocks for twill matte plates other customized plates are ok for us. |
Carbon Fiber Tubes Description | |
Material |
full carbon fiber tubecarbon glass tubeG10 glass tubeKevlar carbon tube |
Size |
Out diameter*Inner diameter5*3/6*4/7*5/8*6/10*8/10*9/12*10/ 16*14/16*15/18*16/19*17/20*1820*16/21.5*19.5/21.5*20/ 22*2025*23.5/25*23/24*22/26*24/27*2528*26/28*24/29*25/ 30*26/30*28 etc. |
Wall thickness |
0.5mm/0.75mm/1.0mm/1.5mm/2.0mm etc. |
Length |
1000mm/800mm/750mm/600mm/550mm/500mm/400mm/ 250mm/150mm etc. |
Lines |
3K twill3K plain |
Surface |
GlossyMatte |
Tolerance |
±0.1mm |
Stocks |
we do stocks for twill matte tubesother customized plates are ok for us. |
| CNC cutting service description | ||||||
| Drawing |
DWG DXF Editon from AutoCAD2004-2010 |
|||||
| Layout size |
each edge please leave 15mm for machine fix The largest carbon fiber plate is 600x1200mm. |
|||||
| Marks | if customer need the second time cutting, such as the countersunk holes,pls mark it with colors. | |||||
| MOQ | for each layout 6pcs(except sample order) | |||||
| Quotation |
1.Quote based on each piece 2.Quote based on layout We can arrange the layout free for customers |
|||||
| Cutting Tolerance | holes or chamfers: 0.8mm outdiamter | |||||
| Package | debur twice and wrapper package | |||||
| Assemble service |
we would like to sign the agreement to keep customer's confidenciality labour charge always be free support |
|||||
| Delivery | within 3-10days | |||||
What kind of service we offer
1). Search products,send samples by courier.
2). Issue invitation letter.
3). Hotel and tickets reservation service.We have agreements with some hotels,can get 45% to 50%discount from the hotels.
4). We will go and pick you up from airport or railway station when you come to China.
5). Accompany you to visit the markets and factories.
6). Purchase:we will be available to assist you during all your staying in China and make orders according to your requirements.
7).Quality control: collect and check your goods for quality and correctness .
8).Load containers,send goods by truck to the port or by air,by courier.
9).Customs declaration and issue documents.
10).OEM service according to your detail requirements.
11) If you want to tie up long lasting business beneficial association with Chinese
companies, we can stand in favor of you and convince according to your demand of business.
Our advantages
1. All-sided and easygoing touch service. We care not only your business partners, but also your
friends in China.
2. With many years of sourcing agent service experience in every city in ShenZhen, China and professional in these lines, we can give you the best service and can save much of your purchasing time in China.
3. ONE STOP logistics service from Shenzhen/Hongkong port to all over the world with most competitive sea freight/air freight.
4. Well-established relationship with customs makes sure smooth customs clearance.
5. 7 working days during your trip in China.
