Specifications
mirco servo 2g plastic gear mini sevo motorExcellent for 3D airplanes and helis
One of the smallest servos
Precise pom gears
High torque mirco servo 2g plastic gear mini sevo motor
Features of mini sevo motor
One of the smallest servos in the world is coming here
Coreless motor 2g micro servo for rc toys, helicopters, planes
Precise POM gears lead smooth and steady performance
Specifications of mini sevo motor
Item No.: LS-S0002
Gear Type: POM Gear
Size(L*W*H): 16*8.2*16.5mm 0.63*0.32*0.65inch
Weight: 2.2g/0.08oz
Speed: 0.08s/60° at 3.7V 0.06s/60° at 4.2V
Torque: 0.13kg-cm at 3.7V 0.15kg-cm at 4.2V
Motor Type: Coreless Motor
Operating Voltage: 3.7V-4.8V
Wire Length: 110mm Wire
Color: Black, Red, White
Plug Type: 1.25mm JST Plug
Running current: 35mA
Idle current: 4mA
| 3.7V | 4.2V | |
| Speed | 0.09s/60° | 0.08s/60° |
| Torque | 0.13kg-cm | 0.13kg-cm |
| Torque | 1.53oz-in | 2.08oz-in |

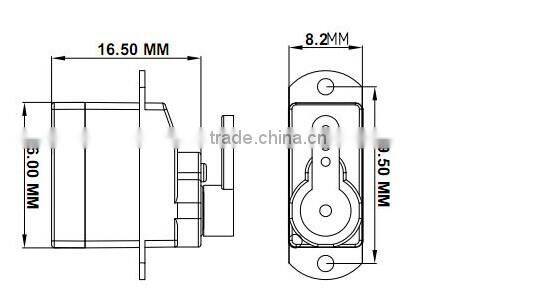

Micro servo size for reference

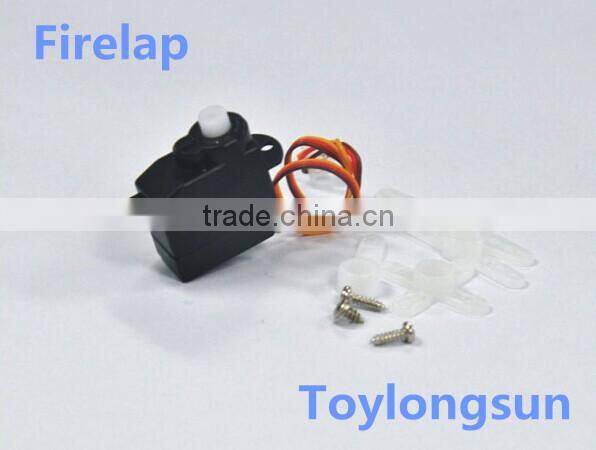

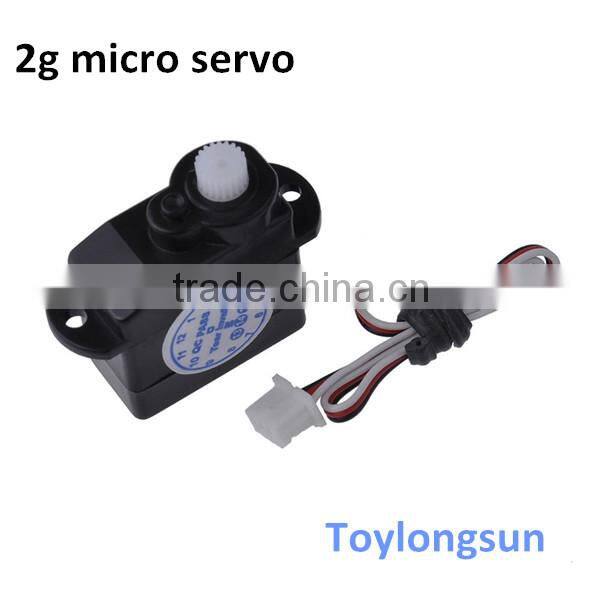

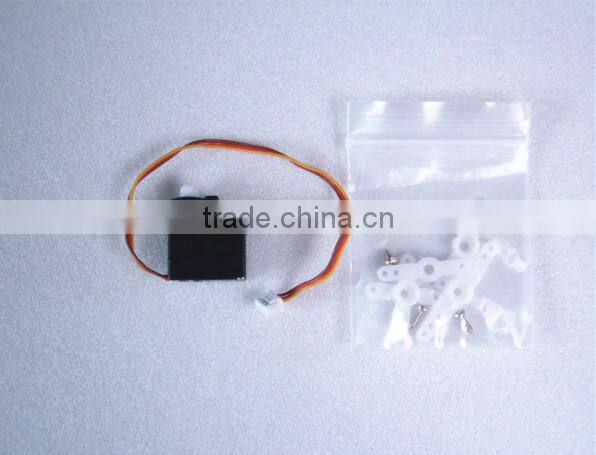

Pictures of mini sevo motor
There are many other servos from us, 2.2g, 3g, 3.7g, 5g, 6g, 8g, 9g, 12g, 25g, 3kg, 6kg, 15kg
and brushless servo. All of them passed CE and RoHs Certification.
