Type
Other, rc servo, Analog
Place of Origin
Guangdong, China
Brand Name
Firelap
Model Number
LS-S0005
Specifications
Wholesale cheap price 5g rc servo for rc helicoptersExcellent for 3D airplanes and helis.
Precise pom gears
coreless motor
Wholesale cheap price 5g rc servo for rc helicopters
Feature: Futaba, JR, Sanwa and Hitec compatible.
Important Notes:
1,Specify the connector type when you purchase the servo.
2,Refer to the figure when installing the servo accessories.
3,For engine powered airplanes and boats, rubber must be used to reduce vibration.
4,Please choose correct model for your application.
5,Torque over-loaded will damage the servo's mechaniSM-.
6,Keep the servo clean and away from dust, corrosive gas and humid air.
| Particular Specifications | |
| Item No. | LS-S0005 |
| Type | Analog |
| Weight | 5g |
| Size | 21.5*11.8*20.9mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Required Pulse | |
| Operating Voltage | 4.5~6.0Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (4.8V) | 0.14sec/60° at no load |
| Operating Speed (6.0V) | 0.12sec/60° at no load |
| Stall Torque (4.8V) | 0.8kg.cm |
| Stall Torque (6.0V) | 1.0kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| 360 Modifiable | No |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (4.8V) | 20mA/idle and 120mA no load operating |
| Current Drain (6.0V) | 20mA/idle and 140mA no load operating |
| Stall Current | 390mA/460mA |
| Dead Band Width | 4usec |
| Motor Type | coreless motor |
| Bearing Type | No |
| Horn gear spline | 24T |
| Gear Type | Plastic |
| Connector Wire Length | 150mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal | |

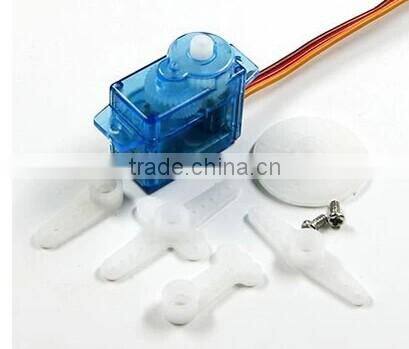

Pictures of rc servo
There are many other servos from us, 2.2g, 3g, 3.7g, 5g, 6g, 8g, 9g, 12g, 25g, 3kg, 6kg, 15kg
and brushless. All of them passed CE and RoHs Certification.
