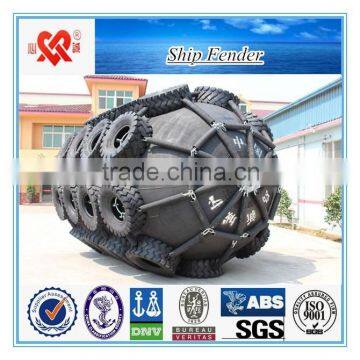

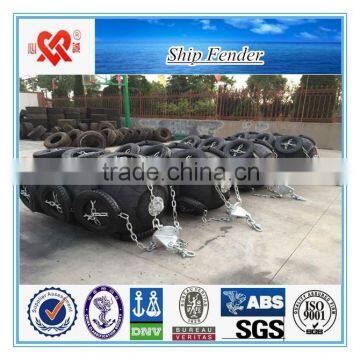

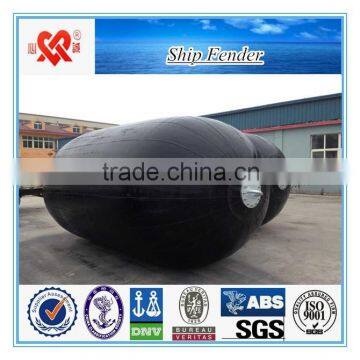

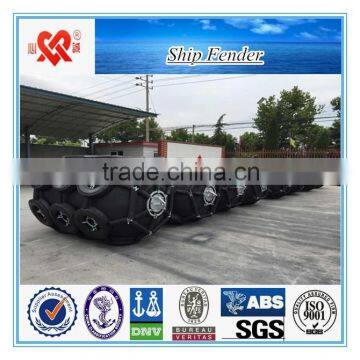

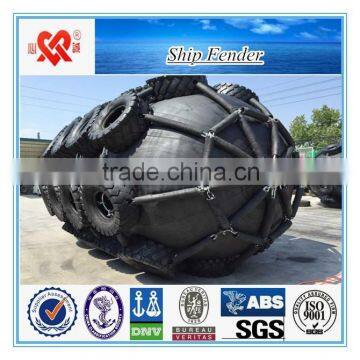

PRODUCT: made in China top quality of pneumatic rubber ship fender
BRIEF INTRODUCTION
Pneumatic rubber fender is the advanced anti-collision device for marine application in the world today. It uses compressed air as medium to absorb the impact energy in a collision between ship and ship or ship and dock,etc. So that it can prevent ship and dock from damages.
ABOUT XINCHENG
Qingdao Xincheng Rubber Products co.,ltd as a manufacturing plant, which was estabished in 1986. The Company is a production, scientific research and design,product development, technical services for the integrated enterprise.The Company is mainly produce marine rubber airbags and marine rubber fenders , which as the leading enterprise has passed the certification of CCS , ISO9001:2008, SGS, LR etc.
Since the 1986 , the Company has accumulated a lot of production experience in the field of marine rubber airbags and fenders, which has bring together a large number of professional design and production technical personnel. The Company always adhere to improve product quality and customer service.
SPECIFICATIONS
D*L | Initial pressure(Po)is 0.05Mpa | Initial pressure(Po)is 0.08Mpa | ||||
| Weight | R(KN) | GEA(KJ) | Height | R(KN) | GEA(KJ) | |
| 0.5*1.0 | 25 | 64 | 6 | 25 | 83 | 8 |
| 0.6*1.0 | 32 | 74 | 8 | 32 | 96 | 11 |
| 0.7*1.5 | 50 | 137 | 17 | 50 | 178 | 24 |
| 1.0*1.5 | 80 | 182 | 32 | 80 | 235 | 44 |
| 1.0*2.0 | 100 | 257 | 45 | 125 | 335 | 63 |
| 1.2*2.0 | 120 | 297 | 63 | 165 | 386 | 86 |
| 1.35*2.5 | 165 | 427 | 102 | 226 | 554 | 140 |
| 1.5*3.0 | 315 | 597 | 153 | 370 | 751 | 211 |
| 1.7*3.0 | 405 | 639 | 191 | 436 | 860 | 263 |
| 2.0*3.5 | 590 | 875 | 308 | 632 | 1138 | 424 |
| 2.5*4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
| 2.5*5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
| 3.0*5.0 | 1880 | 2104 | 1210 | 2155 | 2709 | 1571 |
| 3.0*6.0 | 2160 | 2583 | 1485 | 2470 | 3292 | 1888 |
| 3.3*4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
| 3.3*6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
| 3.3*6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
| Note:The weight of the ball by ball weight(without jacket),the weight of error be of ± 10%; reaction force error be of ± 10% | ||||||
THIS IS ONLY THE COMMON SPECIFICATIONS WE PRODUCT, THE OTHER SPECIFICATIONS ARE ALSO AVAILABLE.
NOTES:
1. Often check the balls for damages and pressure
2. Keep the touch point without any sharps and sticking-out things
3. Keep accessories and clamp nuts from loosing under internal pressure test
4. Keep the network ropes fastness

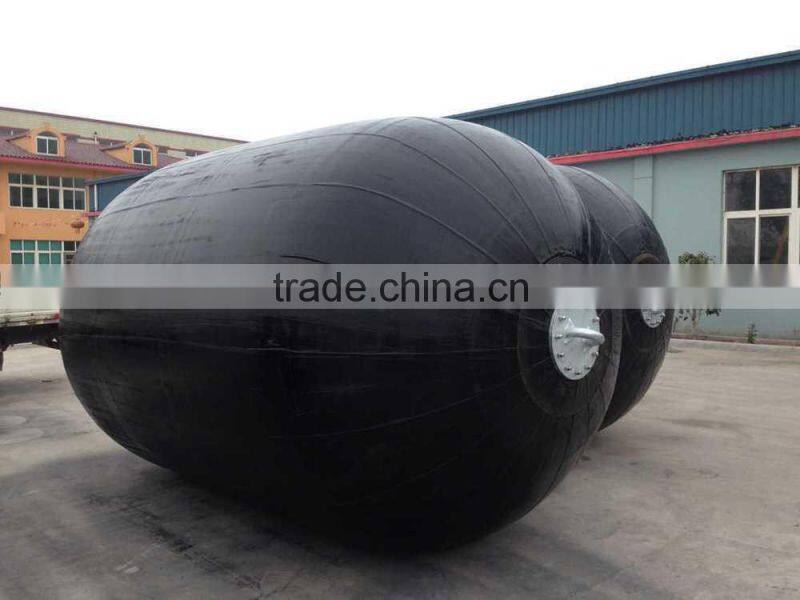

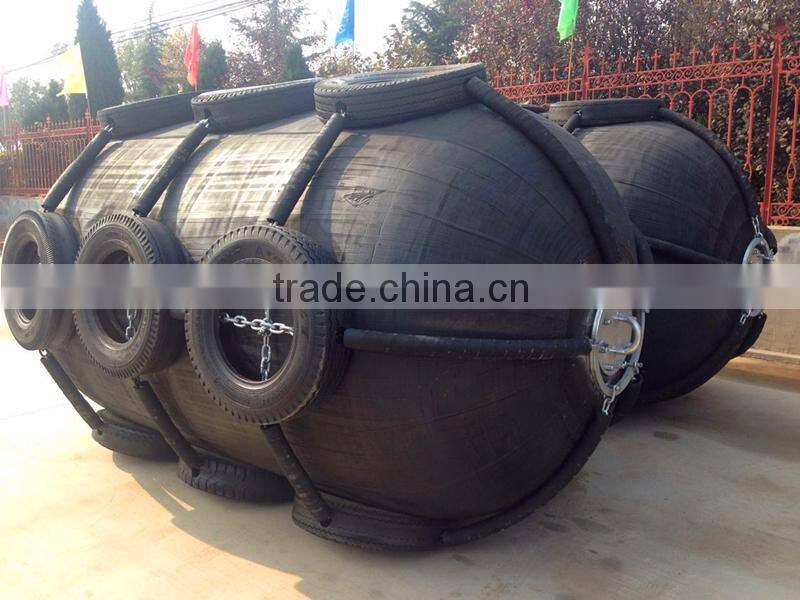

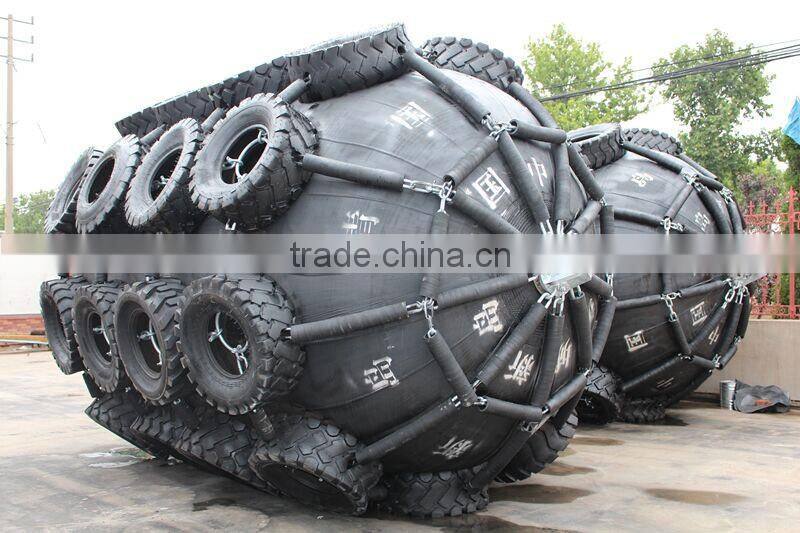

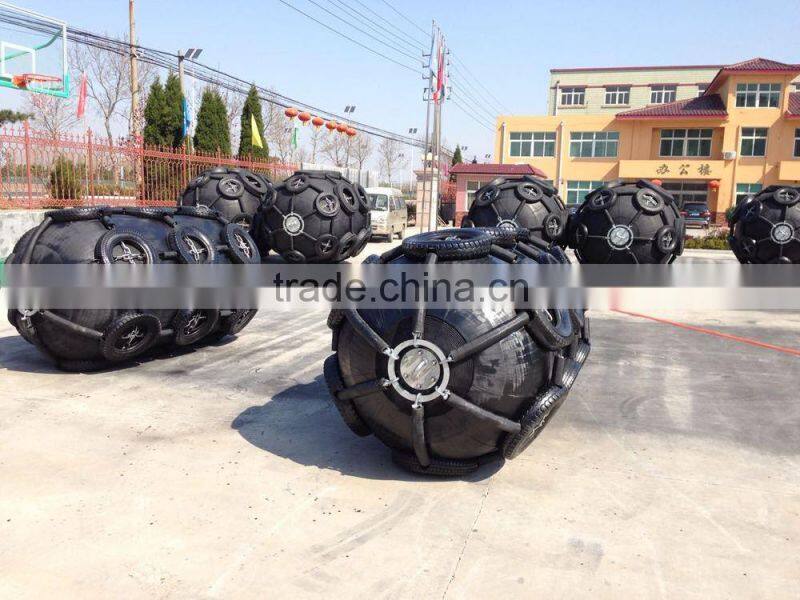

MORE PICTURES FOR LEARNING
INFLATION PROCESS
THANKS FOR YOUR ENTERING AND SCANNING, HOPE WE CAN ESTABLISHED A LONG TERM COOPERATION RELATIONSHIP!
HAVE A NICE DAY!
