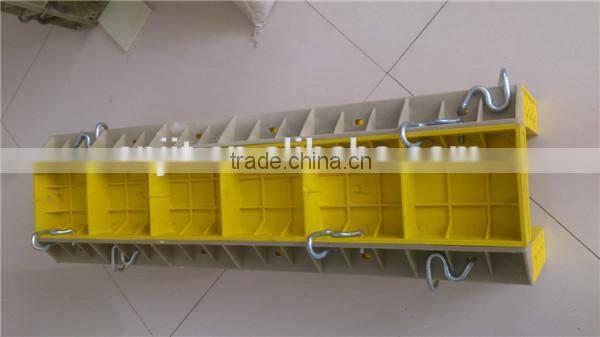

PP formwork PP mold for wall cast insite

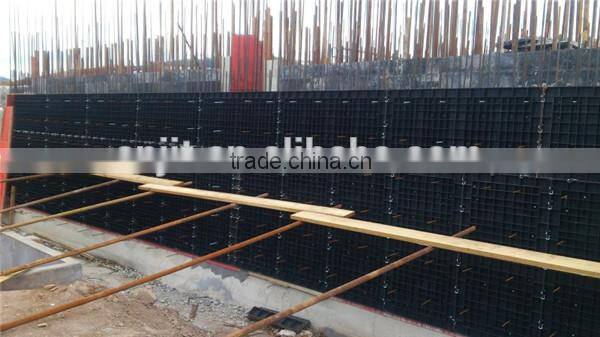

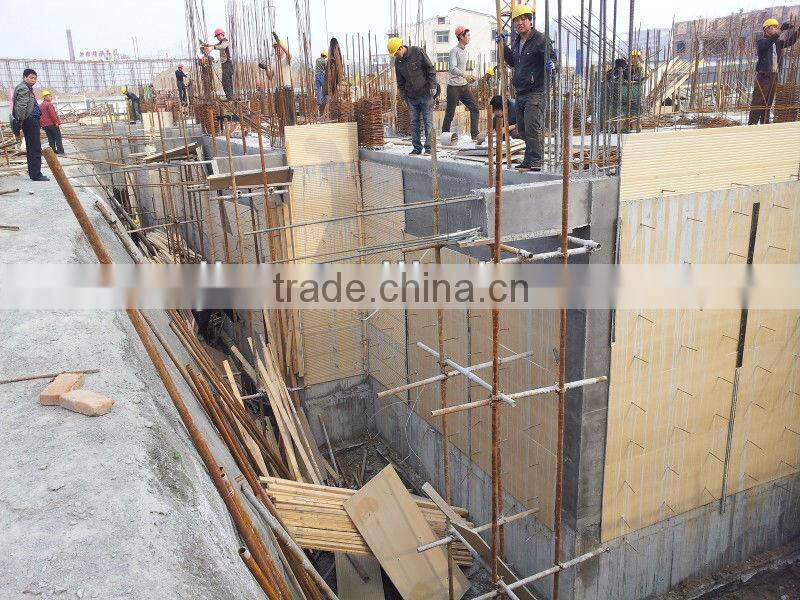

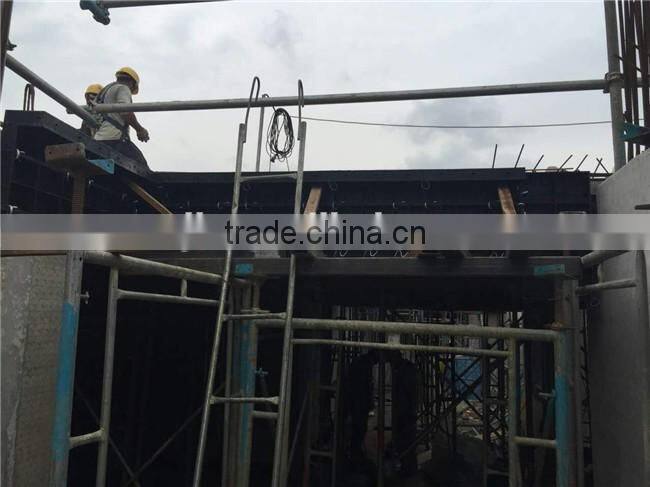

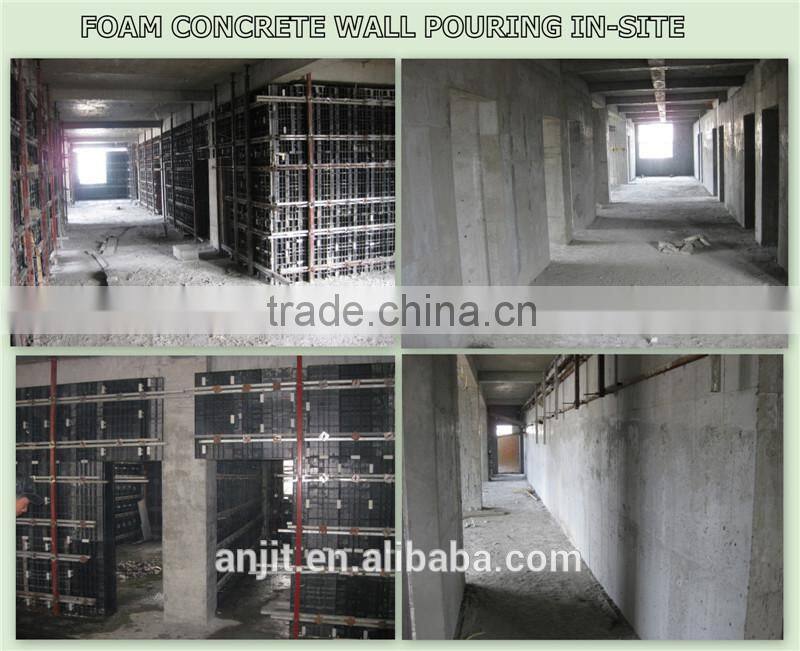

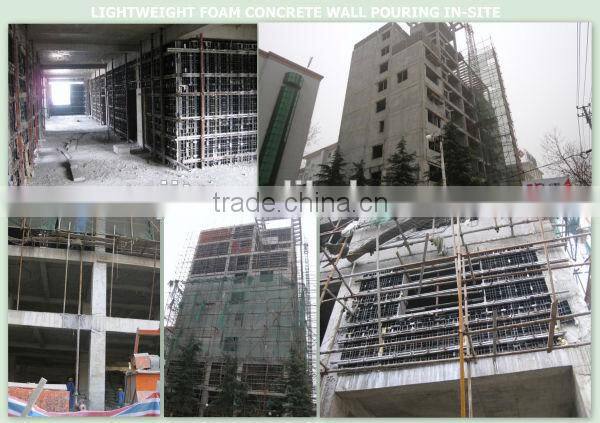

It is often used to cast foam concrete wall/roof/beam/column onsite.
Just let us know your drawing, our team will calculate the suitable size for you.
Formwork
Thickness: 55mm
Specification:
900*1800*55mm, 900*1800C*55mm,900*1500C*55mm,
600*1800*55mm, 600*1800C*55mm,600*900C*55mm,
500*1800C*55mm,
450*1800*55mm,
400*1500*55mm, 400*1500C*55mm,
300*1500C*55mm, 300*900C*55mm,300*600*55mm,
250*900*55mm, 250*600*55mm, 250*300*55mm,
200*900*55mm, 200*600*55mm, 200*300*55mm,
150*900*55mm, 150*600*55mm, 150*300*55mm,
130*900*55mm,
120*900*55mm.
100*900*55mm.
Detail Specification:
Name |
Size (Width*Length) |
Application |
|

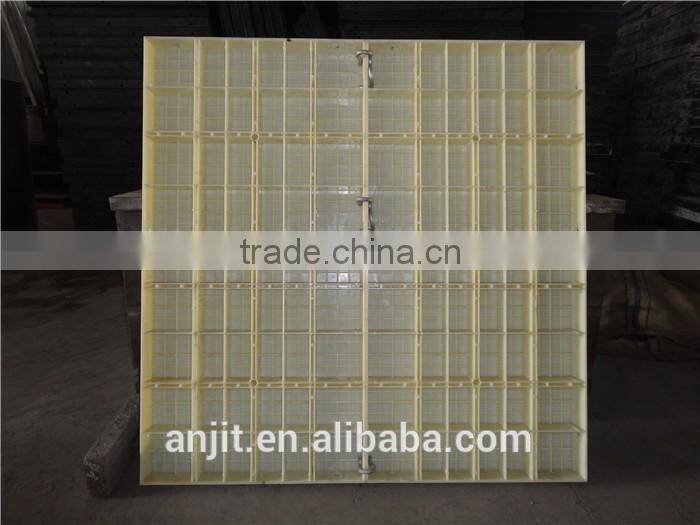

Formwork (Cast wall, roof, beam, and column on site) Weight: 12kg/m2 Thickness: 55mm
|
900*1800mm |
Column & Wall |
900*1800Cmm | ||
900*1500Cmm | ||
600*1800Cmm | ||
600*900Cmm | ||
900*1800mm |
Roof & Beam |
|
900*1500mm | ||
600*1800mm | ||
600*900Cmm | ||
450*1800Cmm |
Common use |
|
500*1800Cmm | ||
400*1500mm | ||
400*1500Cmm | ||
300*1500Cmm | ||
300*900Cmm | ||
300*600mm | ||
250*900mm | ||
250*600mm | ||
250*300mm | ||
200*900mm | ||
200*600mm | ||
200*300mm | ||
150*900mm | ||
150*600mm | ||
150*300mm | ||
130*900mm | ||
120*900mm | ||
100*900mm | ||
|

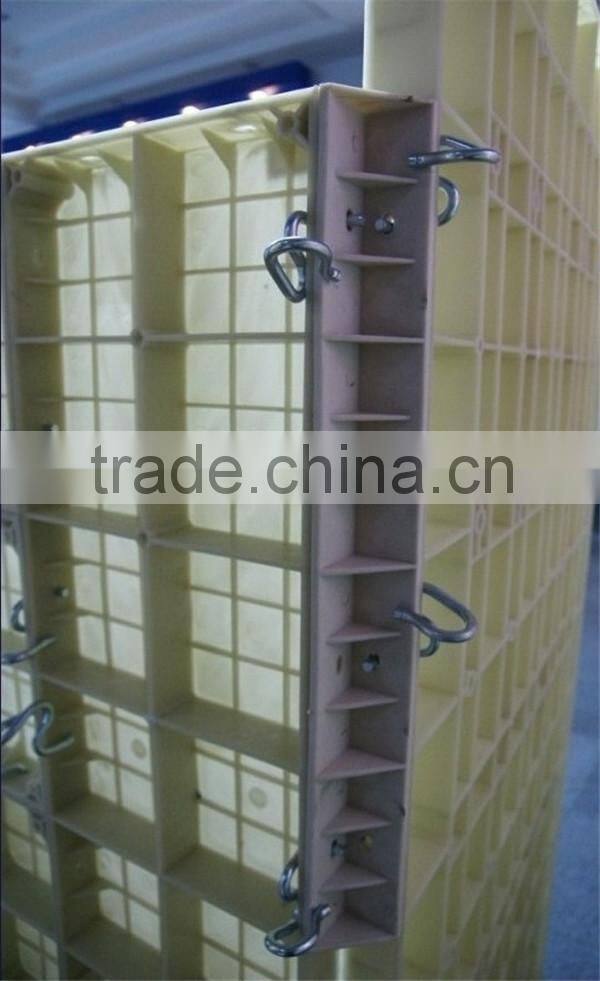

Male corner connection formwork Weight: 0.65kg Thickness: 55mm
|
55*55*900mm |
For connecting corner |
|

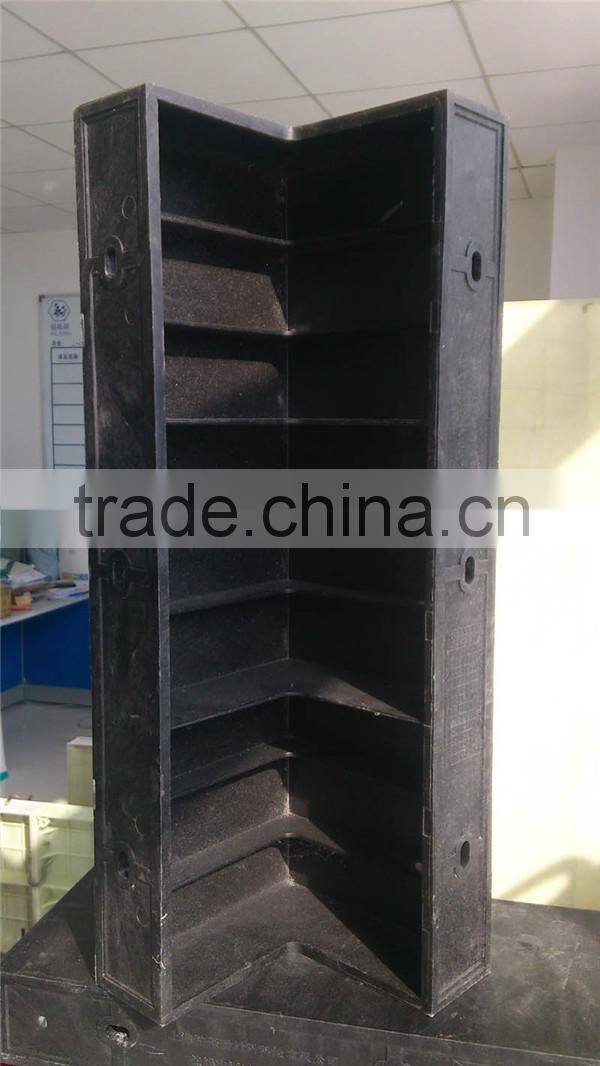

Female corner formwork Weight:1.468kg Thickness: 55mm
|
150*150*450mm |
For right angle corner |
|

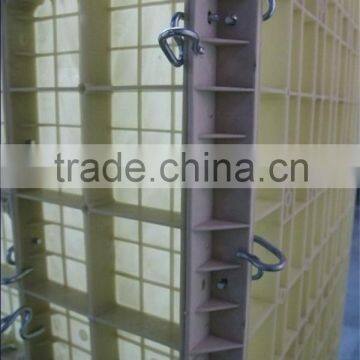

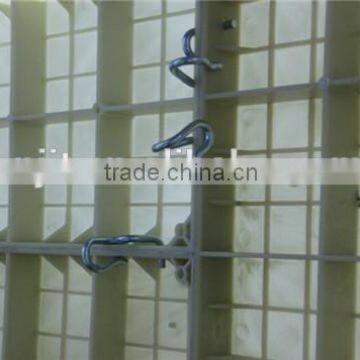

Buckle Weight:0.1kg
|
It asks 12pcs of buckles for 1m2 wall |
Connecting formworks |

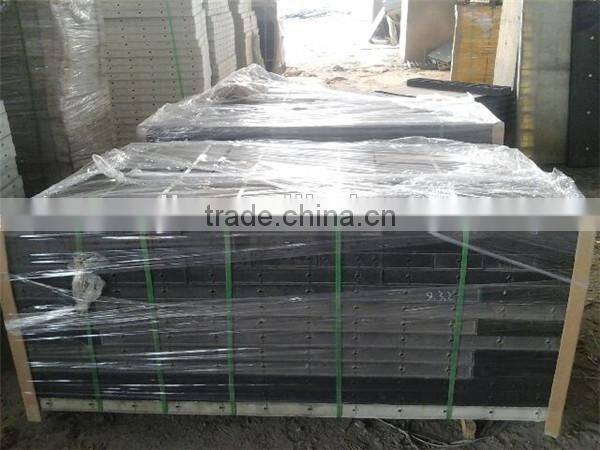

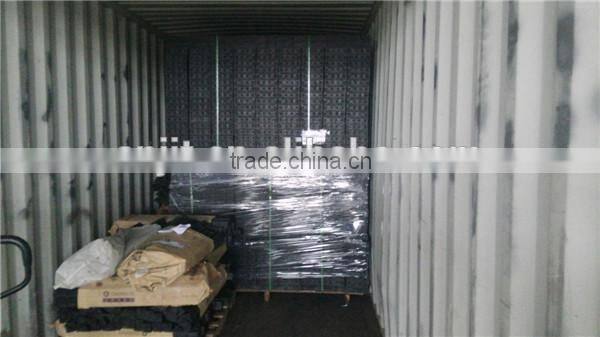

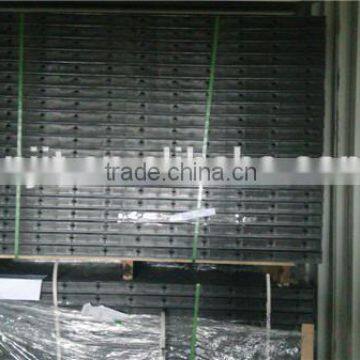

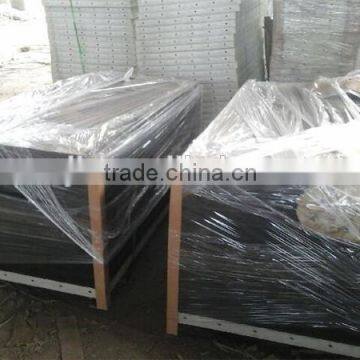

Pallets for PP formowrk if LCL;
Plastic film for PP formwork if FCL.
To send your detail inquiry to our email now! Our best service waiting for you.

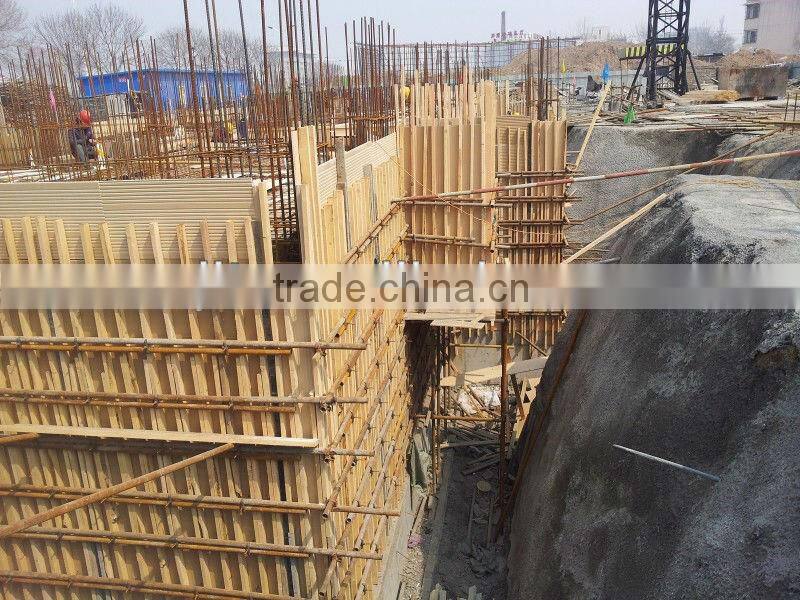

formworks for building construction
Construction Formworks
Building Templates
Wall formworks
Wall templates
Roof formworks
Roof templates
Roof beam formworks
Roof beam templates
Specification:
width 915mm or 1220mm,
length no limited,
thickness 12~18mm
Common size used in construction: 915*1830*15mm
Performance:
1- Level and smooth surface:
2- Light weight and easy for assembling;
3- Easy demould, no need brush parting agent;
4- Stability and weather proof: during -20degree and 60degree, no shrinkage, no swelling, no cracking, no deformation, Alkali-resistance, corrosion protection, fireproof, waterproof, heat resistance, electric insulation;
5- Good variability: the shape and the specification could be changed according to the construction situation.
6- Low cost: recyclable, longlife span;
7- Energy conservation and environment-friendly etc.

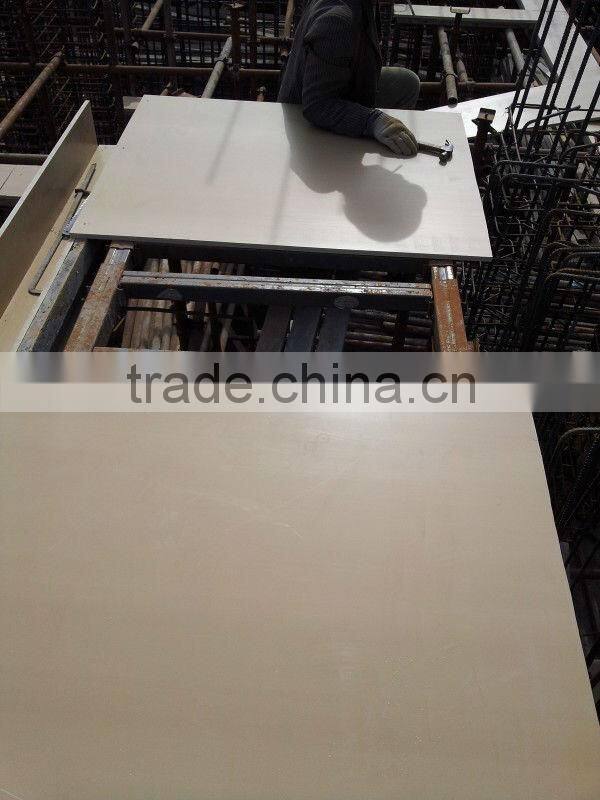

Install instruction and notice:
1- Easy to nail, drill, and cut and size you want;
2- 150mm between the battens or supporters;
3- 400mm between the Strengthen screws(Dia. 12mm);
4- 400mm between the cross bars;
5- When demould, don't be violent.
| National Research Center of Testing Techniques for Building Materials | |||
| Test Report | |||
| Center ID:2012C01706 | |||
| Sr.No. | Test Item | Test Value | Test bases on |
| 1 | Flexual strength | 17.5Mpa | GB/T17657-1999 |
| 2 | Tensile strength | 1041Mpa | GB/T17657-1999 |
| 3 | Screw holding capability | 1154N | GB/T17657-1999 |
| 4 | Resistance to fouling | No pollutioncorrosion | GB/T17657-1999 |
| 5 | Vicat softening temperature | 91 degree celcius | GB/T1633-2000 |
| 6 | density | 0.59g/cm3 | GB/T17657-1999 |
| 7 | Surface abrasion resistance | 0.067g/100r | LY/T 1613-2004 |
| 8 | moisture content | 0.14% | LY/T 1613-2004 |
| 9 | Water absorption thickness swelling | 0.15% | LY/T 1613-2004 |
| 10 | Condition after heating | No bubblescracks pitting | LY/T 1613-2004 |
| 11 | Dimensional change rate after heating | 0.04% | LY/T 1613-2004 |
| 12 | Unfixed shrinkage ratio between high and low temperature | 0.05% | LY/T 1613-2004 |
| 13 | Combustibility | B2 grade | GB8624-1997 |
| 14 | Formaldehyde emission | <0.1mg/L | GB18580-2001 |
Send your inquiry details in below for professional CLC line and price, click "send" now!
