Help Center3 Way T Flow Motorizd Water Ball Valve for Solar Water System Hot Water Control System Cold Water
Related Products
-
3 Way Motorizd Valve 3.6v 12v 24v 220V for Chilled Water, GardenUS$ 16 - 60MOQ: 10 Pieces -
15mm 3 Way Motorizd Valve 3.6v 12v 24v 220V for Solar System Hot Water ControlUS$ 16 - 60MOQ: 10 Pieces
-
3/8" Full Port 10mm 3 Way Motorizd Valve 3.6v 5V 12v 24v 220V for Solar System Hot Water ControlUS$ 16 - 60MOQ: 10 Pieces
-
DN10 10mm 3 Way Motorizd Valve 3.6v 5V 12v 24v 220V for Solar System Hot Water ControlUS$ 16 - 60MOQ: 10 Pieces
-
3 Way Brass Motorized Ball Valve 12v 24v 220v With Good Quality 3/4'' 1'' for Water Isolation,water TreatmentNegotiableMOQ: 2 Pieces
1/4 1/2 3/4 1 1 1/4 brass or stainless steel electric ball valve 3v 6v 12v 24v 110v 220v CWX-15Q OEM
three way electric valve for HVAC system 3v 6v 12v 24v 110v 220v
Specification:
| Product Name :CWX-15Q/N Mini Electric ball valve |
| Product Class:CWX Series Valve |
| Product No. : |
| Product Content : Actuator code: CWX-15Q/N Body: Brass SS PP Voltage: DC3V-9V 9V-24V AC9V-24V AC85-265V Torque output: 1.5Nm Working Presure: 0-10 Bar Temperature: 0 - 100 degree celsius Size Scope: DN8 ~DN25 Open/Close time: <3 or <5 seconds Number of Wires: 2-5 wires Product life:100,000times Protection Class : IP65 |
Material of main parts:
Actuator: heat-resistant ABS
Body: brass or stainless steel
Ball: brass or stainless steel
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
Stem: brass or stainless steel

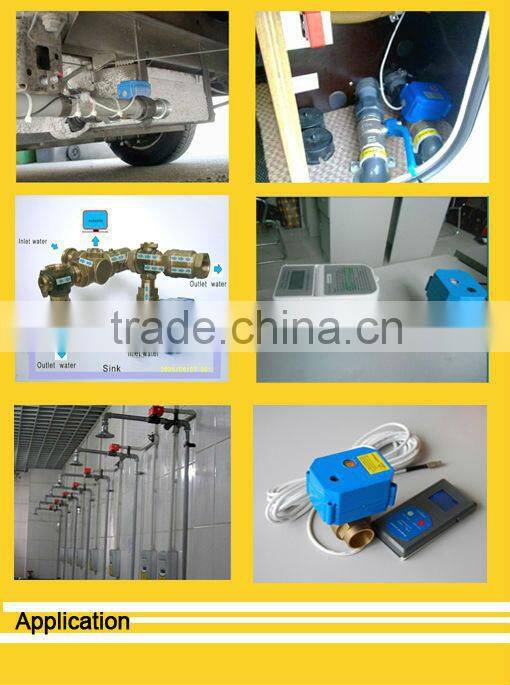

Applications:
1.Air-warm valve.HVAC and fire-flight sprinkler service,Fan coil and,hot water cycle system
2.Environmental Protection and drain water system,Water treatment project .
3.IC card meters,heat energy meters and reuse of rainwater and reuse of grey water system
4.Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.
5.Small equipment for automatic control,agricultural water conservation and water-saving irrigation system
6.Solar thermal,under-floor,rain water,irrigation,plumbing service,hot water heating and solar glycol loop,ideal for off-grid system.
7.Water,Irrigation system,cooling/heating system,Low voltage plumbing system
8.Water equipment,auto-control water system,industrial mini-auto equipment, Small equipment for automatic control
Main Market:
Asia,Europe and North America
Paper Carton:
Large case:48x40x28(CM)/50-100pcs/0.054Cubic Meter
middle case:27x24x19(CM)/20-50pcs/0.012Cubic Meter
small case:13x10x8.5(CM)/1-2pcs/0.011Cubic Meter
