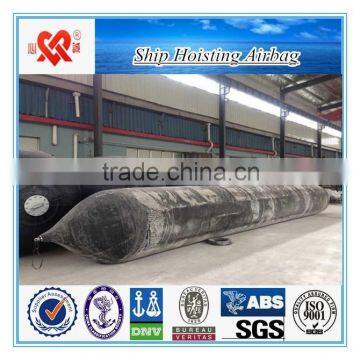

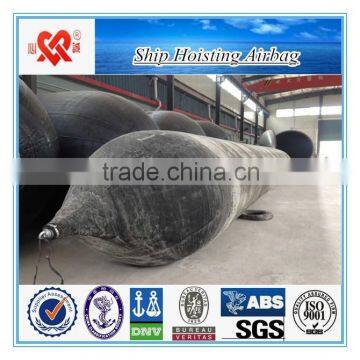

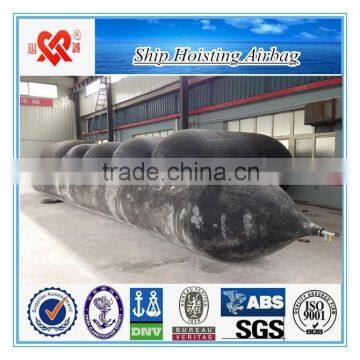

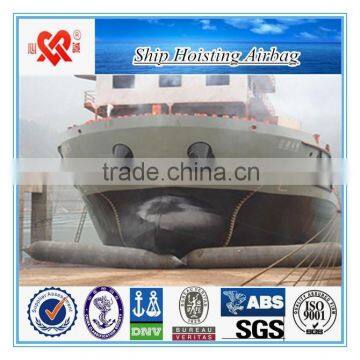

Made in China Marine Building Rubber Ship Hoisting Airbag

Name: Made in China Marine Building Rubber Ship Hoisting Airbag
Brand: XINCHENG
Availability: InStock

FOB Price

US$ 200 - 120,000 / Piece

2 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	XINCHENG
Model Number	XC A066

Applications:

1. Shipwreck salvage.

2. Floating bridge and dock construction.

3. Rescue and remove of wrecked ship.

4. Can be used as pontoons for supporting docks and other floating structure.

Airbag Structure:

Specification Form of Airbag:

1> Diameter (D) : From 0.8m to 2.5m.

2> Effective Length (EL) : From 6m to 25m.

3> Total Length (TL) : From 7m to 28m.

4> Other specification of ship launching airbags also available upon customer’s request

Besides,we can according to your ship information provide you the most suitable size, etc.

DIAMETER	WORKING PRESSURE	WORKING HIGHT	GUARANTEED BEARING CAPACITY PER UNIT LENGTH
DIAMETER	WORKING PRESSURE	WORKING HIGHT	KN/m	T/M	Lb/ft
D=1.2m (D=3.94FT)	0.17Mpa (24.66psi)	0.7m(2.296ft)	133.61	13.62	9154
		0.6m(1.968ft)	160.30	16.34	10983
		0.5m(1.640ft)	187.08	19.07	12818
		0.4m(1.312ft)	213.76	21.79	14646
		0.3m(0.984ft)	240.44	24.51	16474
		0.2m(0.656ft)	267.22	27.24	18309
D=1.5m (D=4.92ft)	0.13Mpa (18.85psi)	0.9m(2.952ft)	122.63	12.50	8402
		0.8m(2.624ft)	143.03	14.58	9800
		0.7m(2.296ft)	163.43	16.66	11198
		0.6m(1.968ft)	183.94	18.75	12602
		0.5m(1.640ft)	204.34	20.83	14000
		0.4m(1.312ft)	224.75	22.91	15398
		0.3m(0.984ft)	245.15	24.99	16797
D=1.8m (D=5.90ft)	0.11Mpa (15.95psi)	1.1m(3.608ft)	120.96	12.33	8287
		1.0m(3.280ft)	138.22	14.09	9470
		0.9m(2.952ft)	155.59	15.86	10660
		0.8m(2.624ft)	172.85	17.62	11843
		0.7m(2.296ft)	190.22	19.39	13033
		0.6m(1.968ft)	207.48	21.15	14216
		0.5m(1.640ft)	224.75	22.91	15398
		0.4m(1.312ft)	242.01	24.67	16581
		0.3m(0.984ft)	259.38	26.44	17771
		0.2m(o.656ft)	276.64	28.20	18954
		NOTE : THE ABOVE VALLUE IS FOR REFERENCE ONLY . IT IS SUBJECT TO CHANGE IN ACCORDANCE WITH ACTUAL AIRBAG SYSTEM DESIGN . YOU CAN CHOOSE THE REQUIRED OF SHIPS AND BOATS OF ALL SIZES. WE WILL MEET YOUR PROJECTS/SUPPLIED UPON CLIENTS REQUEST .

Inflatable Accessories of Airbag:
