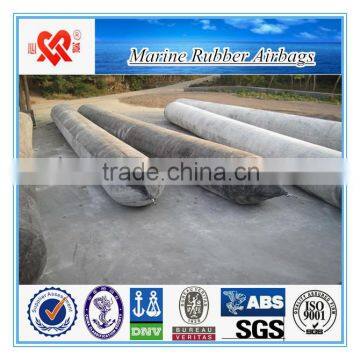

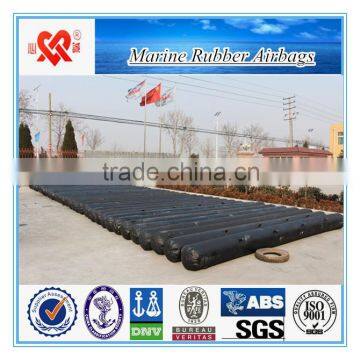

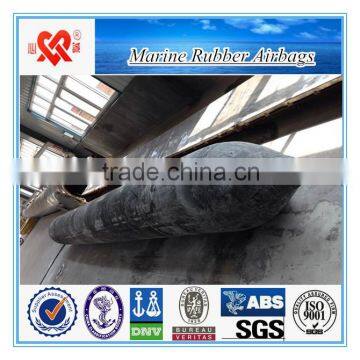

Chinese ship launching/lifting rubber marine airbag with fast delivery

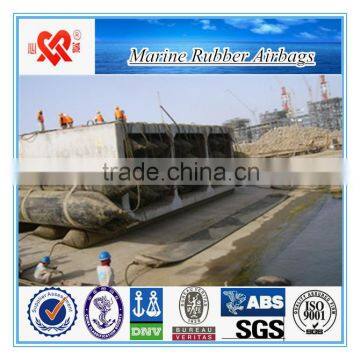

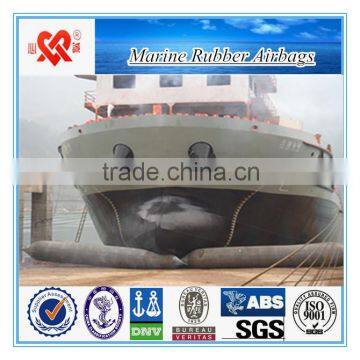

Applications:
1. Shipwreck salvage.
2. Floating bridge and dock construction.
3. Rescue and remove of wrecked ship.
4. Can be used as pontoons for supporting docks and other floating structure.
Airbag Structure:
Specification Form of Airbag:
1> Diameter (D) : From 0.8m to 2.5m.
2> Effective Length (EL) : From 6m to 25m.
3> Total Length (TL) : From 7m to 28m.
4> Other specification of ship launching airbags also available upon customer’s request
Besides,we can according to your ship information provide you the most suitable size, etc.
DIAMETER | WORKING PRESSURE | WORKING HIGHT | GUARANTEED BEARING CAPACITY PER UNIT LENGTH | ||
KN/m | T/M | Lb/ft | |||
D=1.2m (D=3.94FT) |
0.17Mpa (24.66psi) | 0.7m(2.296ft) | 133.61 | 13.62 | 9154 |
0.6m(1.968ft) | 160.30 | 16.34 | 10983 | ||
0.5m(1.640ft) | 187.08 | 19.07 | 12818 | ||
0.4m(1.312ft) | 213.76 | 21.79 | 14646 | ||
0.3m(0.984ft) | 240.44 | 24.51 | 16474 | ||
0.2m(0.656ft) | 267.22 | 27.24 | 18309 | ||
D=1.5m (D=4.92ft) |
0.13Mpa (18.85psi) | 0.9m(2.952ft) | 122.63 | 12.50 | 8402 |
0.8m(2.624ft) | 143.03 | 14.58 | 9800 | ||
0.7m(2.296ft) | 163.43 | 16.66 | 11198 | ||
0.6m(1.968ft) | 183.94 | 18.75 | 12602 | ||
0.5m(1.640ft) | 204.34 | 20.83 | 14000 | ||
0.4m(1.312ft) | 224.75 | 22.91 | 15398 | ||
0.3m(0.984ft) | 245.15 | 24.99 | 16797 | ||
D=1.8m (D=5.90ft) |
0.11Mpa (15.95psi) | 1.1m(3.608ft) | 120.96 | 12.33 | 8287 |
1.0m(3.280ft) | 138.22 | 14.09 | 9470 | ||
0.9m(2.952ft) | 155.59 | 15.86 | 10660 | ||
0.8m(2.624ft) | 172.85 | 17.62 | 11843 | ||
0.7m(2.296ft) | 190.22 | 19.39 | 13033 | ||
0.6m(1.968ft) | 207.48 | 21.15 | 14216 | ||
0.5m(1.640ft) | 224.75 | 22.91 | 15398 | ||
0.4m(1.312ft) | 242.01 | 24.67 | 16581 | ||
0.3m(0.984ft) | 259.38 | 26.44 | 17771 | ||
0.2m(o.656ft) | 276.64 | 28.20 | 18954 | ||
NOTE : THE ABOVE VALLUE IS FOR REFERENCE ONLY . IT IS SUBJECT TO CHANGE IN ACCORDANCE WITH ACTUAL AIRBAG SYSTEM DESIGN . YOU CAN CHOOSE THE REQUIRED OF SHIPS AND BOATS OF ALL SIZES. WE WILL MEET YOUR PROJECTS/SUPPLIED UPON CLIENTS REQUEST . | |||||
Inflatable Accessories of Airbag:
Qingdao Xincheng Rubber Products Co., Ltd, which was founded in 1986, is a collection of production,
scientific research and design, product development, technical services for the integration of enterprises,
is the professional manufacturer of ship launching airbag, Pneumatic rubber fender, marine rubber fender
in China area. Company as the leading enterprise has passed the certification of CCS , ISO9001:2008,
SGS, LR etc.
Any question or requirement,please feel free to contact me!
