Specifications
1.magnetic field distribution2.high recovery rate
3.obvious energy-saving effect

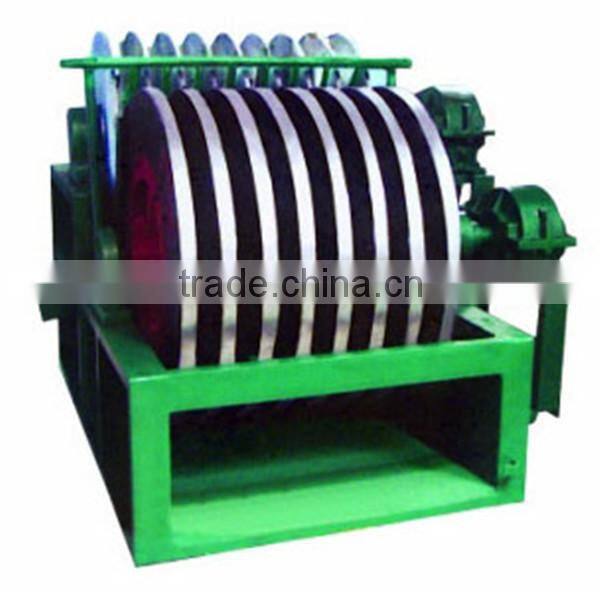

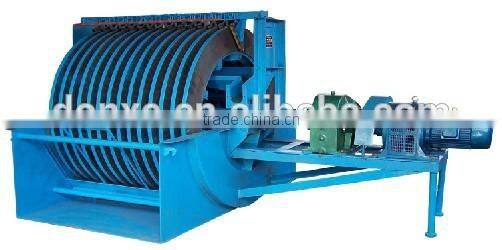

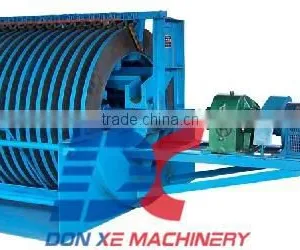

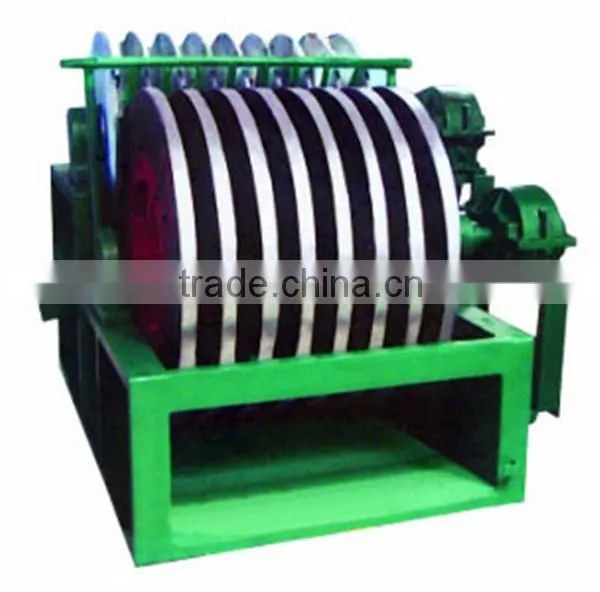

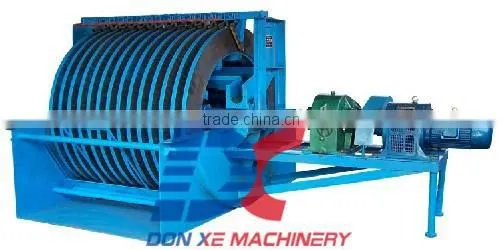

Introduction of Tailings Recycling Machine
The tailing recycling device is the newest mechanical device used in the production and recycling of the tailings in the ore beneficiation in China. The tailing recycling machine adopts magnetic induction for unloading the minerals, which greatly saves the water consumption. The device is usually installed in the sluice of the beneficiation plant. When the tailings flow through the recycling machine, the magnetic iron within the tailings will be fully recovered by the machine due to its full contact with the magnetic poles of the machine. The tailings grade can be reduced be to be around 1% in order to improve the beneficiation recycling rate.The tailing recycling machine can not only effectively prevent the pollution but also greatly reduce the production cost and improve the production efficiency. It has such advantages as low input and high yield.
Application of Tailings Recycling Machine
It is mainly used in the absorption and extraction of the magnetic minerals in the sand of river, lake and canal as well as the magnetic separation of lowly graded tailings and re-extraction and utilization of the large-scale beneficiation plants’ waste mineral slag. Meanwhile, it can also be applied to the magnetic separation of the magnetite and magnetic pyrite and the baked hematite, limonite and siderite.
Working Principle of Tailings Recycling Machine
It is mainly used in the second time separation and recovery of the waste from beneficiation with mineral devices so that the recycling rate can achieve a new level. It is produced singly and the way of production is quite unique. It can also be used together with the grinding mill and roller.
Technical Parameters of Tailings Recycling Machine:
Model | 80-4 | 80-6 | 80-8 | 100-6 | 100-8 |
Granularity (mm) | 3 | 3 | 3 | 3 | 3 |
Motor power (KW) | 2.2 | 3 | 3 | 3 | 4 |
Capacity ( t/h) | 20-40 | 20-50 | 30-60 | 30-60 | 40-70 |
Dimension (mm) | 2000×1400×1200 | 2000×1800×1200 | 2000×1800×1200 | 2000×1800× 1500 | 2000×1800×1500 |
• one year guarantee for whole machine except man-made damage.
• technical support by e-mail on workday
•during the installation and commissioning, the seller shall send technician to the site for instruction of installation and commissioning, and for training of workers.
• the buyer shall afford the travelling expense (including the expense of airline ticket, train ticket, board and lodging); the buyer shall also pay the service fee of USD 80/day/person.
• If there is any equipment failure caused by the buyer, the seller shall assist the maintenance of machines and replacement of fittings, and charges appropriate fees.
Packaging Details:
1.Outside package:Standard wooden case or bare packaging
2.Inner package: stretch film
Delivery Detail:
about 25 workdays after payments
Our company is a high-tech enterprise in Shanghai with ISO9001:2000 certificate. We are a professional manufacturer of mining crushers, industrial grinding mills and screening machines. We manufacture a wide range of stone and rock crushing machines, such as jaw crushers, shaft impact crushers, cone crushers, hummer crushers, sand makers and stone crushing line parts such as stone crushing feeders, rock crushing feeders and belt conveyors. We have formed a complete production chain.In recent years our company focus on all kinds of mineral processing engineering, and achieved a series of achievements, help many foreign buyers to establish a mineral processing production line.We have become a major manufacturer and exporter in China. We are looking forward to your inquiry and prepare to offer you best services and products at any time.
If you are interested in any product and need more detailed information,just contact me.
