Help CenterFactory High Quality Suspended Platform Spare Parts
Related Products
-
Manufacturer Top Brand Electric Scaffolds Spare PartsUS$ 60.00 - 60.00MOQ: 1 Set -
Suspended Platform Electric Box and Spare PartsUS$ 60.00 - 60.00MOQ: 1 Set
-
Manufacturer Electric Scaffolds Hoist Spare PartsUS$ 60.00 - 60.00MOQ: 1 Set
-
Smart Vehicle Garage After Sale Service Intelligent Parking SystemUS$ 2,500 - 3,000MOQ: 1 Set
-
Vertical Parking Type Car Stack Building/car Stack BuildingUS$ 1,600 - 4,900MOQ: 1 Set
Manufacturer from China---Beijing Jiuhong Heavy Industry Machinery Co.,Ltd set up in 2001 and Beijing Jiuhong brand series products have been used in every corner in China, and have been exported to more than 20 counties, such as Middle South Asia, Asian, East Asia, Europe, North America, South America, Latin, Africa, Middle East Asia etc. the brand of Beijing Jiuhong has become world famous.
Technical Parameter of factory High Quality Suspended Platform spare parts

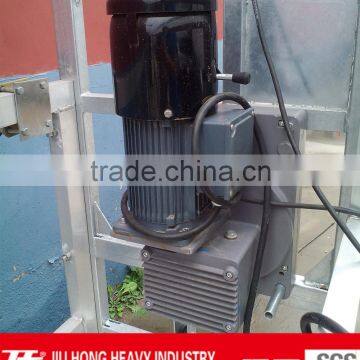

Hoist |
Model |
LTD 630 |
LTD80 |
LTD1000S |
|
Rated Lifting |
630kg |
800kg |
1000kg |
|
Lifting Speed |
9. 5m/min |
9.0m/min |
8.0m/min |
|
Power |
1.5KW |
1.8KW |
2.2KW |
|
Voltage |
220V/380v/410V |
220V/380v/410v |
380v |
|
Rotational speed |
1420r/m |
1420r/m |
1420r/m |
|
Braking moment |
15N.m |
15N.m |
15N.m |
|
Frequency |
50Hz/60hz |
50Hz/60hz |
50Hz |

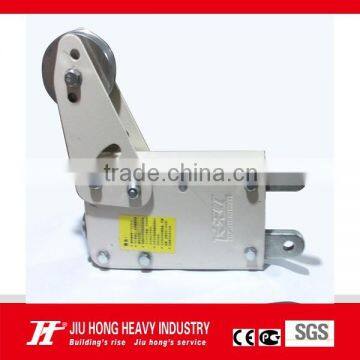

Safety lock |
Model |
LSB Series |
SAL Series |
|
Type |
Anti-tilting |
Centrifugal |
|
Allowable load |
>800kg |
>800kg |
|
Allowable force |
30kN |
30kN |
|
Cable Locking Distance |
<100mm |
<100mm |
|
Cable Locking Angle |
3°- 8° |
|
|
Cable Locking speed |
|
≥22m/min |
Model |
Electrial control box |
Working voltage |
380v |
Frequency |
50hz |
Control voltage |
36v |
Total power |
10kw |
Thermorelay |
1.1A Rated Current |
Short-Circuit Protection |
RT14-25A |
Power Line |
Three-phase Five Little System |
Wire rope |
Structure |
Diameter |
Nominal Diameter |
Normal Packing Length |
Reference Weight |
Coating Weight |
M.B.L |
Tensile Strength |
4*31SW+FC-8.30 |
8.3mm |
0.36mm |
2000m |
N.W 497Kg G.W 529Kg |
≥15g/m2 |
≥53.07 |
≥2260MPa |
|
6*19W+IWS-8.60 |
8.6mm |
0.47mm |
2000m |
N.W 614Kg G.W 639Kg |
≥15 g/m2 |
≥71.5 |
≥2260MPa |
|
4*31SW+FC-9.10 |
9.1mm |
0.42mm |
2000m |
N.W 616Kg G.W 664Kg |
≥15 g/m2 |
≥62.24 |
≥2160MPa |
1
Brazil, Russia, India, Colombia, Saudi Arabia, South Africa, Indonesia, Kuwait, UAE, Egypt, Vietnam, Thailand, Pakistan, Mauritius, Qatar, Lebanon, Libya, Honduras, Tanzania, Morocco, Mongolia, Cambodia, Myanmar, Laos, Malaysia, Philippines, Sri Lanka, Nepal, Azerbaijan, Iran, Afghanistan, Kyrgyzstan, Turkey, Syria, Cyprus, Georgia, Bahrain, Tunisia, Nigeria, Kenya, Rwanda, Zambia, Botswana, Zimbabwe, Panama, Mexico, Ecuador, Venezuela, Argentina, Uruguay, New Zealand, Papua New Guineahave imported our ZLP series products a lot.
Advantages:
a. ISO, CE and GOST certificate.
b. Steel material and A-alloy material are optional.
c. Various length of the platform available from 1m, 1.5m, 2m, 2.5m, 3m, 3.5m, 4m, 4.5m, 5m, 5.5m, 6m, 6.5m, 7m, 7.5m. (Those >7.5m will be special made)

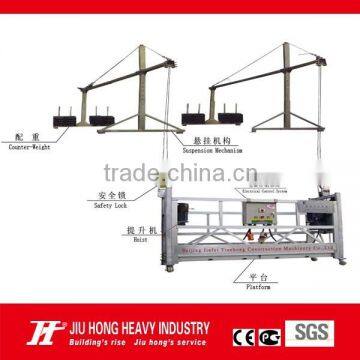

d. Equipped with safety lock, safety rope, and top limiter devices.
e. Safety wire rope is separated with the working wire rope.
f. Schneider electric components.
g. Suspension mechanism: total length is 8m, Max. Height is 21.4m.
h. Multiple available shapes are suit for different works with buildings in various situations.
i. Have 12 years professional experience in this line.
After-sales service of supplier Suspended Platform spare parts
Free of charge:
1. The equipments have one year guarantee period. If there is quality problem with any component during this period, we will change it free for you.
2. Spare partsfor one year usage will be provided freely.
3. After-sale service hot line will be on service for 24 hours.
4. Online servicesare available during our work hours. The solution will be shown to you by online video demonstration.
5. Technical information, including manual of installation and maintenance, installation video, are enclosed.
Beijing Jiuhong Heavy Industry Machinery Co.,Ltd set up in 2001. It is a professional and accurate technique corporation which specializes in researching and producing suspended platform, construction elevator, building material hoist, tower crane and Stereo garage etc.
The company covers an area of 3.1 million square meters,Building areas are 2.3 million square meters,the registered capital is 8 million yuan,and own the fixed assets of 80 million yuan. The employees more than 500 people (5 advanced engineer, 15 engineer and technology worker are 27.)
In China, Beijing Jiuhong brand series products have spread all over the construction area, the product quality is first class, we could produce the all kinds of special construction machinery and non-standard equipments according to the requirements of customers.
Beijing Jiuhong brand series products have been used in every corner in China, and have been exported to more than 20 counties, such as Middle South Asia, Asian, East Asia, Europe, North America, South America, Latin, Africa, Middle East Asia etc. The volume of export has reached to 30% of total year sales volume, the brand of Beijing Jiuhong has become world famous.
More products available:
---- ZLP Series Suspended Platform
------SS Series material hoist/building hoist/construction hoist
---- SC Series construction elevator
---- QTZ series of tower cranes
Contact Person: Coral Chen
Mobile:+86-15032080112 Skype: coral.chen9
WhatsApp:+86-15032080112 Wechat:+86-15032080112
