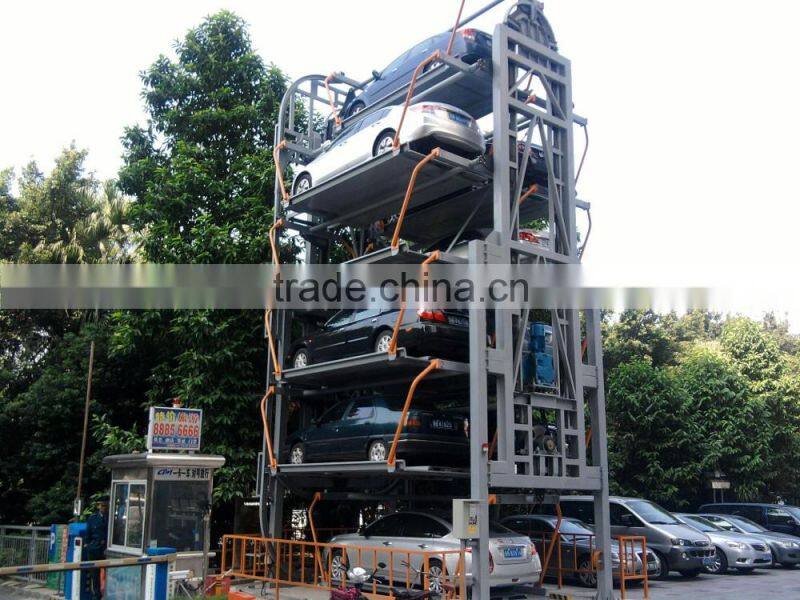

Vertical parking Type car stack building/car stack building
- 3000 Set / Sets per Month
- Tianjin Port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | Parking Lift | Height (mm): | 5000 | Width (mm): | 1850mm |
Place of Origin: | Beijing, China | Brand Name: | JH | Model Number: | PCX |
Warranty: | 1 Years |
Product Description

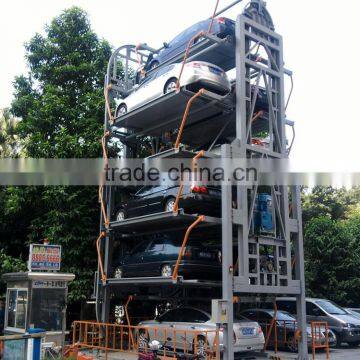

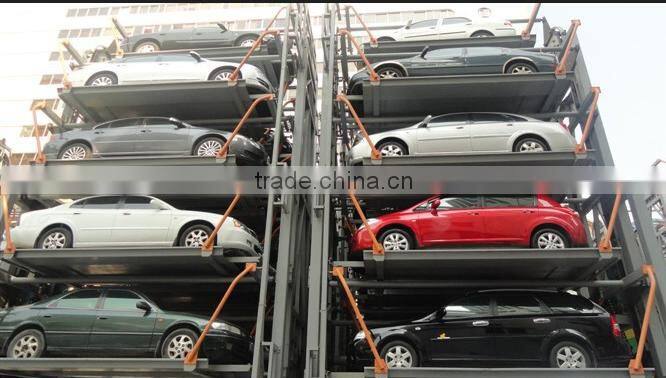

Vertical parking Type car stack building/car stack building
Manufacturer from China---Beijing Jiuhong Heavy Industry Machinery Co.,Ltd set up in 2001 and Beijing Jiuhong brand series products have been used in every corner in China, and have been exported to more than 20 counties, such as Middle South Asia, Asian, East Asia, Europe, North America, South America, Latin, Africa, Middle East Asia etc. the brand of Beijing Jiuhong has become world famous.

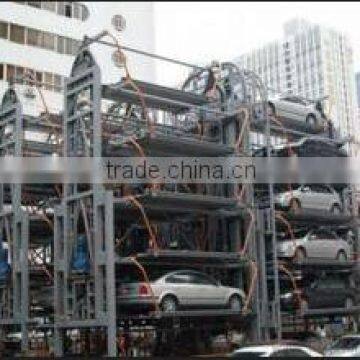

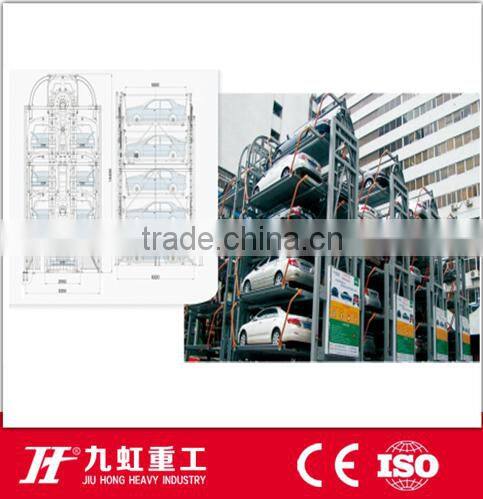

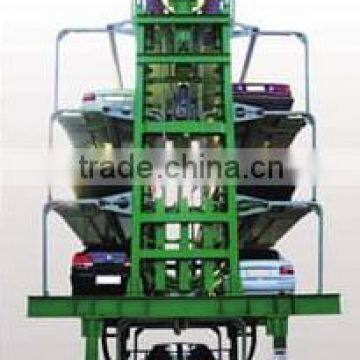

Mini smart vertical rotary car parking system Working Principle
Vertical cycle series cubic parking garage which is a mechanical vehicle parking equipment that adopt parking system doing vertical cycle movement equipment.

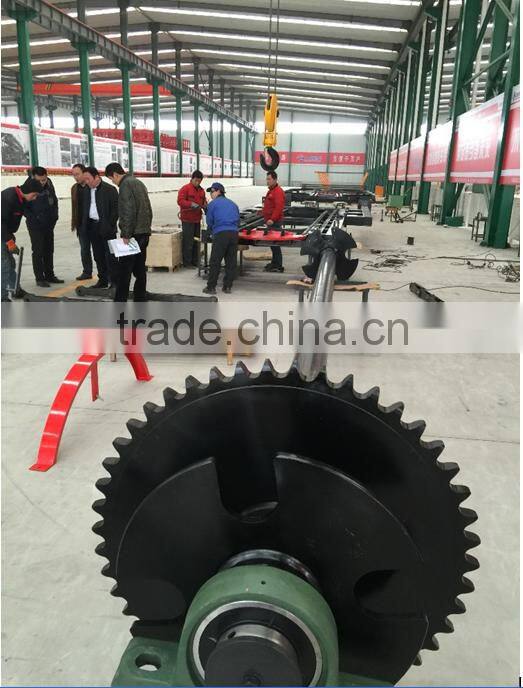

Which working principle is the motor drive the transmission mechanism through gear.In the traction chain,install a parking car frame each certain distance,when the motor starts,the car parking frame doing cycle movement along with the chain.which achieve car parking purpose.
Mini smart vertical rotary car parking system features:
1 Flexible, vertical cycle series parking system covers small area, flexible, and can be set up independently,
also can be attached into building, also can be more than one combination,small vertical cycle series parking equipment can be Installed in the living area, beside the building, save the land space.
2) Rapidly, parking car and taking car out in short time.
3)Economically,build vertical type parking system can save the considerable cost of purchasing land, conductive to the rational planning and optimize the design,improve the comprehensive economic benefit.
4) Save electric power, vertical circulating mechanical parking system typically does not require forced ventilation, no large-area lighting, power consumption only 35% of the common underground parking garage.

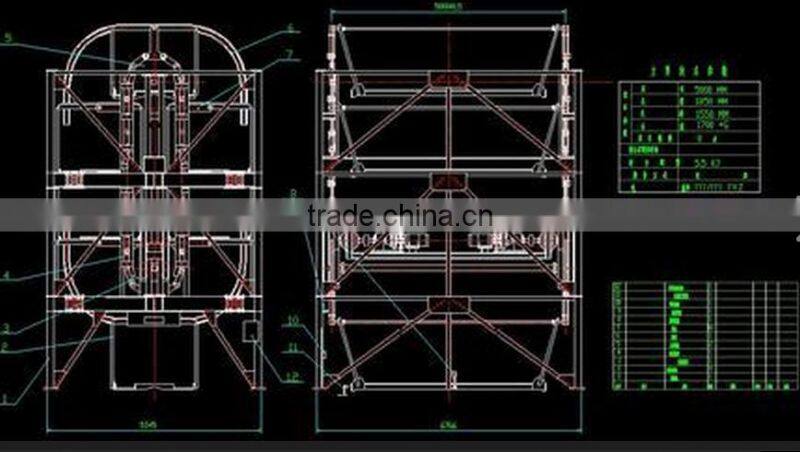

Technical Parameter of Vertical parking Type car stack building/car stack building
Vertical Rotary Model | |
Item | Specification |
Car Dimension*Weight | ≤5000mm*1850mm*1550mm*1700kg |
Car no. | 8-12 per set |
Power | 7.5kw/380v/50Hz/3Phase |
Max. Car Out-time | ≤130s |
Lifting model | Motor+Chain |
Control system | PLC |
Operation model | Slot card+digital button+remote-control |
Advantages:
1.Less land occupation, large capacity, high density parking.
2.Single garage could be disposed multi-entrances to improve the using efficiency and relieve congestion at the peak period.
3.Automatically revolving and U-turn while parking and picking out for users convenience.
4.Full use of spaces and flexible building garage according to area and users’ request.
5.Flexible structures as the whole ground structure or half underground structure, steel structure or concrete structure.
6.High efficiency and fast speed: realized multi-user’s parking and picking at the same time; average parking time is no more than 90 seconds.
Safety Feature
1. Photoelectric detection device for car over height and accidentally entrance of the people and cars.
2. Fixed style anti-falling frame device
3. Sound and light warning device
4. Electromagnetic style anti-falling device
5. Safety warning plate
6. Oil cylinder top limit switch device
7. Car blocking device on platform
8. Phase order protection device
9. Limit switch device
10.Sudden stop device
11.Grounding protection device of over currency,over loading, over or under voltage.
12.Lifting and sliding combined locking device
13.Hydraulic protection device

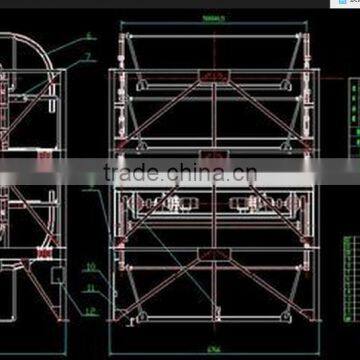

technology and details :
Package and shipping:
- Iron frame to fix equipment.
- All structures fixed on the frame by screws.
- All electric wires and motor put into carton.
- Iron frame and carton will be covered by stretch film.
- Each package will twine three stretch film to prevent water.
- During the unloading, please use forklift to unload the iron frame.
1, | Color: | As your request |
2, | Package: | Export stand. protect the Goods from moisture, rain, rust, corrosion and shock, etc. |
3, | Logo: | As your request |
4, | MOQ: | one sets |
5, | CE Accepted: | Yes |
6, | Warranty | 12 month |
7, | Production Capacity: | 300 sets per month. |
8, | Payment Term: | L/C,T/T |
Installlation:
We Provide the free training for your engineers on the operation and maintenance of the machine or We send our engineers to your company for help you .
Certificate:
Beijing Jiuhong Heavy Industry Machinery Co.,Ltd set up in 2001. and JIUHONG Parking has been providing OEM service to one of the world largest parking equipment companies for years. We are committed and dedicated to continually supply the most reliable and cost-efficient parking systems and related products to our customers.Shandong JIU Road Parking Equipment Co., Ltd. located in Shandong Gaotang - Village of painting and calligraphy, afiliated to the Beijing JIUHONG Heavy Industry Group Company, the Group consists of seven subsidiaries: Beijing JIUHONG Heavy Industry Machinery Co., Ltd., Beijing Huixin International Trading Company, Beijing FeiTianhong Construcion Mall Co., Ltd, Shandong JIUHONG Heavy Industries Machinery Co., Ltd., Shandong Guangan Tech-testing Services Ltd., Shandong JIUYI Elevator Co., Ltd, Shandong JIU Road Parking Equipment Co., Ltd. Mainly products and business: Tower Crane, Construction Elevator, Passenger Elevator, Material Hoist, Intelligent Stereo Garage's developing and research, producing, marketing and services.
More products available:

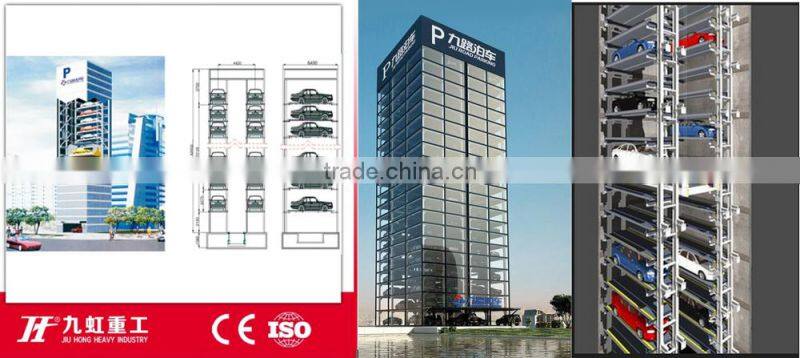

--------- Tower parking/Vertical Lifting Model

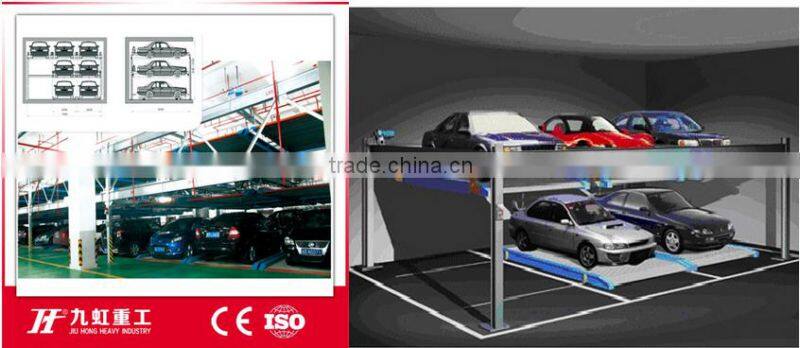

--------- Double level parking system

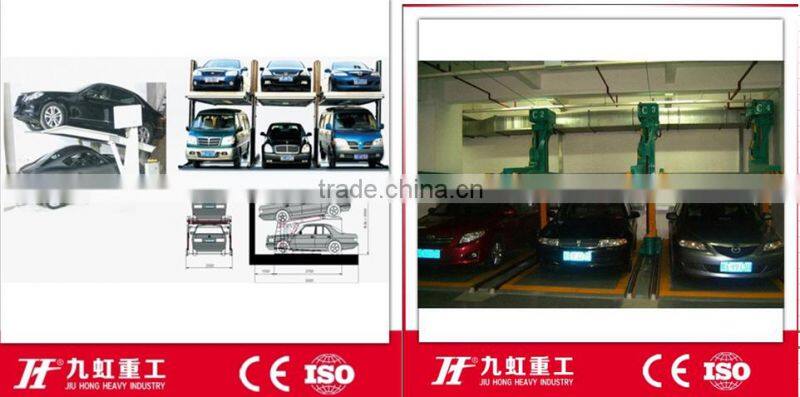

--------- Puzzle parking /Lifting-transverse Model
Contact : Coral Chen
Mob:+86 15032080112
whatsapp/wechat: +86 15032080112
Skype: coral.chen9
QQ:332564778
