JST ZH1.5 Single Row High Amp Power Connectors
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SCT | |
| Model Number | SCT1501 | Type | Adapter | |
| Application | Automotive | Gender | Other, MALE & FEMALE |
Product Description
Specifications
1.JST ZH1.5 single row high amp power connectors2.good quality.
3.shipment ontime &well after-sale serve
JST ZH1.5 single row high amp power connectors
1.Specifications:
Current Rating : 1A AC,DC Voltage Rating : 100V AC,DC Temperature Range : -25 deg C ~+85 deg C Contact Resistance : 20m Omega Max. Insulation Resistance : 500M Omega Min. Withstanding Voltage : 500V AC/minute
Housing Part No:SCT1501H- XXP Poles:2-16P. Material:Nylon66 UL94V-0 Packing Q'TY:1000pcs/bag Mates With SCT1501T Series Terminal
Terminal Part No:SCT1501-T Thickness:0.20mm Material:Phosphor bronze Finish:Tin Plated Wire Range:AWG#26-#30 Insulation O.D. : 1.0mm ( Max.) Q'TY:15,000pcs/reel Mates With SCT1501H- Series Housing
Wafer Part No:SCT1501WV/WR-XXP Poles:2-16P Material:Nylon66 UL94V-0 Packing Q'TY:1000pcs/box Mates With SCT1501H- Series Housing
Part No:SCT1501WV/WR-S-XXP Poles:2-13P Material:Nylon46 UL94V-0 Cotact:Brass,Tin Plated Packing Q'TY:1000pcs/box Mates With SCT1501H- Series Housing |

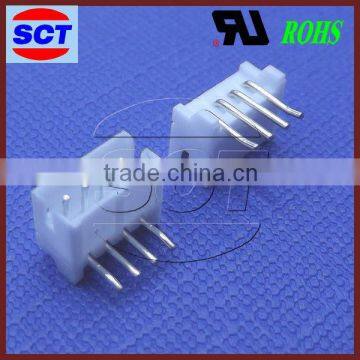

2.The picture of the product series:
3.The drawing of the product series :
4.About Scondar:
Scondar connector Established in 2001.We are fully committed to producing housings, wafers, terminals, ,female headers, pin headers, wire harness and others.
