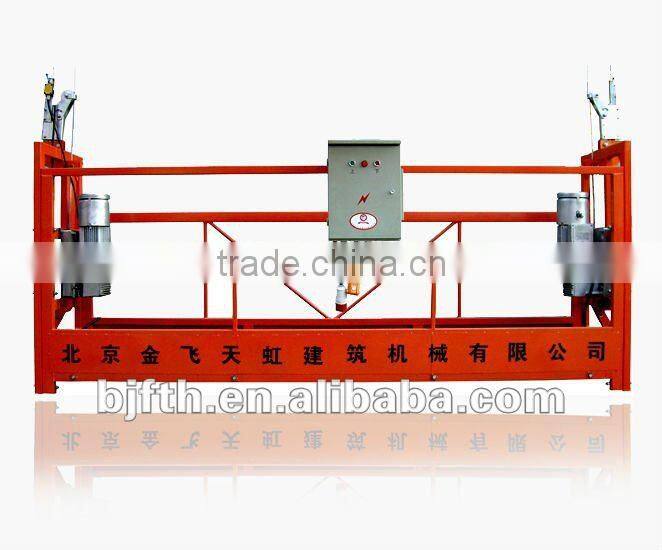

ZLP500/630/800 Swing Stage Cardle Suspended Platform

Specifications

rope suspended platform:
1.safe and efficient
2.easy to install & operate
3.reasonable price
4.good after-sale service

ZLP250, ZLP500, ZLP630, ZLP800, ZLP1000 rope suspended platform



A. Introduction of ZLP rope suspended platform



   ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorate, maintain and clean the external walls of high-level  buildings and exterior construction such as cement coating, veneering, installing the glass on curtain walls, painting as well as cleaning and maintenance. It also can be applied to the operation of big vessels, bridges and dams etc.



B. Features of ZLP rope suspended platform



1. Safety rope and safety lock

Two safety ropes are set independently. The suspended platform installs safety locks. When the platform tilts, the hoist system automatically acquires major faults; meanwhile, the safety locks will block the wire ropes to ensure the safety of the operator and workers.

2. Combination of the bottom platform

According to customers’ different requirements, the work platform can be combined in different shapes such as U-shape, circle-shape, fan-shape, etc.

3. Convenient and reliable electric control system

 The electric control system is equipped with protection switches; operators can choose single- machine operation or two machine operation system. It is equipped with movable operation box, external power box and up limitor which can prevent against going upward dangerously.

 4. Reasonable designed structure and Attractive appearance

The steel structure applies thin-wall of rectangle steel pipe, compact and rational designed.



C. Parameters of ZLP rope suspended platform



Modle	ZLP1000	ZLP800	ZLP630	ZLP500	ZLP250
Rated load(kg)	1000	800	630	500	250
Lifting speed (m/min)	8.3+0.5	8.3+0.5	8.3+0.5	8.3+0.5	9.6+0.5
Platform Dimension (m)	7.5	7.5	6	5	2.5
Lifting Height(m)	100	100	100	100	100
Voltage(V)	380/220 etc	380/220 etc	380/220 etc	380/220 etc	380/220 etc
Frequency(HZ)	50/60HZ	50	50	50	50

NOTE: The Voltage and Frequency could up to different countries' standard.



  Electrical Box



Hoist





safety lock
