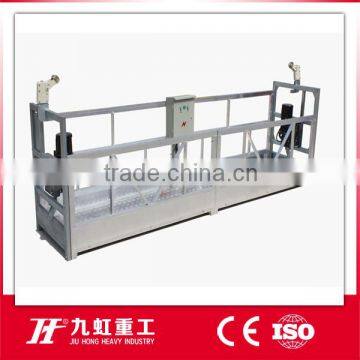

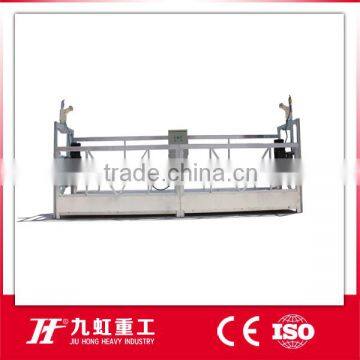

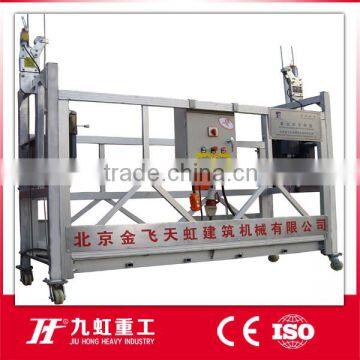

ZLP Suspended Platform/suspended cradle/suspended gondola
belongs to electrical-driven climbing and decorating machinery, mainly used to maintain and clean the external walls of high-rise buildings and exterior construction such as cement coating, veneer, paints, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to the operating of big vessels and bridges dams etc.
Applying the suspended platform can release scaffold free, reduce the costruction cost and the efficiency will be greatly in creases. Mean while, the platform is simple, safe, easy transfer & operate.
Parameter for ZLP800 and ZLP630 Suspended Platform/suspended cradle/suspended gondola :
Name | Technical parameter | |||
Model | ZLP800 | ZLP630 | ||
Rated load | 800Kg | 630Kg | ||
Lifting speed | 8-10m/min | 8-10m/min | ||
Platform Dimension L×W×H(mm)Spray plastics corrosion-resistant | 7500(2.5m*3)×720×1300 | 6000(1+2+3m)×720×1300 | ||
Lifting Height | 100 m | 100 m | ||
Cable | 100 m | 100 m | ||
Steel rope (specially-made) | diameter 9.1mm | diameter 8.3mm | ||
Hoist | Pulling power | 7.84KN | 6.17KN | |
electric motor | model | YEJ100L-4 | YEJ90L-4 | |
Power | 1.8KW*2 | 1.5KW*2 | ||
Voltage | 380V | 380V | ||
Rotational speed | 1420rpm | 1420rpm | ||
Braking moment | 15Nm | 15Nm | ||
Safety lock | Permission force of impact | 30KN | 30KN | |
Locking Cable Angle | 3°~8° | 3°~8° | ||
Suspension mechanism(Galvanized ) | Front beam overhang | 1.3~1.5m | 1.3~1.5m | |
Support adjustable height | 1.44~2.14m | 1.44~2.14m | ||
Counterweight | 1000kg | 800kg | ||
20’ft container | 8sets | 9sets | ||
40’ft container | 13sets | 14sets | ||
NOTE: The Voltage and Frequency could up to different countries' standard.

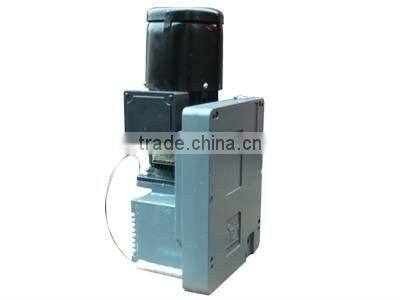

Hoist

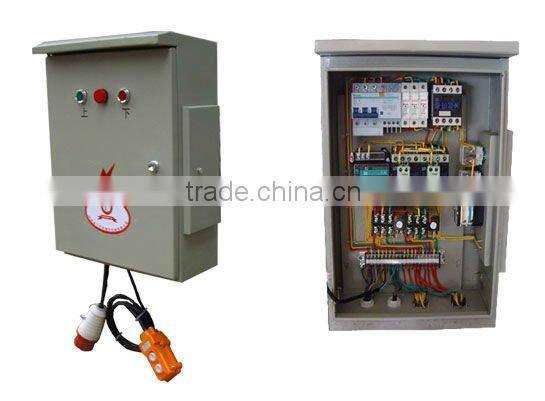

Electric control box
safety lock

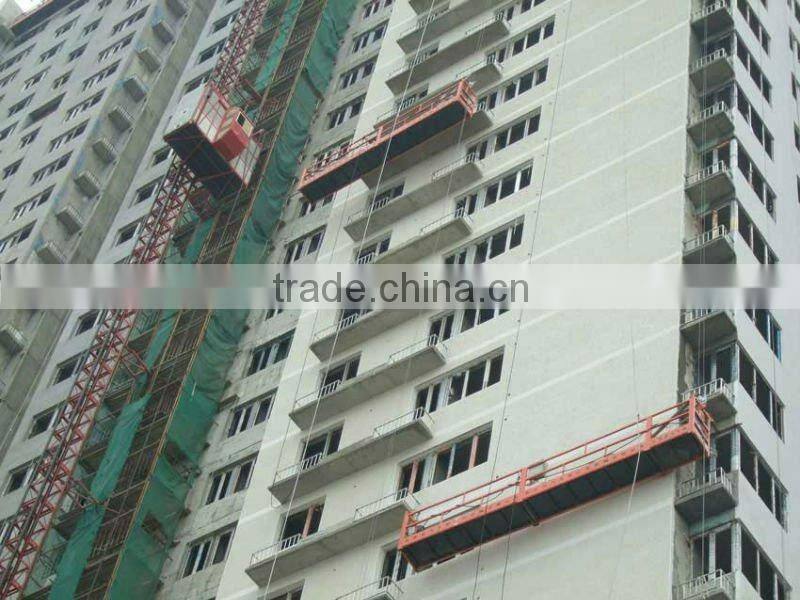

Project photo:
