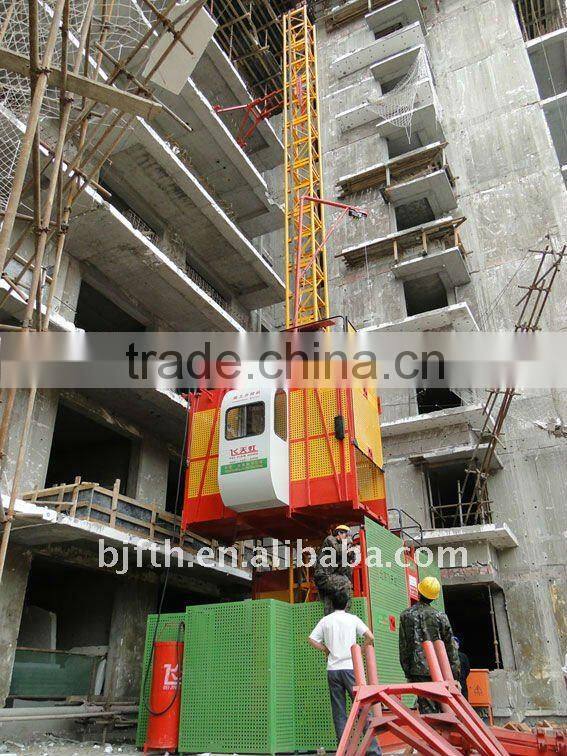

2000kg Rated Load Lifting Hoist
- Tianjin
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | Jinfei Tianhong | |
| Model Number | SC200/200 | Usage | Residential Elevators | |
| Drive Type | Other, Rack & Pinion | Elevator Type | Passenger Elevators |
Product Description
Specifications
1. lifting hoist2. construction hoist machine
3. scissor lift
1. lifting hoist
2. construction hoist machine
SC200/200 Building Hoist adopted computer aided design. Comparing with traditional building hoists, it is attractive, light, easy to handle, secure, applicable, and popular. Depending on special needs of regular or irregular sections, the lifting capacity can reach up to 1~2 tons, and the running speed can reach 28~38m/min. Moreover, VVVF speed regulation and PLC enable 0~68 limitless speed, automatic layer selecting and leveling as required. SC200/200 Building Hoist is excellent in technical performance, more secure in operating mechanism, and more compact in structure.
Name | Unit | SC100 | SC100/100 | SC200 | SC200/200 |
Rating loading capacity | Kg | 1000 | 2×1000 | 2000 | 2×2000 |
Passenger number | Person | 12 | 2×12 | 16 | 2×16 |
Rating rising rate | M/min | 36 | 36 | 36 | 36 |
Max. promoting height | m | 200 | 200 | 200 | 200 |
Motor power | KW | 2×11 | 2×2×11 | 3×11 | 2×3×11 |
Cage size | m | 3*1.3*2.5 | 3*1.3*2.5 | 3*1.3*2.5 | 3*1.3*2.5 |
650 mast section weight | Kg | 124 | 148 | 124 | 148 |
650 mast section length | mm | 650×650 ×1508 | 650×650 ×1508 | 650×650 ×1508 | 650×650 ×1508 |
Steeve rating rising weight | Kg | 200 | 200 | 200 | 200 |
