Factory price of tower crane

FOB Price

US$ 10,000 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	construction
Rated Loading Capacity	6 ton	Rated Lifting Moment	630KN.m
Max. Lifting Load	6 ton	Max. Lifting Height	120m
Span	60m	Place of Origin	Beijing, China
Brand Name	Jiuhong	Model Number	TC
Certification	CE	Warranty	One year
After-sales Service Provided	Engineers available to service machinery overseas

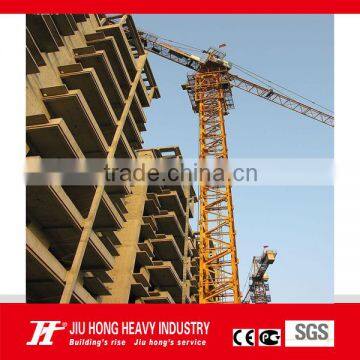

QTZ63C (5013) Tower Crane

With Hydraulic Self-raising Mechanism,

Variable-frequency Slewing Mechanism,

Safety Monitoring System (Black Box)

With Operation Data Display Screen

With Famous Jiangte Motors

With Various Safety Devices

Main Technical Parameters

Model	QTZ63C(5013)
Jib Length (M)	50
Free Height Under Hook (M)	40
Total Height Under Hook (M)	70
Max. Load (T)	6
Tip Load (T)	1.3
Wall-attachment Device (set)	2
Main Material (mm)	Standard Mast Section: ∠16014 Reinforcing Mast Section: ∠16016
Mast Section Dimension (m)	1.615×1.615 ×2.5
Hoisting Speed (a=2)m/min	80/40/10
Min. Stable Falling Speed (m/min)	5
Slewing Speed (r/min)	0-0.62
Radius-changing Speed (m/min)	40/20
Jacking-up Speed (m/min)	0.6
Total Motor Power (kw)	32.8
Power Supply	380V/50HZ
Weight of Independent Structure (T)	33.28
Counterweight (T)	11.48
Base Form	#shaped Beam without Ballast
Containers Needed for Shipment (70m)	640’HC + 120’GP
