Beijing Jiuhong Topkit Used Tower Crane

Name: Beijing Jiuhong Topkit Used Tower Crane
Brand: Jiuhong
SKU: 117003883
Availability: InStock

Beijing Jiuhong Heavy Industry Machinery Co., Ltd.

US$ 10,000 - 40,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

construction

Rated Loading Capacity:

6 ton

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction

Rated Loading Capacity 6 ton

Rated Lifting Moment 630KN.m

Max. Lifting Load 6 ton

Max. Lifting Height 120m

Place of Origin Beijing, China

Brand Name Jiuhong

Model Number TC

Certification CE

Warranty One year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

QTZ63C (5013) Tower Crane

With Hydraulic Self-raising Mechanism,

Variable-frequency Slewing Mechanism,

Safety Monitoring System (Black Box)

With Operation Data Display Screen

With Famous Jiangte Motors

With Various Safety Devices

Main Technical Parameters

Model	QTZ63C(5013)
Jib Length (M)	50
Free Height Under Hook (M)	40
Total Height Under Hook (M)	70
Max. Load (T)	6
Tip Load (T)	1.3
Wall-attachment Device (set)	2
Main Material (mm)	Standard Mast Section: ∠16014 Reinforcing Mast Section: ∠16016

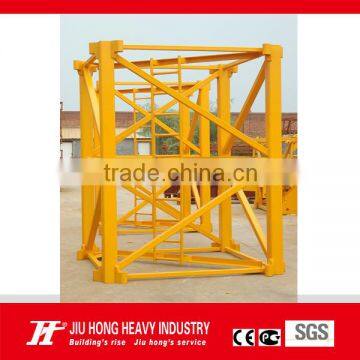

Mast Section Dimension (m)	1.615×1.615 ×2.5
Hoisting Speed (a=2)m/min	80/40/10
Min. Stable Falling Speed (m/min)	5
Slewing Speed (r/min)	0-0.62
Radius-changing Speed (m/min)	40/20
Jacking-up Speed (m/min)	0.6
Total Motor Power (kw)	32.8
Power Supply	380V/50HZ
Weight of Independent Structure (T)	33.28
Counterweight (T)	11.48
Base Form	#shaped Beam without Ballast
Containers Needed for Shipment (70m)	640’HC + 120’GP
