China Manufacturer for ZLP Series Mast Climbing Work Platform(factory Price)

Name: China Manufacturer for ZLP Series Mast Climbing Work Platform(factory Price)
Brand: JH-jiuhong
Availability: InStock

FOB Price

US$ 1,100 - 3,500 / Set

1 Set(Min. Order)

Port ANY PORT
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	JH-jiuhong
Model Number	ZLP800 ZLP630 ZLP1000		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

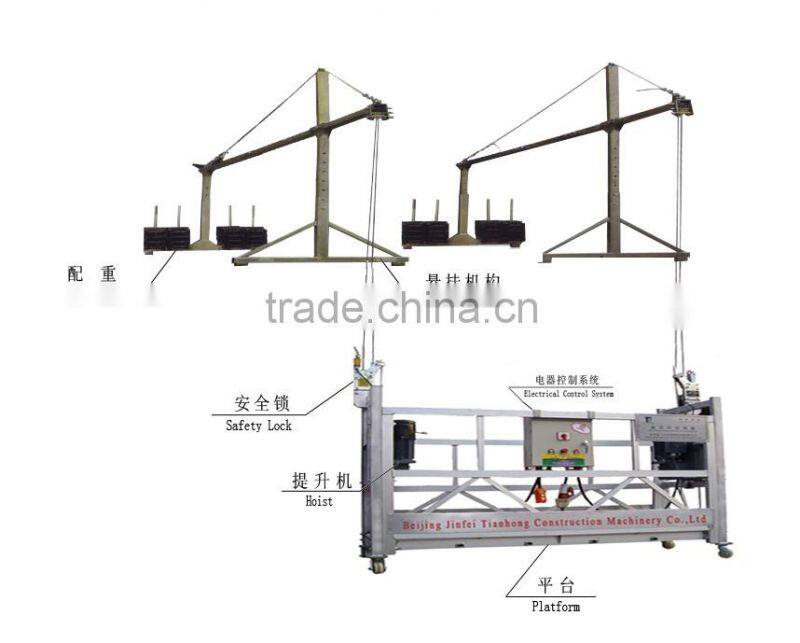

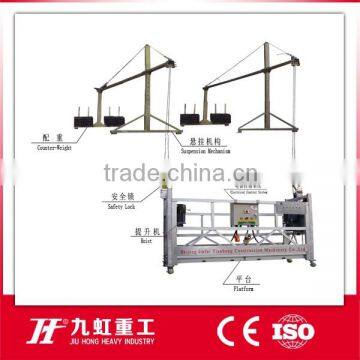

Product Application

ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorating, maintaining and cleaning the external walls of high-level mutil-storey buildings and exterior construction such as cement coating,veneering, painting, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to operating of big vessels and bridges, dams, etc.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) belongs to electrical-driven climbing and decorating machinery.
4) Running in a high automatization and intellectualization,no pollution .
5) Apply steel material, Aluminum Alloy, hot galvanized, well antirust.

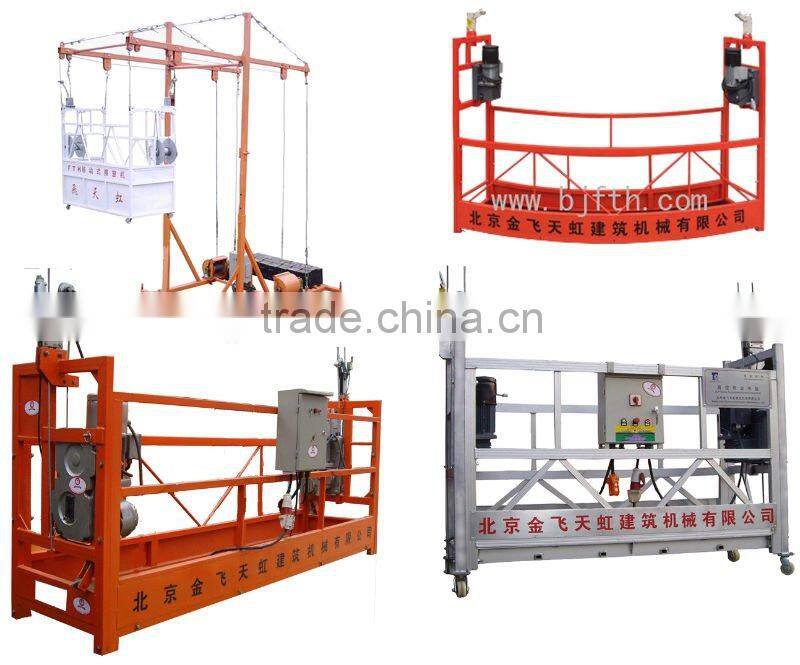

ZLP series can be widely used parapet wall and complicated building in different height. And we can also supply customized platform to meet different requirements from customers.
1. The length of platform can be adjusted within 1M-12M.
2. The working height can be adjusted with your need.
3. The Voltage can be adjusted with your need.
4. Three platform's materials:
1) Aluminum alloy
2) steel
3) steel with dipping Zinc

Product parameters

Name			Technical parameter
Model			ZLP800	ZLP630
Rated load			800Kg	630Kg
Lifting speed			8-10m/min	8-10m/min
Platform Dimension L×W×H(mm)Spray plastics corrosion-resistant			7500(2.5m*3)×720×1300	6000(1+2+3m)×720×1300
Lifting Height			100 m	100 m
Cable			100 m	100 m
Steel rope (specially-made)			9.1mm	8.3mm
Hoist	Pulling power		7.84KN	6.17KN
	electric motor	model	YEJ100L-4	YEJ90L-4
		Power	1.8KW*2	1.5KW*2
		Voltage	380V/50Hz	380V/50Hz
		Rotational speed	1420rpm	1420rpm
		Braking moment	15Nm	15Nm
Safety lock	Permission force of impact		30KN	30KN
	Locking Cable Angle		3°~8°	3°~8°
Suspension mechanism	Front beam overhang		1.3~1.5m	1.3~1.5m
	Support adjustable height		1.44~2.14m	1.44~2.14m
Counterweight			1000kg	800kg
20’ft container			8sets	9sets
40’ft container			13sets	14sets

Detailed Images

Main Features

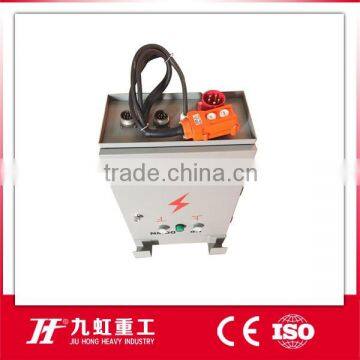

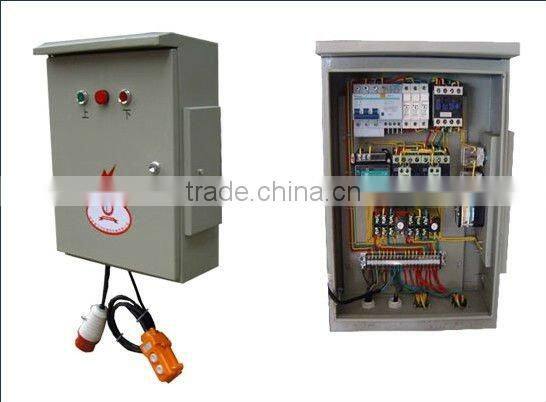

Name: Power Distribution Box
Brand: Schneider
Original: French
Using the latest technology, high-end electrical components, Compared with the previous generation products, it`s function, safety and usability and stability have been greatly improved.

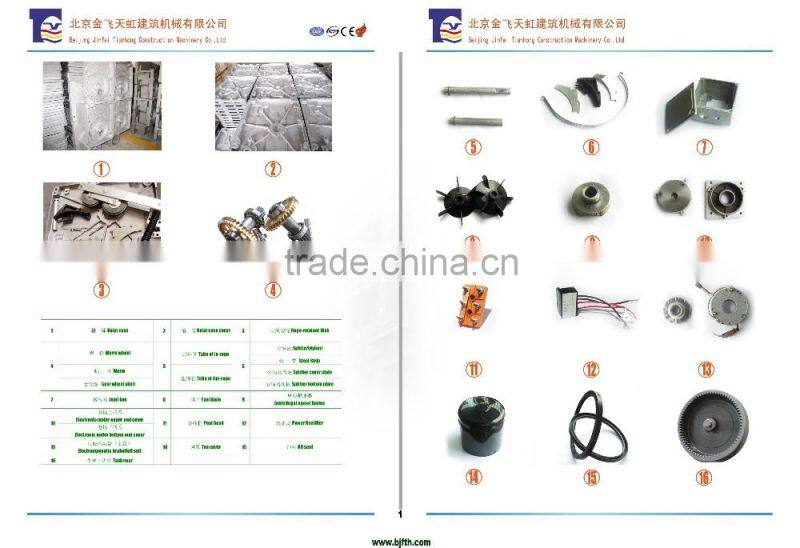

Machine Parts

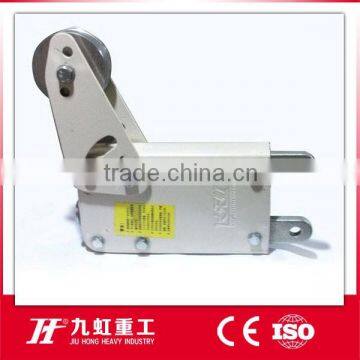

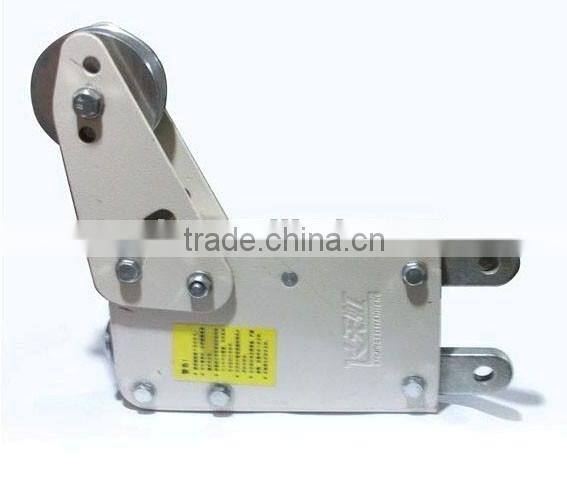

Name: Safty lock
Brand: JH-jiuhong
Original: China
The rated load of it is more than 800kg, the diameter is 8.3mm or 9.1mm, the allowable force is 30kn, and the cable locking angle is 3°~8°.

Main Features

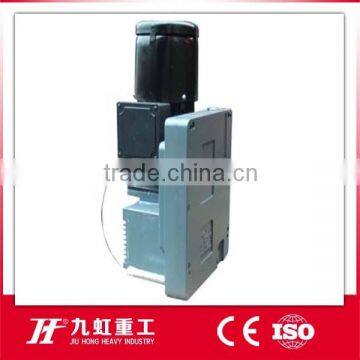

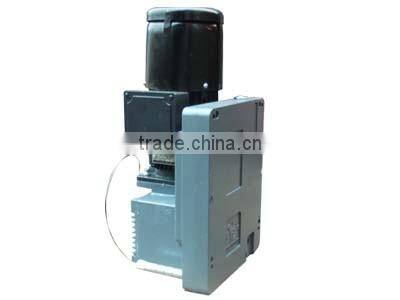

Name: LTD Hoist

Brand: JH-jiuhong
Original: China
LTD series of new type repairable hoist is a tatest product our company reserch and development through the kinds of test, it prove that can be self repair and used again for the wire rope`s forcedefromation, bending, breaking in order to greatly increases the working life.

Machine Parts

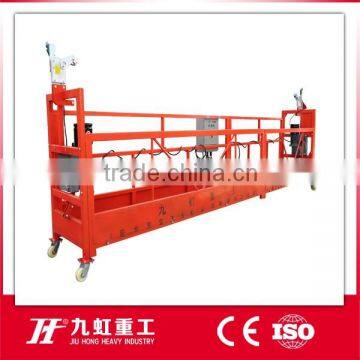

Name: suspended platform
Brand:JH-jiuhong
Original: China
The utility model has the advantages of low cost, high efficiency, simple operation, easy shift, convenient and practical, safe and reliable.

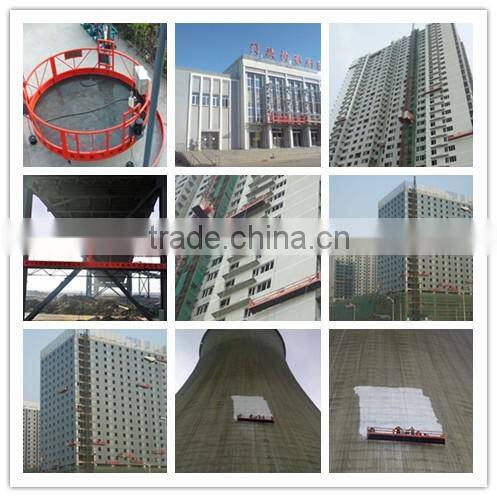

Engineering Case

Factory Profile

Exhibition

Customer Visit

Certifications

Production flow

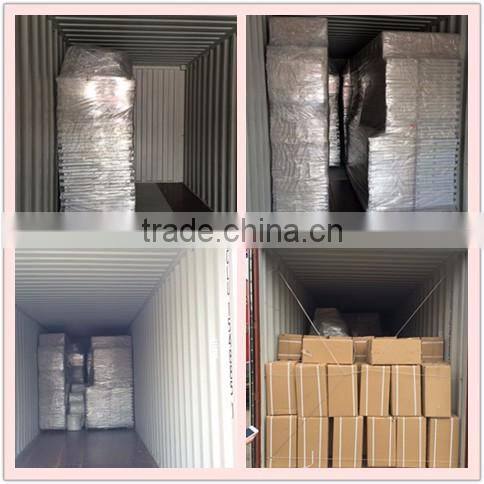

Packing & Delivery

Packaging
Size	6000 (L) * 720 (W) * 1300 (D)
Weight	1.2T
Packaging Details	The normal package is carton, wooden cases, steel shelf(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	7500 (L) * 720 (W) * 1300 (D)
Weight	1.2 T
Packaging Details	The normal package is carton, wooden cases, steel shelf(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
