Chinese Factory CE Passed Building Cleaning Electric Scaffolding for Boom Lift

Chinese Factory CE Passed Building Cleaning Electric Scaffolding for Boom Lift photo-1
Chinese Factory CE Passed Building Cleaning Electric Scaffolding for Boom Lift photo-2

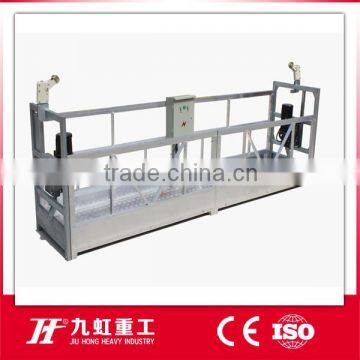

Chinese Factory CE Passed Building Cleaning Electric Scaffolding for Boom Lift photo-3

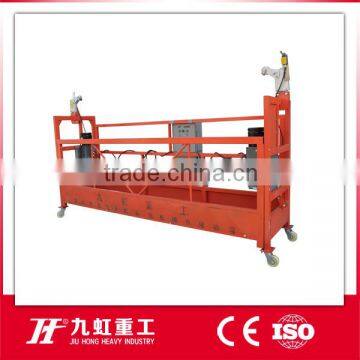

Chinese Factory CE Passed Building Cleaning Electric Scaffolding for Boom Lift photo-4

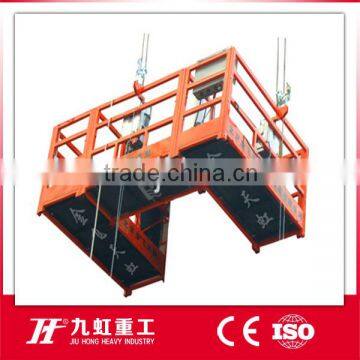

Chinese Factory CE Passed Building Cleaning Electric Scaffolding for Boom Lift photo-5

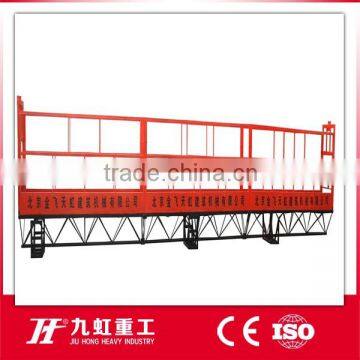

Chinese Factory CE Passed Building Cleaning Electric Scaffolding for Boom Lift photo-6
US$ 1,000 - 3,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zambia
Brand Name:
Jiuhong
Model Number:
ZLP800
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjinport
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zambia
Brand Name Jiuhong
Model Number ZLP800
After-sales Service Provided Engineers available to service machinery overseas
Product Description

ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorating, maintaining and cleaning the extermal walls of high-level mutil-story buildings and exterior construction such as cement coating,veneering, painting, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to operating of big vessels and beidges, dams, etc.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) belongs to electrical-driven climbing and decorating machinery.
4) Running in a high automatization and intellectualization,no pollution .
5) Apply steel material, Aluminum Alloy, hot galvanized, well  antirust.

Product parameters
Name
Technical parameter
Model
ZLP800
ZLP630
Rated load
800Kg
630Kg
Lifting speed
8-10m/min
8-10m/min
Platform Dimension L×W×H(mm)Spray plastics corrosion-resistant
7500(2.5m*3)×720×1300
6000(1+2+3m)×720×1300
Lifting Height
100 m
100 m
Cable
100 m
100 m
Steel rope  (specially-made)
9.1mm
8.3mm




Hoist
Pulling power
7.84KN
6.17KN



electric motor
model
YEJ100L-4
YEJ90L-4
Power
1.8KW*2
1.5KW*2
Voltage
380V/50Hz
380V/50Hz
Rotational speed
1420rpm
1420rpm
Braking moment
15Nm
15Nm
Safety lock
Permission force of impact
30KN
30KN
Locking Cable Angle
3°~8°
3°~8°
Suspension mechanism
Front beam overhang
1.3~1.5m
1.3~1.5m
Support adjustable height
1.44~2.14m
1.44~2.14m
Counterweight
1000kg
800kg
20’ft container
8sets
9sets
40’ft container
13sets
14sets
Detailed Images

Machine Parts

Name: suspended platform

Brand:JH-jiuhong

Original: China

The utility model has the advantages of low cost, high efficiency, simple operation, easy shift, convenient and practical, safe and reliable.

Main Features

Name:Power Distribution Box
Brand: Schneider
Original: French
Using the latest technology, high-end electrical components, Compared with the previous generation products, it`s function, safety and usability and stability have been greatly improved.

Machine Parts

Name: LTD Hoist
Brand: JH-jiuhong
Original: China
LTD series of new type repairable hoist is a tatest product our company reserch and development through the kinds of test, it prove that can be self repair and used again for the wire rope`s forcedefromation, bending, breaking in order to greatly increases the working life.

Main Features

Name: Safty lock
Brand: JH-jiuhong
Original: China
The rated load of it is more than 800kg,  the diameter is 8.3mm or 9.1mm, the allowable force is 30kn, and the cable locking angle is 3°~8°.

Certifications
production flow
Packing & Delivery
Packaging
Size
6000 (L) * 720 (W) * 1300 (D)
Weight
1.2 T



Packaging Details
 The normal package is carton, wooden cases, steel shelf(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
7500 (L) * 720(W) * 1300 (D)
Weight
1.2 T



Packaging Details
 The normal package is carton, wooden cases, steel shelf(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
