FA1046-NP/C/T 10.4 inch Industrial Touch Screen Monitor With DVI VGA Input
- 4 or 5 wire resistive touch panel;
- HDMI/DVI input;
- Touch screen control;
- With VGA input, connecting directly to PC, as a Personal Computer;
- With AV input, connecting directly to DVD player, as a car entertainment system;
- With touch screen operation, can as a display terminal unit of industrial equipment.
10.4 inch monitor with standard aspect ratio
The FA1046-NP/C/T is a 10.4 inch monitor with a 4:3 aspect ratio, similar to the regular 17" or 19" monitor you use with your desktop computer. The standard 4:3 aspect ratio is well suited to applications that require a non-wide screen aspect ratio, such as CCTV monitoring and certain broadcast applications.

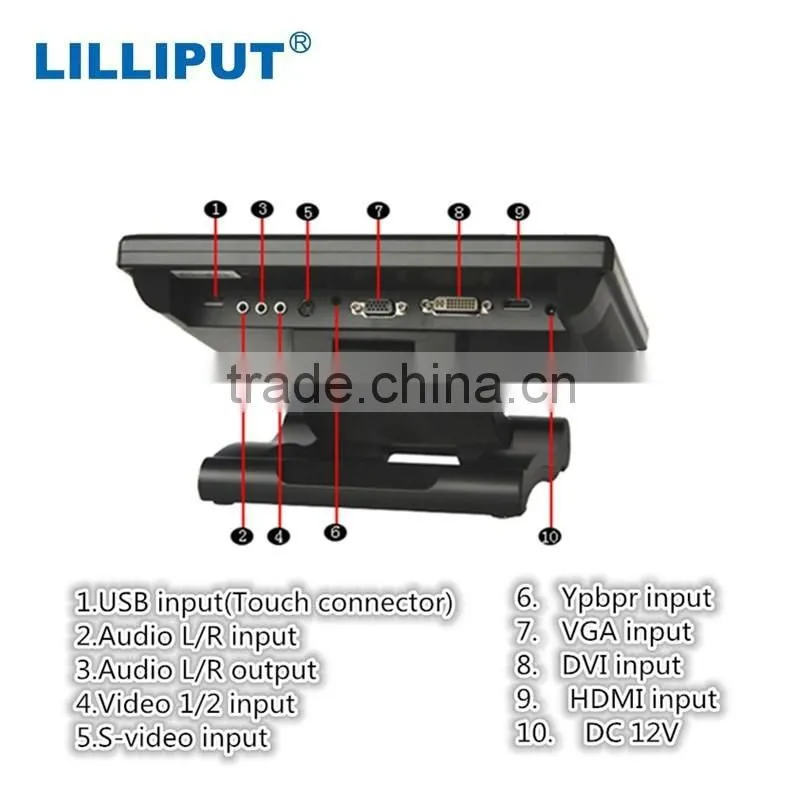

Connection friendly: HDMI, DVI, VGA, YPbPr, Composite and S-Video
Unique to the FA1046-NP/C/T, it also features a YPbPr video input (which is used for receiving analogue component signals) and an S-Video input (popular with legacy AV equipment). We recommend the FA1046-NP/C/T to customers who plan to use their monitor with a range of AV equipment, as this 10.4 inch monitor is certain to support it.
Touch screen model available
The FA1046-NP/C/T is available with a 4-wire resistive touch screen. Lilliput continually stocks both non-touch screen and touch screen models, so customers can make a choice that best suits their application.
Perfect CCTV monitor
You won't find a more suitable CCTV monitor than the FA1046-NP/C/T. The 4:3 aspect ratio and wide selection of video inputs means this 10.4 inch monitor will work with any CCTV equipment, including DVRs.

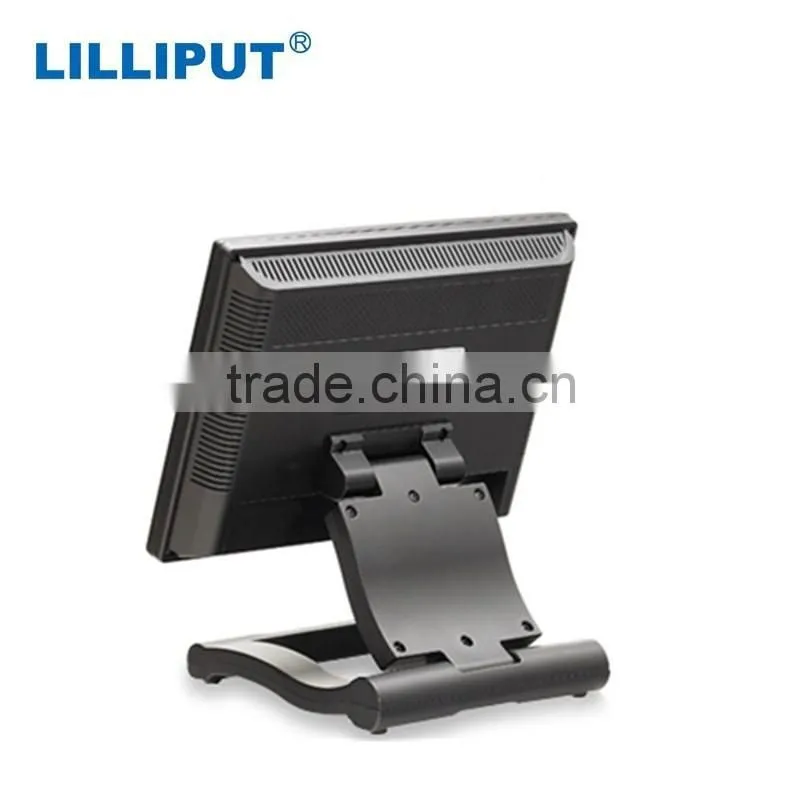

Folding Bracket
Possible to stretch & folding
Wall Mount possible
VESA 75mm Mount Holes
There are VESA 75 mm Mount holes (FPMPMI) On rear side of the monitor.
Speaker Built-in
As the built-in speaker,if there is audio output it does not need to connect external speaker equipment
| Description | 10.4 inch TFT LCD Touch Screen Monitor |
| Signal Input | HDMI x 1 / DVI-D x 1 / YPbPr x 1 S-video x 1 / VGA x 1 / Video x 2 / Audio x 1 |
| LCD Size | 10.4 inch |
| Resolution | 800 x 600 |
| Touch Panel | 4-wires resistive (USB Touch as standard) Optional: RS232 Touch Interface |
| Backlight | LED |
| Dot Pitch | 0.088(W) x 0.264(H) mm |
| Active area | 211.2(W) x 158.4(H) mm |
| Color System | PAL-4.43,NTSC-3.58 |
| Brightness | 250cd/m2 |
| Contrast | 500:1 |
| Aspect Ratio | 4:3 |
| Viewing Angle | 140°(H) / 110°(V) |
| Voltage | DC12V |
| Power consumption | ≤8w |
| Speaker | x1(Built-in backside) |
| Audio output | ≤1.2w |
| Work temperature | -20~60℃ |
| Store temperature | -30~70℃ |
| Size(mm) | 226L x 200W x 39H 260L x 200W x 70H (with bracket) |
| Weight | 1554g |
| Support OS(Touch Driver) | Windows XP / Windows Vista / Windows 7 (32 bit & 64 bit) / Windows 8 (32 bit & 64 bit) / WinCE 6.0 / Linux Kernel 2.4 / Linux Kernel 2.6 |
Accessories:
4 pin Y/C signal cable: 1 piece
HDMI signal cable: 1 piece (optional)
Touch pen: 1 piece
Drive disk: 1 piece
Remote control: 1 piece
DVI line 24+1/DVI-D: 1 piece (optional)
VGA15-pin cable: 1 piece
VIDEO&AUDIO input/output cable: 3 piece
USB connection cable: 1 piece
Home DC adapter: 1 piece
YPBPR signal connect cable: 1 piece
Manual: 1 copy
