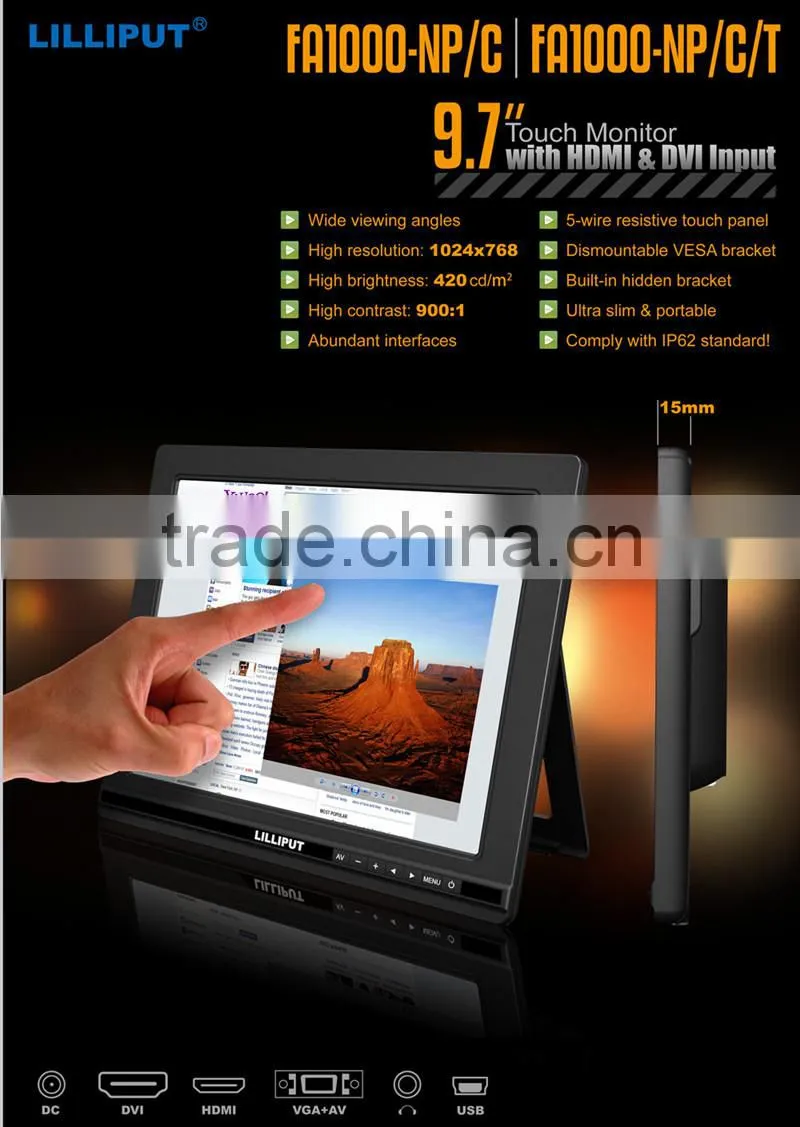

The FA1000-NP/C/T features a 5 wire resistive touchscreen and HDMI, DVI, VGA and composite inputs.
Wide viewing angles;
High resolution: 1024x768;
High brightness: 420cd/m2
High contrast: 900:1;
Abundant interfaces;
5-wire resistive touch panel;

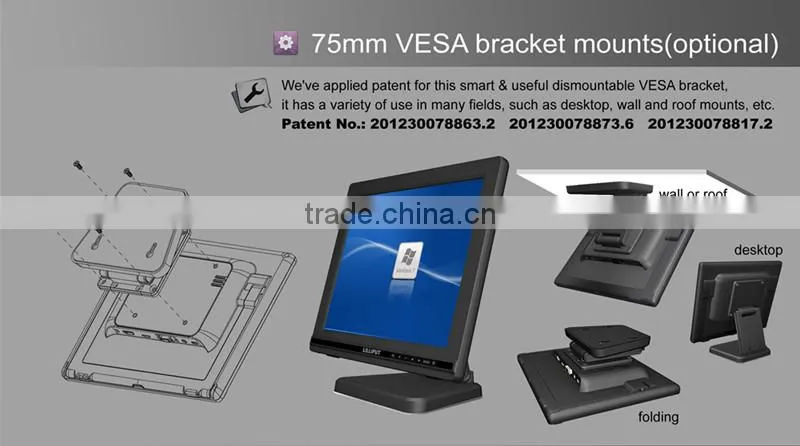

Dismountable VESA bracket;

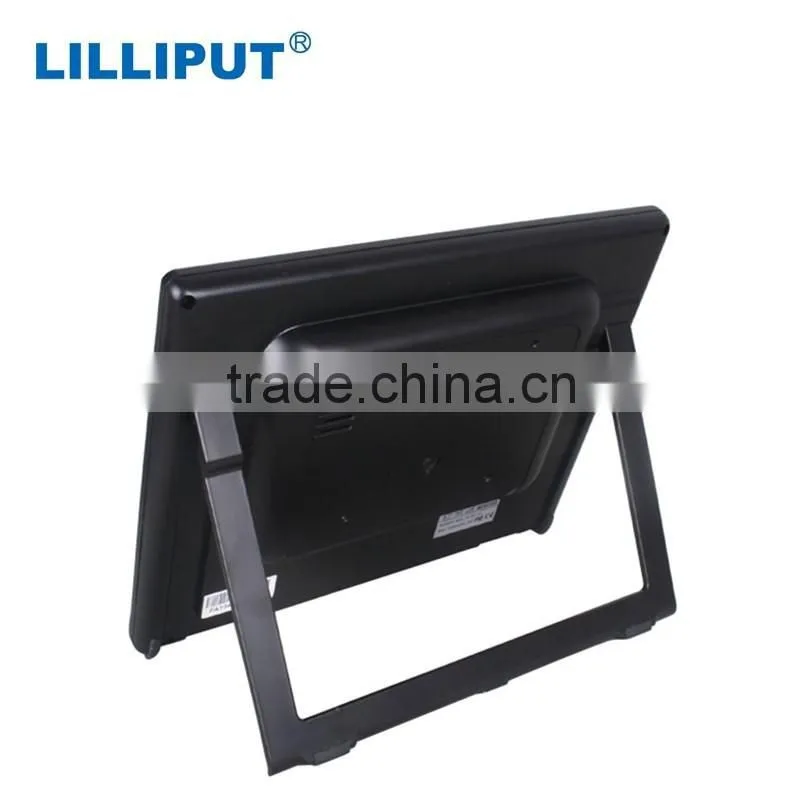

Built-in hidden bracket;
Ultra slim & portable;
Comply with IP62 standard!
Natively high resolution 10" monitor
Natively 1024×768 pixels, FA1000 is a high resolution 10" monitor. What's more, FA1000 can support video inputs up to 1920×1080 through HDMI. The standard XGA resolution (1024×768) ensures applications are displayed in perfect proportion (no stretching or letterboxing!) and shows our customers applications at their best.
Display Screen |
9.7" LED backlit (4:3) |
Resolution |
1024×768, support 1920×1080 |
Color System |
PAL-4.43, NTSC-3.58 |
Touch Panel |
5-wire resistive |
Contrast Ratio |
900:1 |
Brightness |
420cd |
Viewing Angle |
160°/ 174°(H/V) |
Input Signal |
HDMI, DVI, VGA, AV |
HDMI Mode |
480i/p,576i/p,720p,1080i(50/60),1080p(50/60) |
Input Voltage |
DC 7-24V |
Current |
560mA |
Power Consumption |
≤10W |
Dimension(LWD) |
234.4 × 192.5 × 29mm |
Weight |
625g / 1125g (with VESA bracket) |
Accessories: | |
HDMI Type A-C cable |
1pcs |
14Pin SKS+VGA cable |
1pcs |
HDMI to DVI cable |
1pcs |
DC 12V power adapter |
1pcs |
Remote control |
1pcs |
Mini USB cable |
1pcs |
Drive disk |
1pcs |
Touch pen |
1pcs |
Manual |
1pcs |
Optional |
5m VGA Cable |
