Help CenterLilliput TM-1018/O/P 10" IPS HDMI Monitor With Multi-touch Capacitive Screen Vector Scope Audio Level Meter
Related Products
-
Lilliput TM-1018/S 10" IPS 3G-SDI Monitor With Touch Vector Scope Waveform FunctionNegotiableMOQ: 10 Units -
Lilliput 10-inch Lcd Monitor With Hdmi High Resolution 1280*800 3G-SDI InputNegotiableMOQ: 10 Units
-
TM-1018/O/P 10.1" IPS HDMI Monitor With Waveform, Audio Level Meter, Peaking Filter, False Colors, HistogramNegotiableMOQ: 10 Units
-
Lilliput 10.1 Inch IPS 1280*800 SDI HDMI Camera Display For 4k CameraNegotiableMOQ: 10 Units
-
Lilliput 10.1 Inch IPS Capacitive Screen HDMI Monitor For DSLR CameraNegotiableMOQ: 10 Units
Small unit, Big wisdom
Lilliput creatively integrated waveform, vector scope, video analyser & touch control into on-camera monitor, which provides Luminance/Color/RGB histograms, Luminance/RGB parade/YCbCr parade Waveforms, Vector scope and other waveform modes; And measurement modes such as Peaking, Exposure & Audio level meter. These assist users to accurately monitor when shooting, making and playing movies/videos.
Level meter, Histogram, Waveform & Vector scope can be displayed horizontally at the same time;
Professional waveform measurement & color control to realise and record Natural color.
Advanced Functions
RGB histogram, color histogram, luminance histogram,
luminance waveform, YCbCr parade waveform,
RGB parade waveform, vector scope & audio level meter.
Histogram
Histogram consist of RGB, Color & Luminance histograms.
l RGB histogram: shows the red, green, and blue channels in overlay histogram.
l Color histogram: shows histograms for each of the red, green, and blue channels.
l Luminance histogram: shows the distribution of brightness in an image as a graph of luminance.
The 3 modes can be selected to meet users' best needs and view visually the exposure of whole and each
RGB channels. Users have the full contrast range of video for easy color correction during post production.
Waveform
Waveform monitoring consist of Luminance, YCbCr parade & RGB parade Waveforms, which used
for measuring the brightness, luminance or chroma values from a video input signal. It not only
can warn the user for out-of-range conditions such as overexposure errors, but also assist
with colour correction & camera white and black balance.
Note: Luminance waveform can be enlarged horizontally on the bottom of display.
Vector scope
Vector scope shows how saturated the image is and where the pixels in the image land on the color
spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color
gamut range in real time.
Audio Level Meter
The Audio Level Meters provide numerical indicators and headroom levels.
It can generate accurate audio level displays to prevent errors during monitoring.
Functions:
> Camera Mode > Center Marker > Screen Marker > Aspect Marker > Aspect Ratio> Check Field
> Underscan > H/V Delay > 8×Zoom > PIP > Pixel-to-Pixel > Freeze Input > Flip H / V> Color Bar
Touch Control Gestures
1. Slide up to active the shortcut menu.
2. Slide down to hide the shortcut menu.
Parameters:
Dislay |
Panel |
10.1" LED IPS |
Physical Resolution |
1280×800, support up to 1920×1080 |
|
Aspect Ratio |
16:9 |
|
Brightness |
350cd/m² |
|
Contrast |
800:1 |
|
Viewing Angle |
170° / 170°(H/V) |
|
|
Input
|
HDMI |
1 |
Composite |
1 |
|
TALLY |
1 |
|
VGA |
1 |
|
|
Output
|
HDMI |
1 |
VIDEO |
1 |
|
Audio |
Speaker |
1 (built-in) |
Ear Phone Slot |
1 |
|
Power |
Current |
1200mA |
Input Voltage |
DC 7-24V |
|
Battery Plate |
V-mount / Anton Bauer mount / |
|
|
F970 / QM91D / DU21 / LP-E6 |
|
Power Consumption |
≤12W |
|
Environment |
Operating Temperature |
0°C~50°C |
Storage Temperature |
-20°C~60°C |
|
Dimension |
Dimension(LWD) |
250×170×29.6mm |
Weight |
630g |

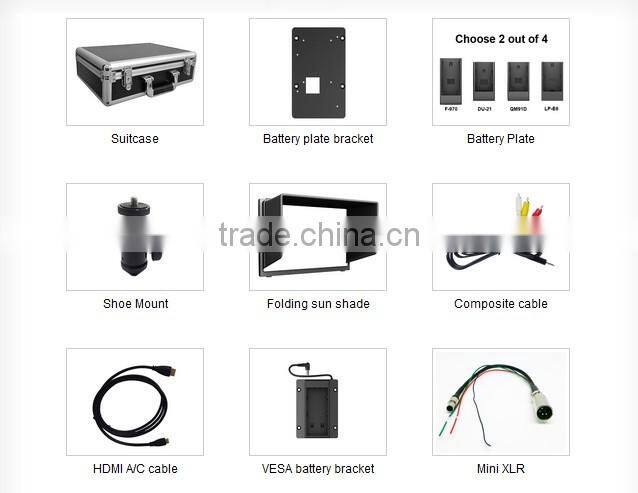

Accessories:
1. Folding sun shade |
1 piece |
2. VESA battery plate |
1 piece |
3. Battery plate (F-970, QM91D, DU21 or LP-E6) |
2 pieces |
4. HDMI A/C cable |
1 piece |
5. Mini XLR |
1 piece |
6. Composite cable |
1 piece |
7. Video output cable |
1 piece |
8. Shoe mount |
1 piece |
9. Battery plate bracket |
1 piece |
10. 12V DC adapter |
1 piece |
11. Gimbal bracket |
1 piece |
12. Suitcase |
1 piece |
13. V-mount / Anton Bauer mount (optional) |
1 piece |
14. VGA cable (optional) |
1 piece |
15. VESA folding bracket (optional) |
1 piece |
16. Li-ion battery (optional) |
1 piece |
