Specifications
7" All In One PCIndustrial Computer
Panel PC
OS: Windows CE 5.0
LCD Panel PC for Industrial Application

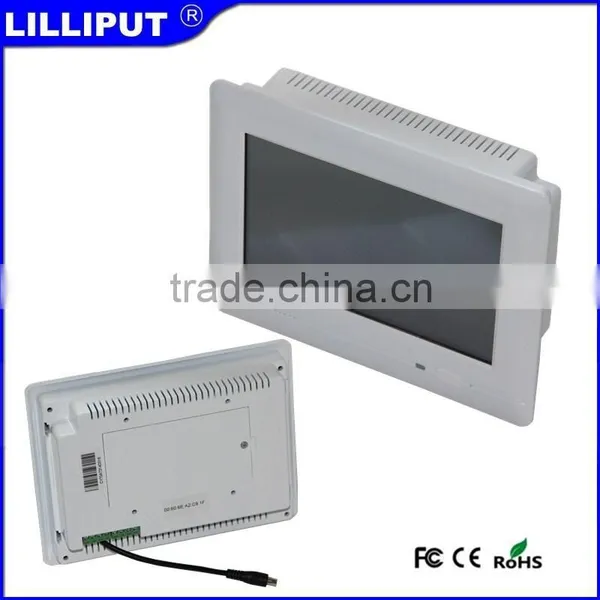

GK-7000, a highly performance embedded industrial control device, which made by our company. It has a core CPU of S3C2440 processor (based on ARM Frame), with Microsoft Windows CE 5.0 operating system. With features of rich resource, interfaces, low consumption and high reliability, etc.
GK-7000 has the same integrated developing environment with PC, users can use Embedded Visual C++ 4.0(the same developing environment & entire compatible API, including MFC with PC’s Visual C++), and Visual Studio 2003,Visual Studio 2005, etc. which makes developing application interfaces and writing widget’s matter processing codes easily.
About Mounting Process for GK-7000
1. Mounting the whole device into the wall. (ps: the thickness of wall should be within 15mm)
2. Insert the 4 iron sheets to the sockets at the back of device. (as the guiding lines of above chart)
3. Lock the 4 screws (semicircle 4*20) up to the holes of iron sheets until the end.
About VISA Mounting Process for GK-7000
Lock the 4 screws (semicircle 04) through the holes of iron sheet or wall up to the standard VISA sockets at the back of device. (Ps: with the standard of thickness is 1mm for iron sheet or wall, the length of screw is 6mm; when the thickness of iron sheet or wall added by 1mm, as well as the length of screw accordingly, and so forth)
Screen |
7" Color TFT LCD |
Resolution/Brightness |
800×480 / 300 cd/m2 |
Input Mode |
Touch |
DC Input |
9V—12V |
Audio Output |
≤1.2W |
Power Consumption |
10W—12W |
Interfaces |
RS232/RS485/SD slot(up to 2G)/Ethernet |
CPU |
ARM9 32bit 400MHZ processor |
Memory |
64MB FLASH,128MB SDRAM |
Dimension(LWD) |
200×151×50 mm |
Weight |
546g(without battery)/ 610g (with battery) |
Windows CE 5.0 | |
Visual Basic,EVC supports | |
USB I/F (active sync) | |
Keyboard & Mouse support | |
1. USB connection line 1 piece
2. Touch pen 1 piece
3. Drive DC 1 piece
4. Screw & Iron sheet 4 piece*2
5. Manual 1 piece
6. Power switch cable 1piece(optional)
7. DC Adapter 1piece(optional)
8. Battery 1piece(optional)
