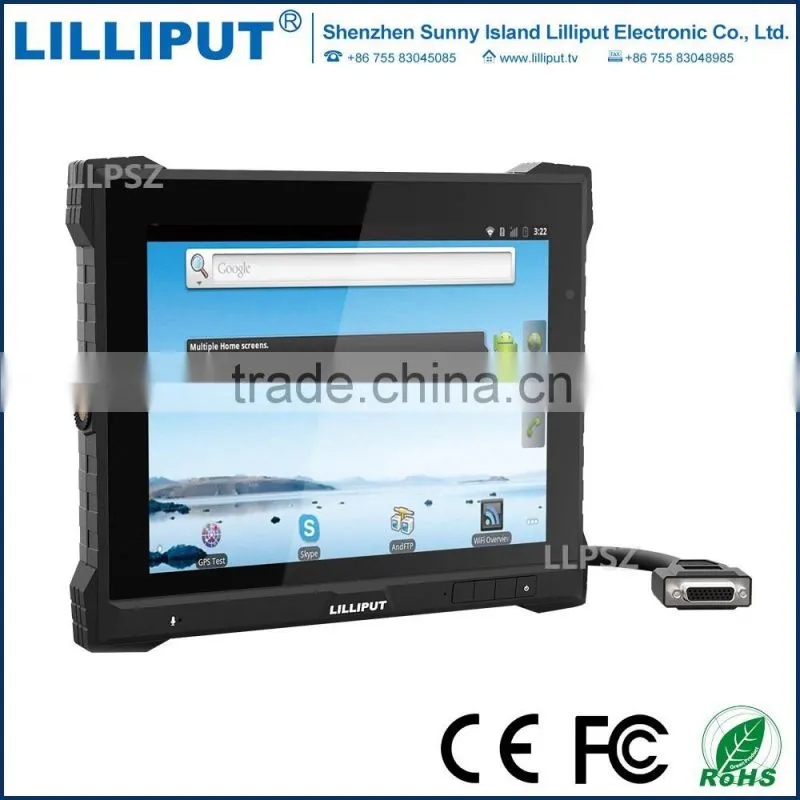

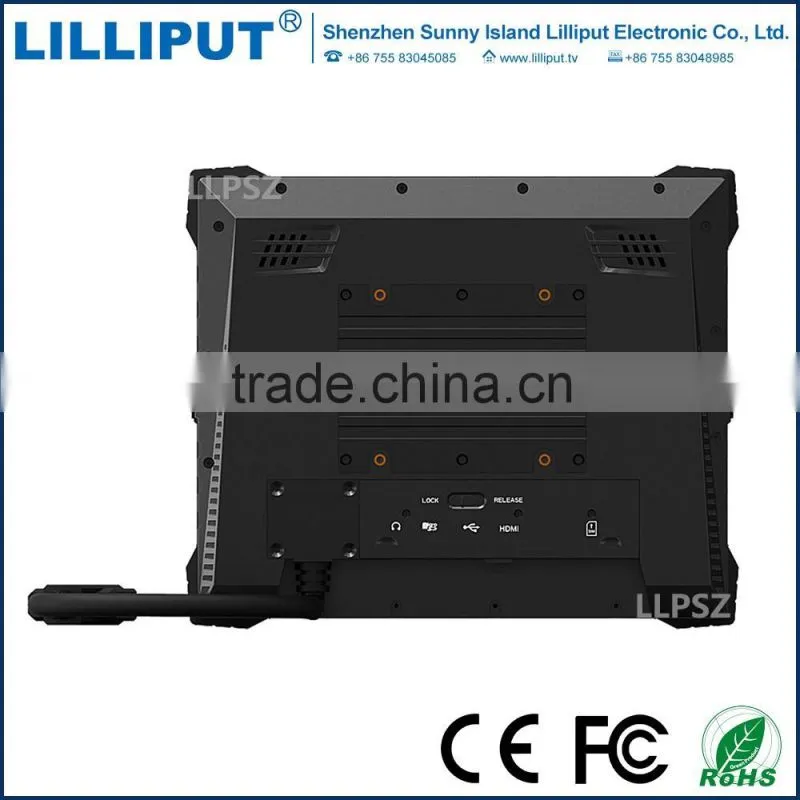

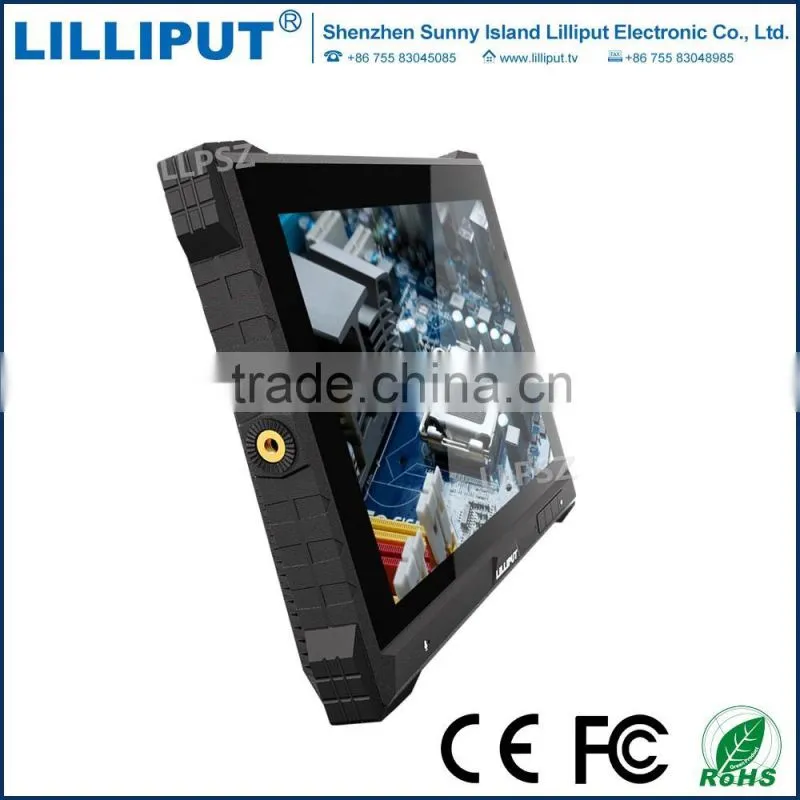

IP64 Lilliput 9.7 inch Android Based Vehicle Tracking System
9.7" Rugged Mobile Data Terminal
Model Number: PC-9715

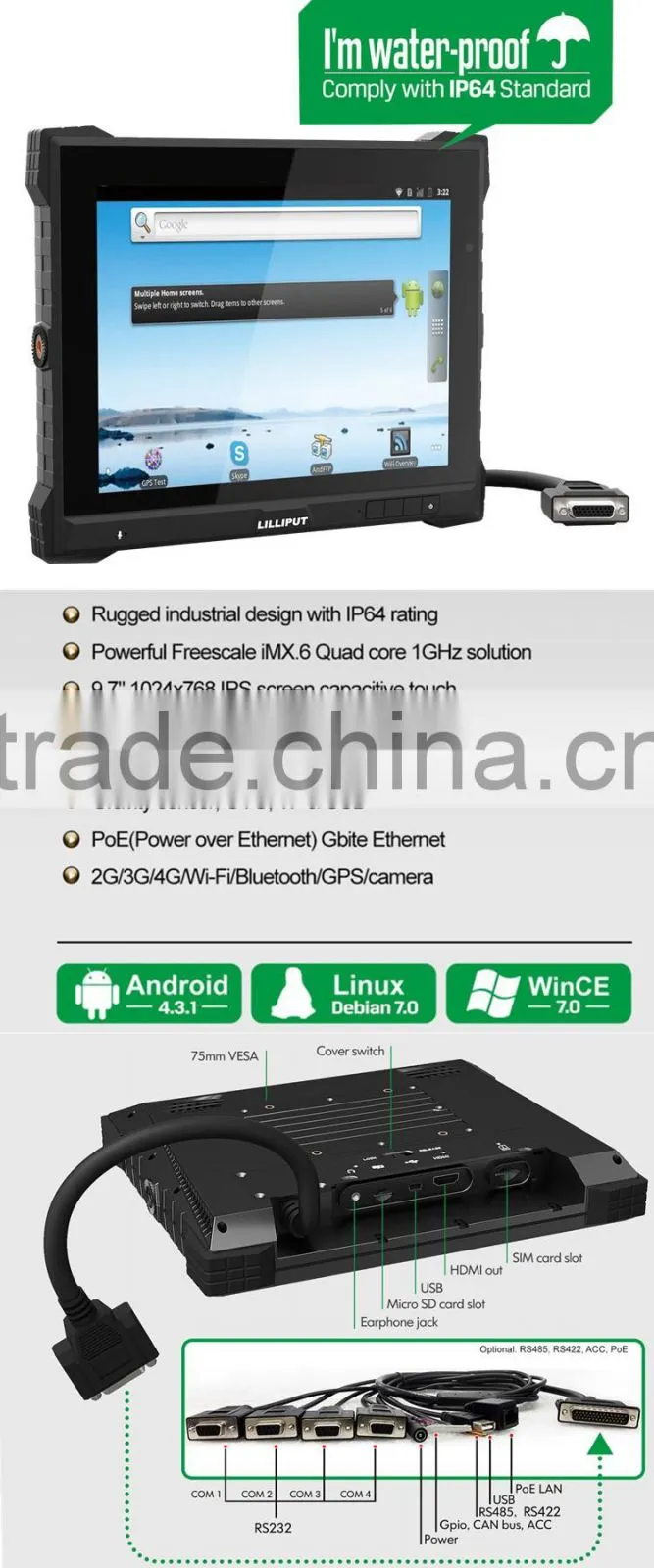

Rugged industrial design with IP64 rating;

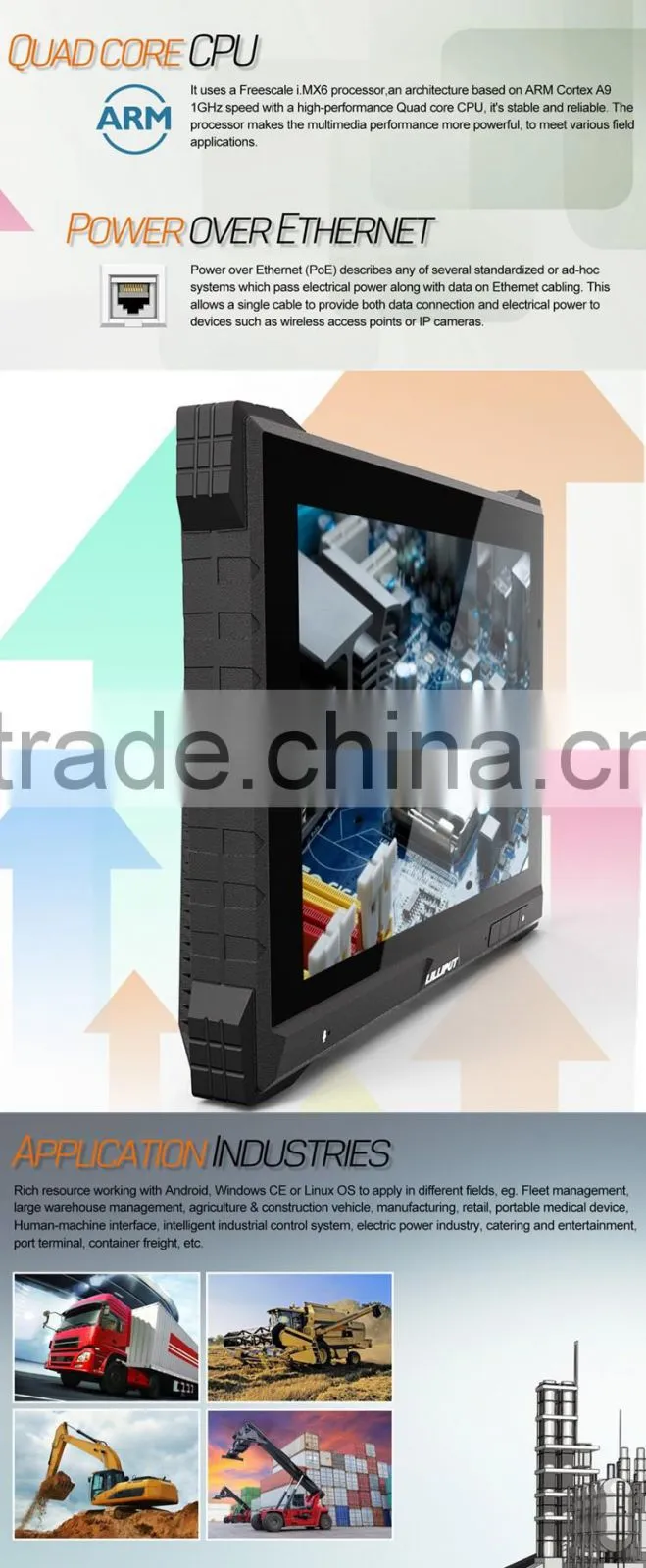

Powerful Freescale iMX.6 Quad core 1GHz solution;
9.7" 1024x768 IPS screen capacitive touch;
Built-in 7.4V 5000mAh battery;(optional)
RS232, RS485, RS422, Gpio, CAN bus, LAN
Gravity sensor, OTG, TF & USB
PoE(Power over Ethernet) Gbite Ethernet(optional)
2G/3G/4G/Wi-Fi/Bluetooth/GPS/camera(optional)

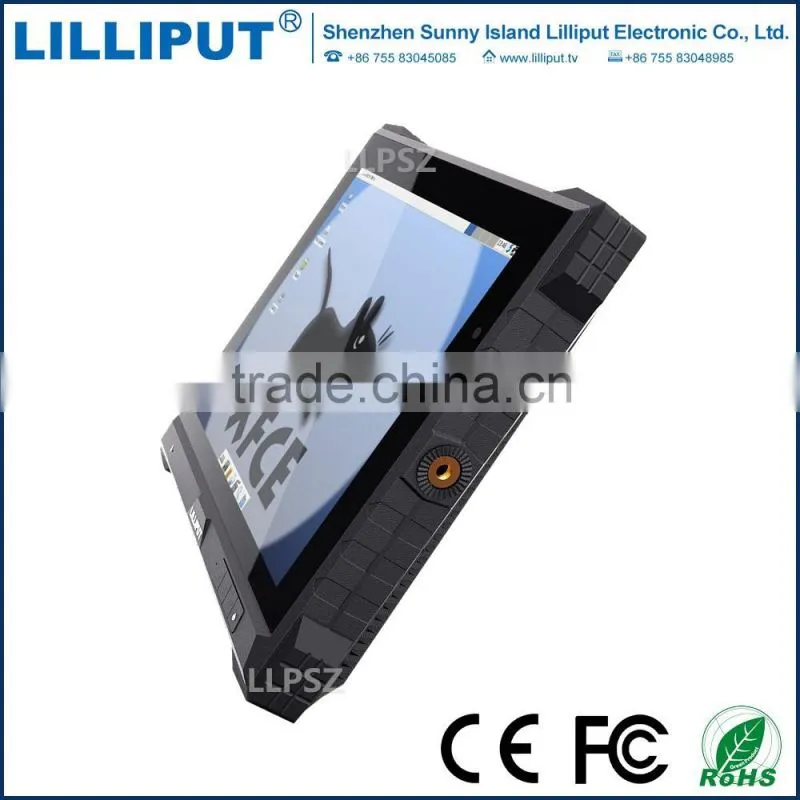

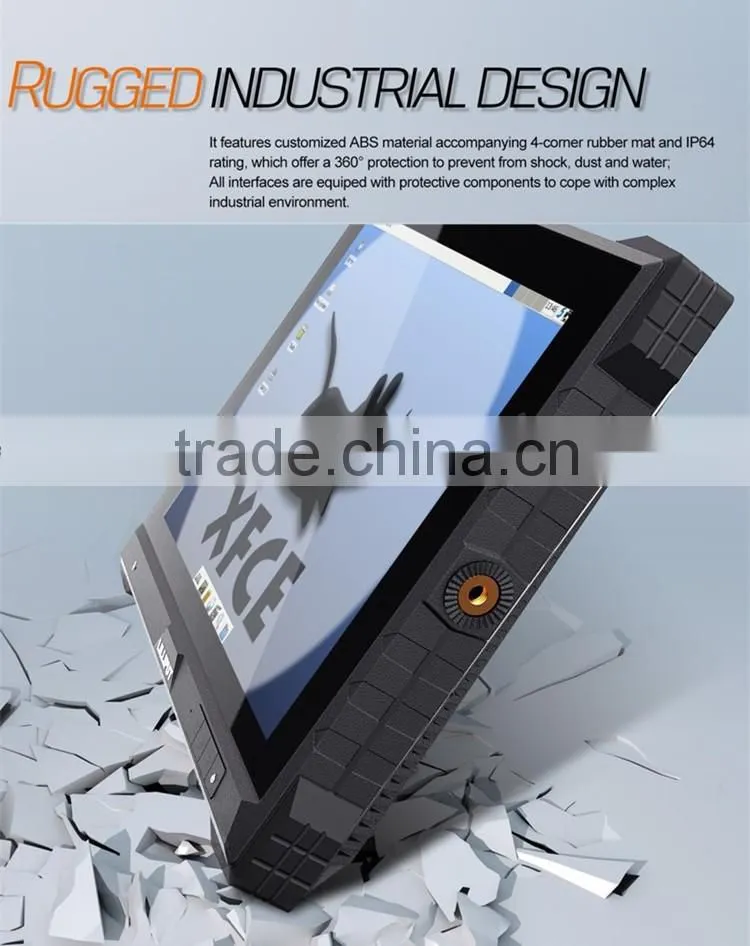

Rugged industrial design
it features customized ABS material accompanying 4-corner rubber mat and IP64 rating, which offer a 360° protection to prevent from shock, dust and water;
All interfaces are equiped with protective components to cope with complex industrial environment.
Display Screen |
9.7" IPS |
Resolution |
1024×768 |
Touch Panel |
Capacitive |
Brightness |
350cd/m2 |
Aspect Ratio |
4:3 |
Contrast |
900:1 |
Viewing Angle |
178°/ 178°(H/V) |
OS |
Android 4.3.1 / Linux Debian 7.0 / WinCE 7.0 |
CPU |
Freescale iMX.6 Quad core 1.0GHz |
GPU |
3D 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Halti, CL EP |
Media |
Audio: MP3, MP4, WMA, WAV… |
Core |
ARM Cortex-A9 |
Memory |
ROM: 8GB Flash, RAM: DDR3-1066 (533MHz) 1GBytes, up to 2GBytes |
Expansion Storage |
Micro SD card slot, USB Device 2.0, USB host 2.0 |
LAN |
LAN Ethernet |
Interface |
RS232×4 / RS232×3, RS485×1 / RS232×2, RS422×1, RS485×1 |
Audio |
Ear phone jack ×1, Microphone jack (optional) |
Optional Extensions |
3GWi-Fi & BluetoothCameraGPSACCPoE (Power over Ethernet) |
Power Consumption |
9W(Normal mode), 24W(Charging mode) |
Working Temperature |
-20 - 60ºC |
Storage Temperature |
-30 - 70ºC |
Power Supply |
DC 9-36V |
Battery |
Built-in 5000mAh (optional) |

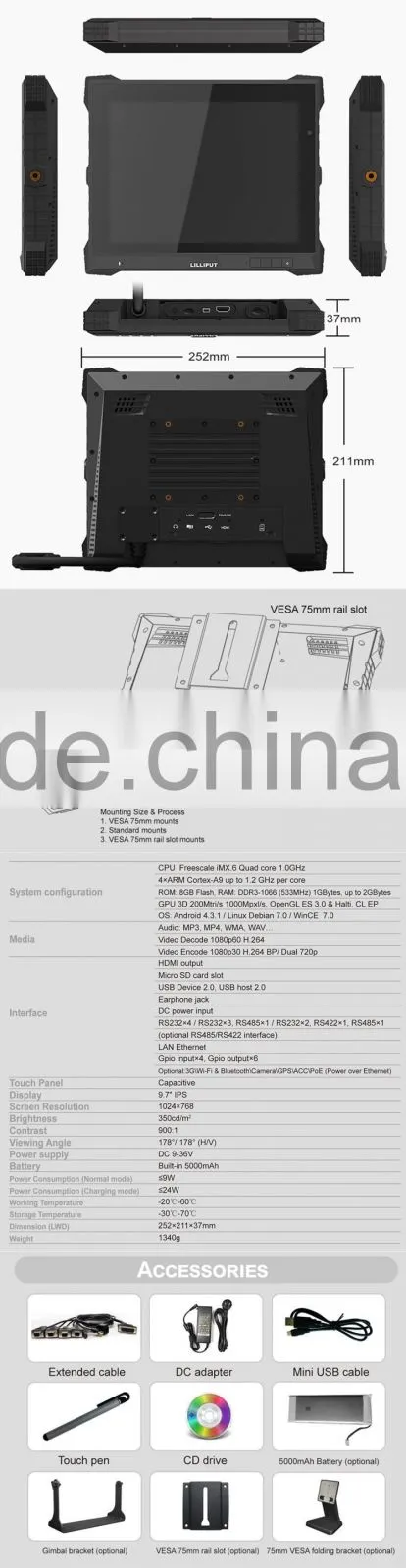

Dimension(LWD) |
252 × 211 × 37mm |
Weight |
1340g |
Accessories:
1. Extended cable |
1 piece |
2. Power adapter |
1 piece |
3. Mini USB cable |
1 piece |
4. Driver disk |
1 piece |
5. Operation manual |
1 copy |
6. Touch pen |
1 piece |
7. 9.7" Gimbal bracket (optional) |
1 piece |
8. VESA 75mm rail slot(optional) |
1 copy |
9. VESA folding bracket(optional) |
1 piece |
10. GPS antenna(optional) |
1 piece |
11. 5000mAh Li-ion battery(optional) |
1 piece |
12. Micro SD card(optional) |
1 piece |
