Help Center5D-II/O/P 7 Inch HDMI Monitor for Camera 5D Mark II
Related Products
-
10 Inch LCD Monitor DSLR Camera HDMI Camera Monitor With 250cd DC 6-24VNegotiableMOQ: 50 Pieces -
7" Battery Powered Lcd Monitor With Hdmi InputNegotiableMOQ: 50 Pieces
-
Lilliput 667GL-70NP/H/Y 7 Inch High Brightness Monitor With HDMI AV YPbPr InputNegotiableMOQ: 50 Pieces
-
569/O Lilliput Small HDMI Monitor With HDMI OutNegotiableMOQ: 50 Pieces
-
7 Inch Built-in Battery Powered LCD Monitor With HDMI InputNegotiableMOQ: 50 Pieces
Specifications
7 inch HDMI Monitor for Camera 5D Mark IIPeaking Filter
Histogram
Resolution 1024*600
Contrast 800: 1

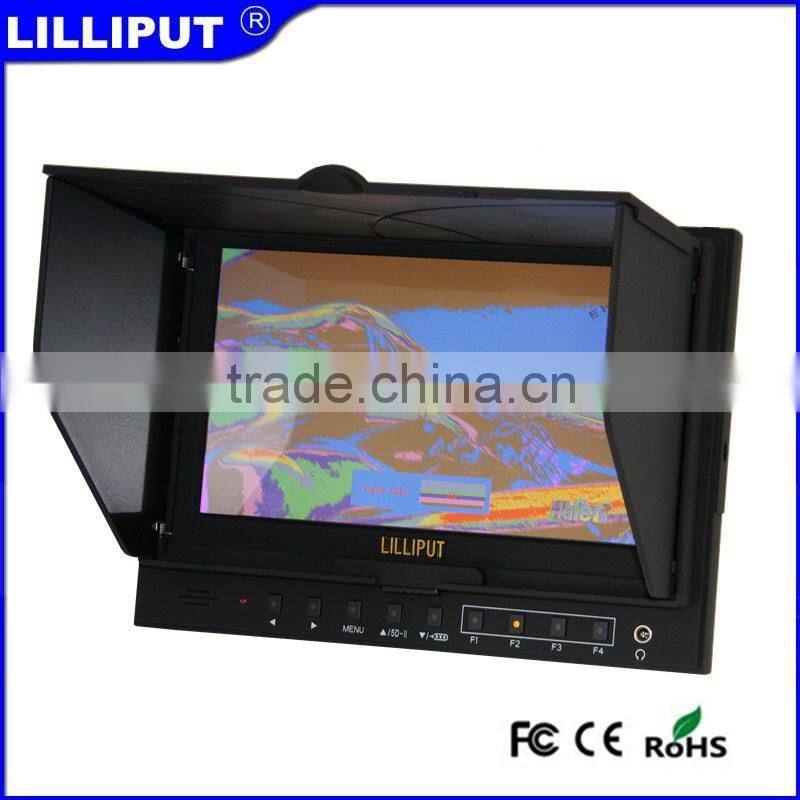

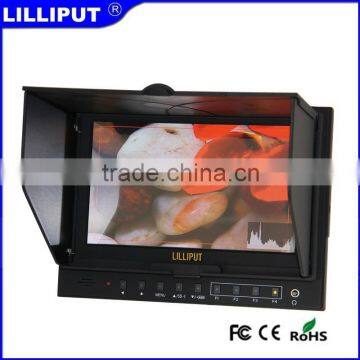

The Lilliput 5D-II/O/P is a 7 inch 16:9 LED field monitor with HDMI, and foldable sun hood. Equipped with focus assist and peaking function and optimised for DSLR & Full HD Camcorder.
Note: 5D-II/O/P(with advanced functions,with HDMI input & output)
7 inch monitor with wide screen aspect ratio
5D-II/P has a high resolution, wide screen 7" LCD: the perfect combination for DSLR use and the ideal size to fit neatly in a camera bag.
Optimised for DSLR cameras
Compact size, 1:1 pixel mapping, and peaking functionality are the perfect complements to your DSLR camera's features.
1:1 pixel mapping - find the finest details
5D-II/P shows you the true detail your camera captures. This feature is called 1:1 pixel mapping, allowing you to maintain the original resolution of your cameras output and avoid any unexpected focus issues in post-production.
Foldable sunhood becomes screen protector
Customers frequently asked Lilliput how to prevent their monitor's LCD from getting scratched, especially in transit. Lilliput responded by designing 5D-II's smart screen protector that folds out to become a sun hood. This solution provides protection for the LCD and saves space in the customers camera bag.
Better Advanced Functions
Providing advanced camera auxiliary functions. Peaking, False Color, Histogram & Exposure,etc., are major concerns with DSLR users. Lilliput's field monitors are great at displaying accurate images, 5D-II/P makes photoing & recording even easier with its functionality.
HDMI video output - no annoying splitters
Most DSLRs only have one HDMI video output, so customers need to buy expensive and cumbersome HDMI splitters to connect more than one monitor to the camera.
5D-II/O/P includes an HDMI-output feature which allows allows customers to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected.
High resolution
Lilliput's intelligent HD scaling technology used on the 668GL has worked wonders for our customers. But some customers need higher physical resolutions. 5D-II uses the latest LED-backlit display panels that feature 25% higher physical resolutions. This provides higher levels of detail and image accuracy.
High contrast ratio
5D-II/P provides even more innovations to pro-video customers with its super-high contrast LCD. The 800:1 contrast ratio produces colours that are vivid, rich - and importantly - accurate. Combine this with the high resolution LCD and 1:1 pixel mapping, 5D-II provides the most accurate picture of all Lilliput monitors.
Configurable to suit your style
Since Lilliput introduced the complete range of HDMI monitors, we have had countless requests from our customers to make changes to improve our offering. Some features have been included as standard on 665/P. Users can customize the 4 programmable function buttons (namely F1, F2, F3, F4) for shortcut operation according to different needs.
Wide viewing angles
Lilliput's monitor with the widest viewing angle has arrived! With a stunning 150+ degrees viewing angle, you can get the same vivid picture from wherever you are standing - great for sharing the video from your DSLR with the whole film crew.
DISPLAY |
Panel | 7" LED backlit |
|---|---|---|
| Physical Resolution | 1024×600, support up to 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 250cd/M2 | |
| Contrast | 800:1 | |
| Viewing Angle | 160°/150°(H/V) | |
INPUT |
HDMI | 1 |
OUTPUT |
HDMI | 1 |
AUDIO |
Speaker | 1 (built-in) |
| Ear Phone Slot | 1 | |
POWER |
Current | 800mA |
| Input Voltage | DC 7-24V | |
| Battery Plate | F970 / QM91D / DU21 / LP-E6 | |
| Power Consumption | ≤10W | |
ENVIRONMENT |
Operating Temperature | -20°C~60°C |
| Storage Temperature | -30°C~70°C | |
DIMENSION |
Dimension(LWD) | 196.5×145×31/151.3mm(with cover) |
| Weight | 505g/655g(with cover) |
