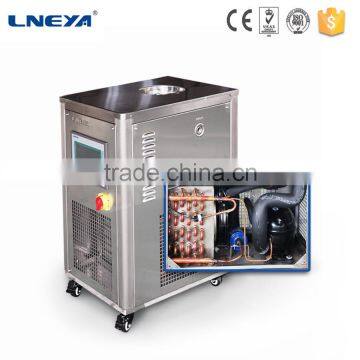

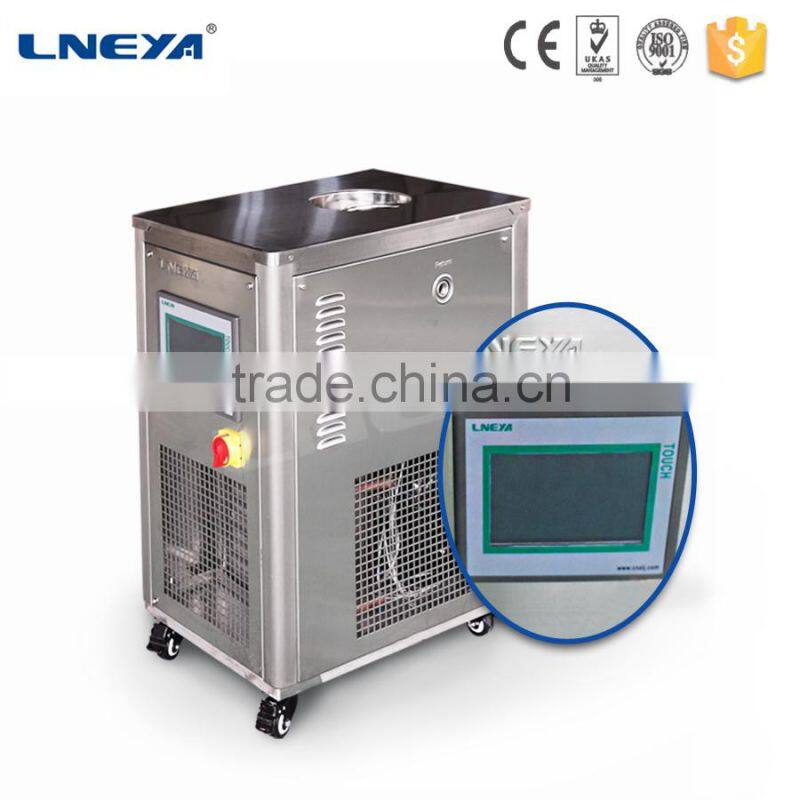

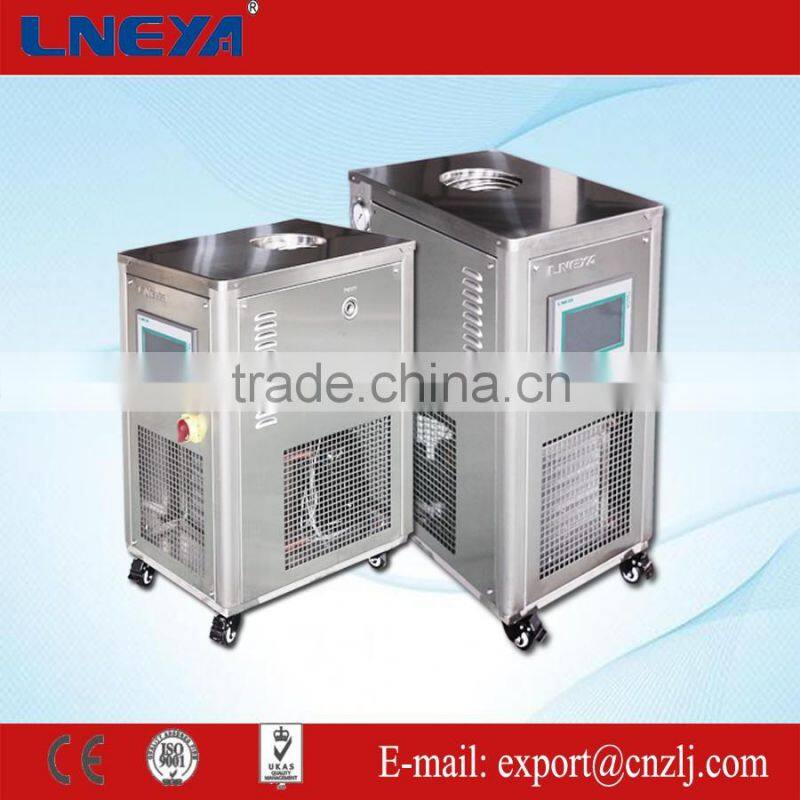

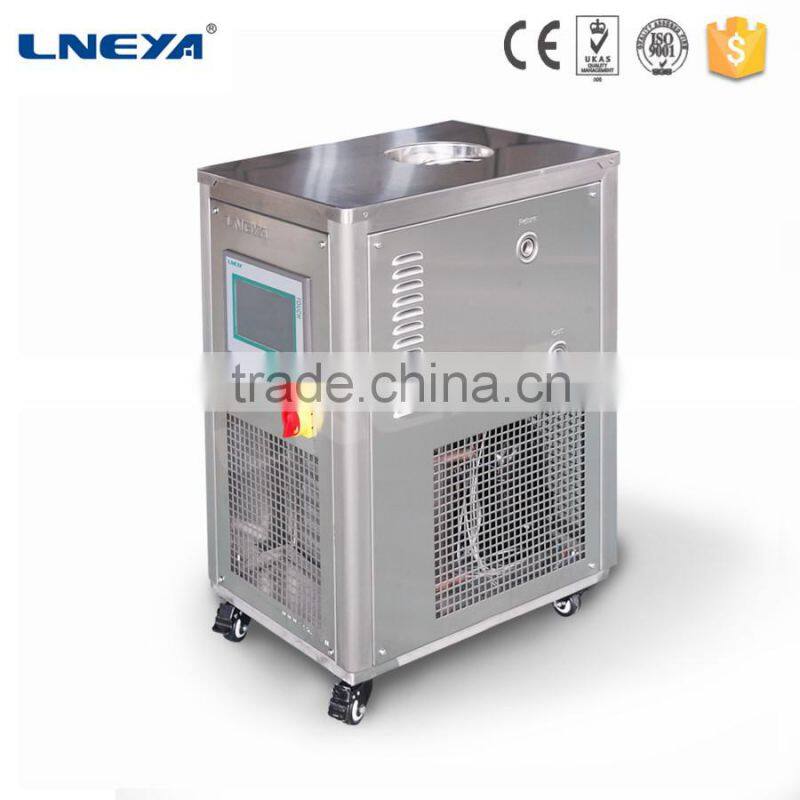

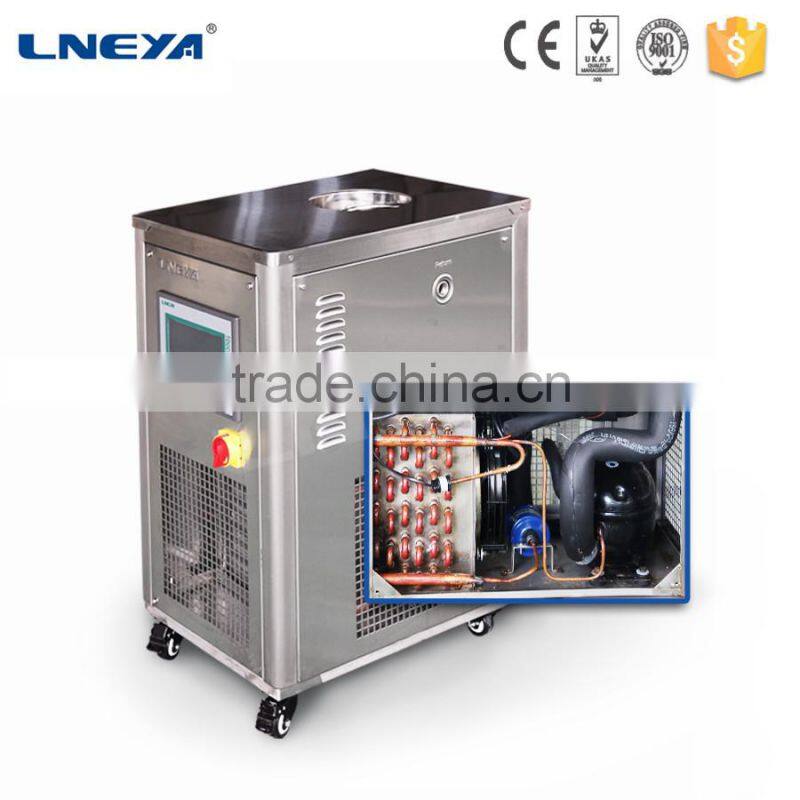

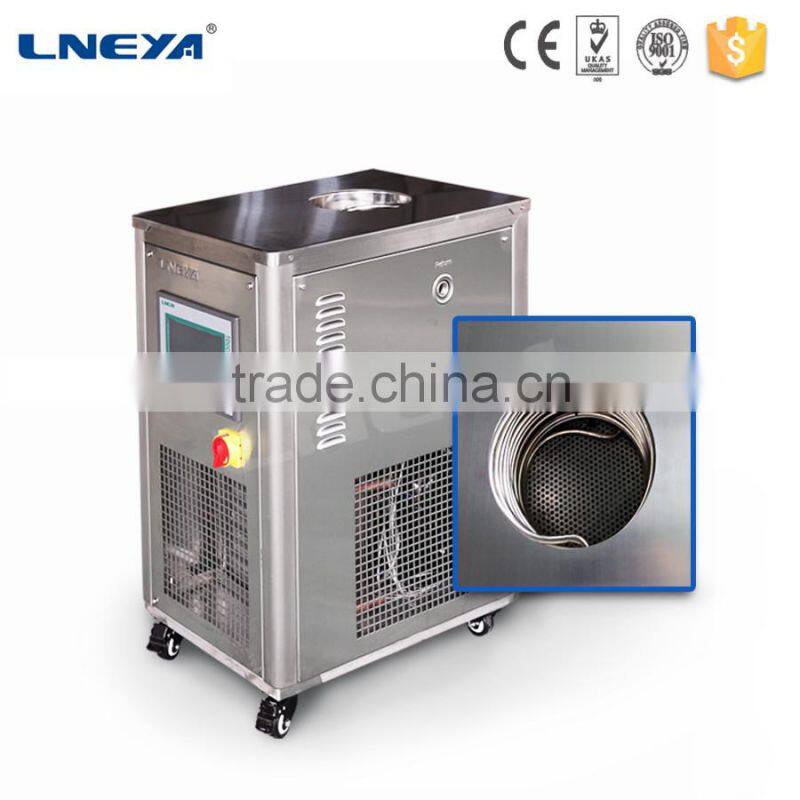

Laboratory water bath applied to biological engineering temperature range from -80 up to 100 degree SC-8005
Product Application
Widely used in petrochemical, chemical, pharmaceutical, bioengineering, life science, Light industry and food,Industry, sample testing and so on, provide a high-precision constant temperature liquid environment.
Safety system
• Refrigeration system high and low pressure protection and display
• Condensing temperature display and protection
• A variety of fault alarm (over-temperature alarm, sensor alarm, high pressure alarm, compressor overheating alarm;)
• Boot delay protection;
• All parts are safety grounding.
Techinial parameter
| Model | SC-8005 |
|
Temperature range |
-80.00℃~100.00℃ |
|
Temperature accuracy |
±0.03℃@ - 70℃ |
|
Temperature resolution |
0.01K |
|
Tank volume(mm) |
Diameter 200*150 |
|
Slot opening sizemm |
Diameter 200 |
|
Effective volume |
5L |
|
Temperature control mode |
PID adaptive controller |
|
Circulation pump flow rate |
10L/min 0.7bar The default is inside the loop, but it can receive into the outer loop mode |
|
Input Display |
7-inch color touch-screen input and display |
|
Data record |
Temperature curve records, USB data export ( excel format) |
|
Alarm function |
Over-temperature alarm, sensor malfunction alarm, independent overheat prevention device, refrigeration unit abnormal alarm |
|
Sensor |
PT100 |
|
Heating power |
600W |
|
Cooling capacity |
20℃ |
600W |
-20℃ |
550W |
|
-35℃ |
480W |
|
-45℃ |
350W |
|
-60℃ |
200W |
|
-75℃ |
100W |
|
|
System defined above 30℃ prohibit open refrigerator |
|
Material tank |
SUS304 |
|
Case material |
SUS304 |
|
Interface size |
12mm (Outer diameter) |
|
Compressor |
SECOP |
|
Dry filter |
Emerson |
|
Refrigerant |
LNEYA mixed refrigerant |
|
Machine size (mm) |
400*550*750 |
|
Power supply |
220V 50HZ 1200W (max) |
|
Total Weight |
62kg |
|
