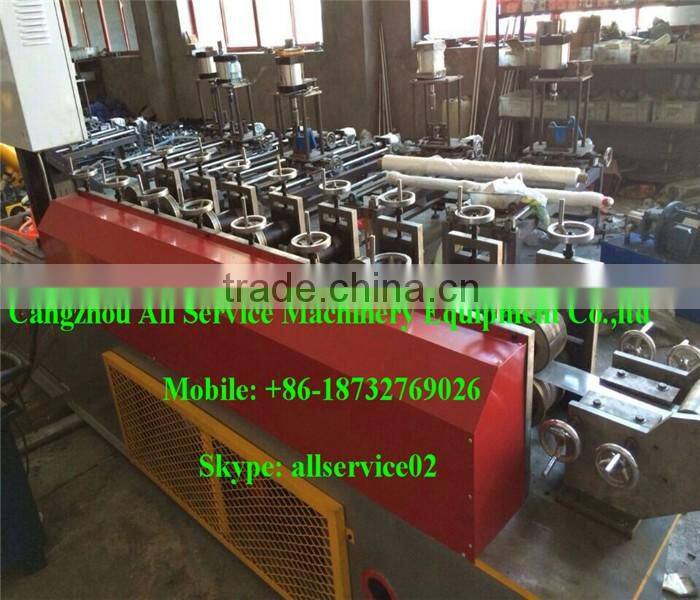

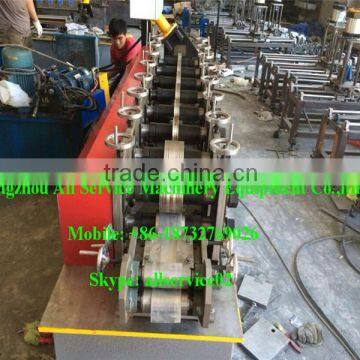

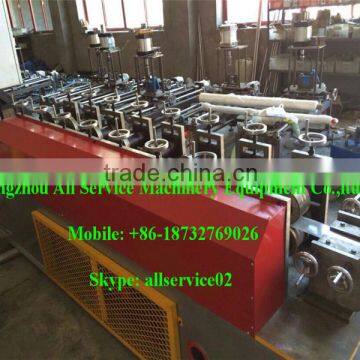

Help CenterLight Steel Keel Roll Forming Machine/Stud and Track Cold Roll Forming Machine
Related Products
-
Light Gauge Steel Framing MachineUS$ 12,000 - 18,000MOQ: 1 Set -
Light Gauge Keel Steel Roll Forming MachineUS$ 12,000 - 18,000MOQ: 1 Set
-
Ceiling Channel Roll Forming MachineUS$ 11,000 - 15,000MOQ: 1 Set
-
Dry Wall Stud Roll Forming MachineUS$ 11,000 - 15,000MOQ: 1 Set
-
U Channel Light Keel Roll Forming MachineUS$ 11,000 - 15,000MOQ: 1 Set
Cangzhou All Service Machinery Equipment Co.,Ltd. is located in Botou, Cangzhou City - the home of roll forming machine. With 20 years of production experience, we can offer you good quality machine at favourable price. We have been establishing and keeping good business relationship with more than 70 countries of worthy clients all over the world, mainly locating in East Europe, Middle East, South and West Asia, Africa and South America. Our main products as below:
1.Roof and wall panel forming machines
2.Corrugated tile roll forming machine
3.Double layer roll-forming machine
4.Joint hidden roll forming machine
5.Downspout and waterspout roll forming machine
6.Metal roll forming machine
7.Sandwich panel roll forming machine
8.Shearing bend slitting Uncoiler curving machine
9.Russia roll forming machinery
10.Especially for Asia type ,Russia type and Africa type
Details of the stud and track roll forming machine:
A.Technical Parameters
1. Main motor power: 3KW
2. Hydraulic station power: 3KW
3. Hydraulic oil pump: CB-E310
4. Sprocket: P-25.4
5. Roller station: 13
6. Yield strength: 200MPa
7. Diameter of principal axis: 70MM
8. Material of roller: 45#steel hard chrome plating
9. Processing speed: 8m/min
10. Thickness: <1.5mm
11. Installation dimension about (L*W*H): 4.6M*0.8M*1.4M
12. Total weight: 2T
13. Computer system: PLC control, DELTA
14. Equipment parts: 3T decoiler, forming machine, hydraulic cutter, hydraulic station, electric controlling system, counter.
B.Components:
The De-coiler
Coil Sheet Guiding and Adjusting Equipment
Film Covered Device

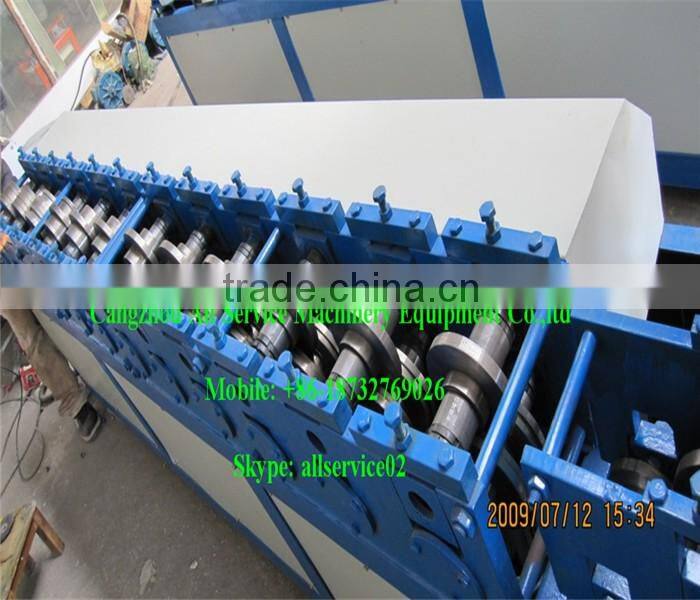

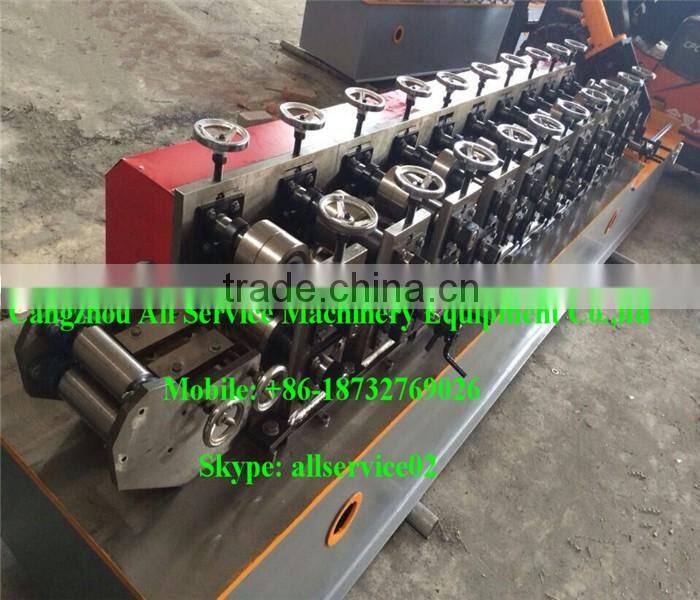

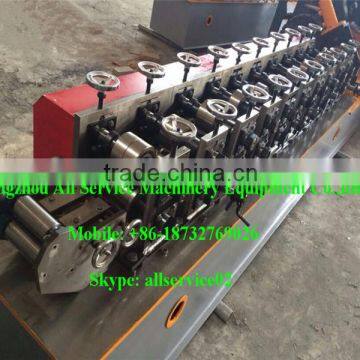

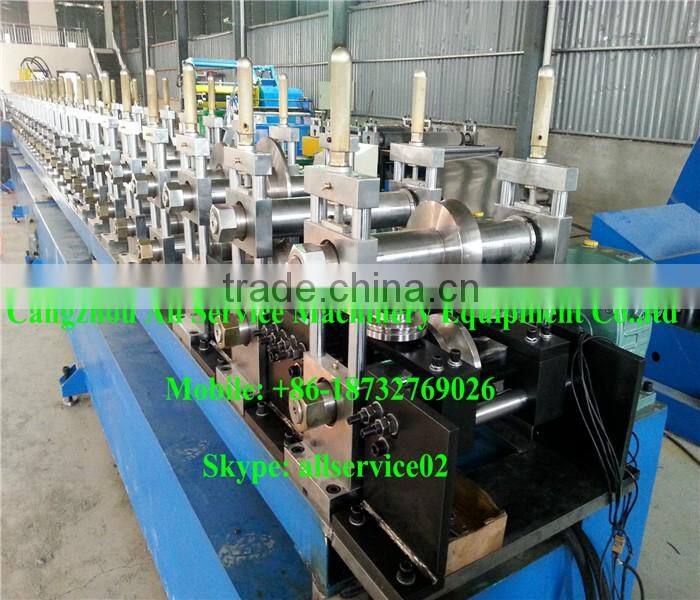

Main Roll Forming System
Cutting Device
Hydraulic Station
PLC Control System
Run-out Table
Sales Terms
1.Terms of payment: T/T, 30% T/T should be paid as advanced deposit, 70% T/T before shipment.
2.Delivery time: within 60 workdays after receipt of the deposit.
3.Guarantee:12 months guarantee. If some part of the machine is broken. We will supply the best part, but your side should shipped.
1: How to play order:
Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C ---then OK
2: How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
If any questions, you can call me mobile phone at any times: 0086-18732769026
3: When we exported the machines:
We have been making and exporting the machines for more than 10 years.
4: If you want to get more pictures or videos of the machines,
I can send them to you by Email or Skype.
