4A 600V Bridge Rectifier RS405L
1)Product Name: Bridge Rectifier
2)Part Number: RS405L
3)Maximum recurrent peak reverse voltage VRRM : 600V
4)Maximum RMS bridge input voltage VRMS : 420V
5)Maximum DC blocking voltage VDC : 600V
6)Maximum average forward IF : 4.0A
7)Peak forward surge current IFSM : 150A
8)Maximum instantaneous forward Voltage VF : 1.0V
9)Maximum DC reverse Current IR : 10.0uA
Bridge Rectifier: RS405L
Features:
Rating to 1000V PRV
Ideal for printed circuit board
Reliable low cost construction utilizing molded plastic technique
Mounting position: Any
PRICE TERM: FOB,EXW,CNF,CIF,DDU
SHIPPING METHOD: DHL,TNT,FEDEX,UPS,BY AIR OR BY SEA
DELIVERY TIME: 2WEEKS
Extra service you can get from LGE:
After-sale service: LGE will provide full after-sale service for all customers
Technical Support: LGE can provide technical support for all customers
Quality guarantee: all customers can enjoy 2years quality guarantee from LGE in case of the product confirmed quality problem
Return and replacement policy: if there is any damages and quality issue,customers can request LGE to return and replace the damage parts to LGE once confirmed the damages and quality issues are not caused at the customer end
What you can benefit from LGE:
1)Competitive prices will help you to save cost
2)Reliable quality will help you to avoid Purchasing Risk
3)We can ensure you: Short delivery,technical support and after-sale serive
4)One store shopping: Various components will help you to save time on select suppliers

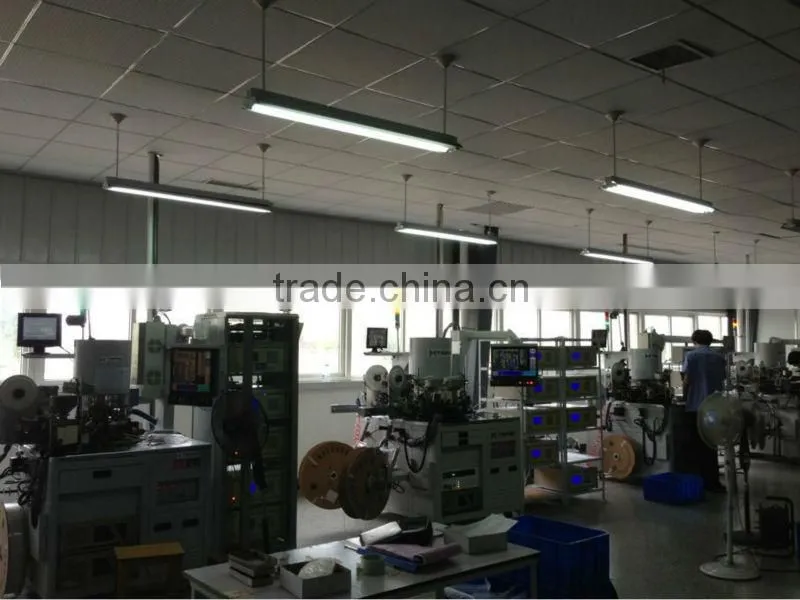

LGE FACTORY AND WORKSHOPS:
Certificates:
