Our Product of DIN gate valve
The material of the DIN strandard gate valve rising stem gate valve dn100
| Item | Main Parts | Material |
| 1 | Body | ductile cast iron |
| 2 | Disc | Ductile cast iron packed with rubber or PM outside |
| 3 | Bolt | Carbonized treatment |
| 4 | Gasket | Buna-N rubber or DM |
| 5 | Cover | Grey cast iron, ductile cast iron, cast steel |
| 6 | Stem | Stainless steel |
| 7 | O-ring | Buna-N rubber |
| 8 | Thrust bearing | Gun metals |
| 9 | Bolt | Carbon steel or alloy |
| 10 | Gland | ductile cast iron, cast steel |
| 11 | Dust proof gasket | Buna-N rubber |
| 12 | Hand wheel | Ductile iron |
The features of the DIN strandard gate valve rising stem gate valve dn100
| Type | Nominal pressure(MPa) | Testing pressure | Suitable temperature(°C) | Suitable medium | |
| Strength (water) (MPa) | Enclose (Water) (MPa) | ||||
| Z45T-10/16 | 1.0 | 15.5 | 1.1 | 80 | water |
| Z945T-10/16 | 1.6 | 2.4 | 1.8 | ||
| Z45X-16 | 1.6 | 2.4 | 1.8 | ≤80℃ | water |

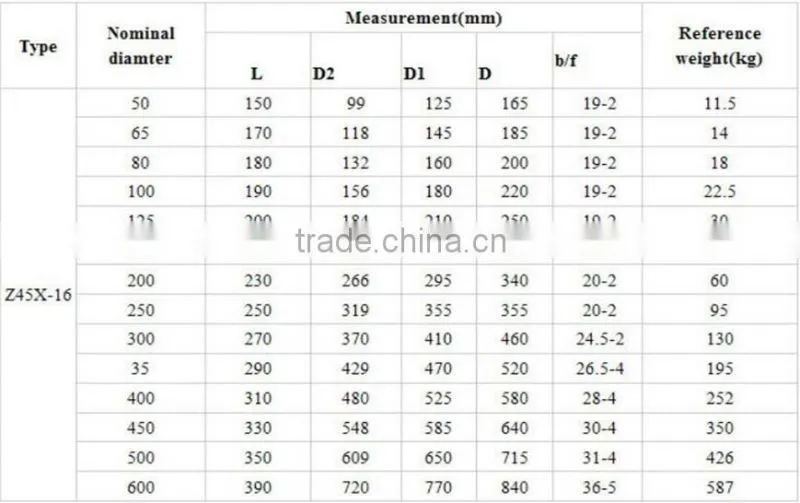

The measurement of the DIN strandard gate valve rising stem gate valve dn100
The usage of the DIN strandard gate valve rising stem gate valve dn100
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.
The manufacturing of the DIN strandard gate valve rising stem gate valve dn100
For the flanges , generally we use the wooden box and wooden pallet with plastic film, for the DIN strandard gate valve rising stem gate valve dn100, we can use those two type, and also we use the Woven bag. In addtion, we can change the shape of the packaging according to customer requirements.
Except DIN strandard gate valve rising stem gate valve dn100, we can also supply the DIN standard flanges, JIS standard flanges, ANSI standard flange, and kinds of valves. If you need the Non- standard products ,according to your drawings, we can produce the product, that you most satisfied.
In Hebei, the base of the processing and transformation of casting steel flange(Suicheng,Baoding), and one of the largest Chinese Manufacturers of casting steel Valve are our supply chain,at the first link to ensure the clients' requirements. The delivery time is 7 -45 days .
Our main markets are South American , Spain, Italy, Russia , Middle East, Southeast Asia and other countries or areas.
OUR WORDL MARKET
1, Can i get free samples?
A: Yes,we can provide you the free sample, but you need to bear their own delivery costs.
2, Can I request to change the form of packaging and transportation?
A:Yes,We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3, Can i request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4,Can i have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5,Can you produce the products according to my own drawings?
A:Yes,we can produce the products according to your drawings that wii most satisfy you.
If you have any questions or you are interested in our products, please do not hesitate to contact us!!!
