Help CenterSteel Plate Edge Cutting Machine
Related Products
-
Milling Beveling MachineUS$ 3,500 - 4,500MOQ: 1 Set -
Plate Finishing MachineUS$ 3,500 - 4,500MOQ: 1 Set
-
GD-20 Rolling Plate Beveling MachineUS$ 3,500 - 4,500MOQ: 1 Set
-
Hot Sale!!! GD-20 Milling and Beveling MachineUS$ 3,500 - 4,500MOQ: 1 Set
-
Hot Sale!!! DINGCHENG GD-20 Milling and Beveling MachineUS$ 3,500 - 4,500MOQ: 1 Set

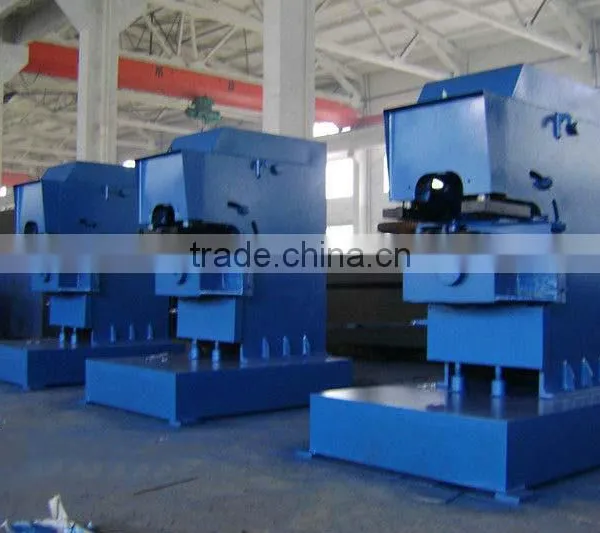

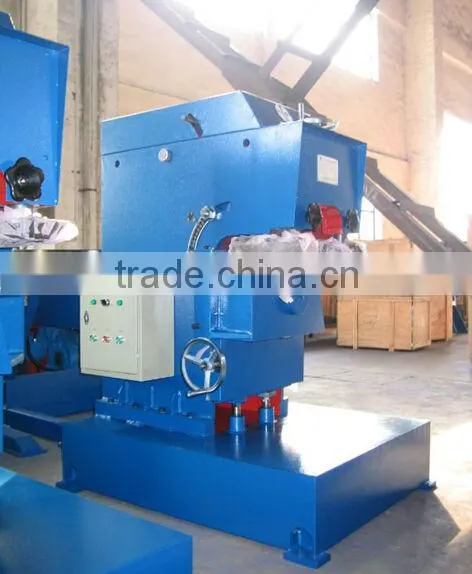

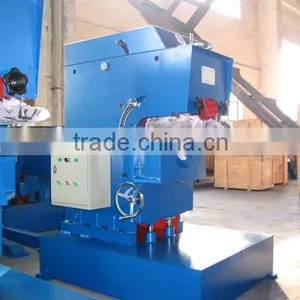

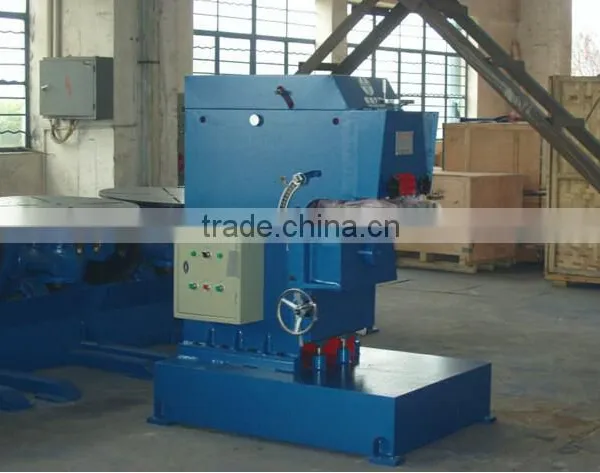

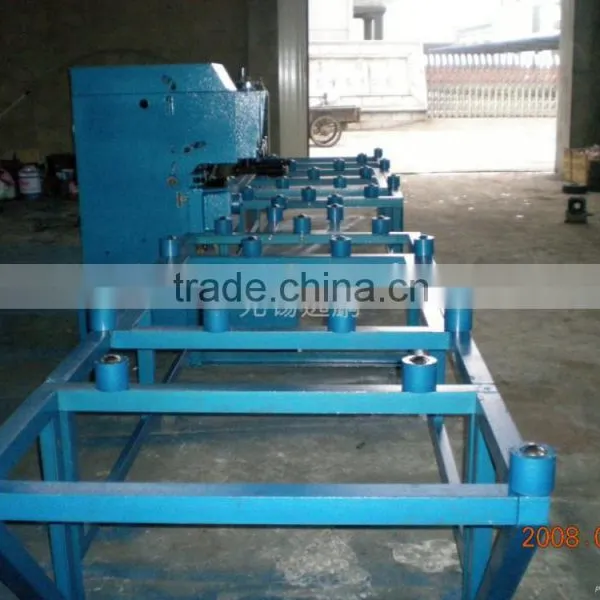

GD-20 milling and beveling machine
Advantages:
1.It's convenient in operation,
2.very high in working efficiency
3.low in energy consumption.
4.CE&ISO approved
Profile:

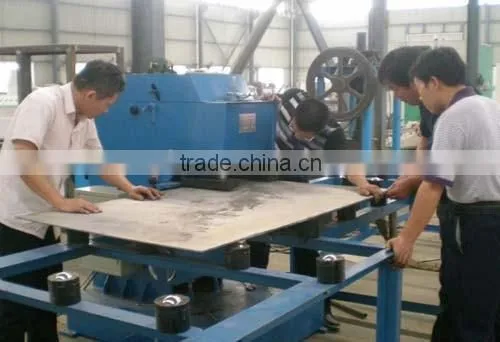

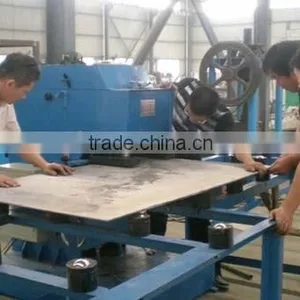

1.The beveling machine is adopted with the milling principle to mill the angle for the edge of the steel plate, and to get the groove for welding. The machine is accurate in size, bright and smooth in surface, and is formed once. There is no need to make de-burring.
2.It's convenient in operation,very high in working efficiency and low in energy consumption.
| Type | GD-20 |
||
|
Steel plate tensile strength (Nmm2) |
<400 |
>400-500 |
>500 600 |
| Steel sheet | A3 |
16Mn |
1CRI18Ni9T |
| Max.width W(mm) | 20 |
16 |
12 |
| Feeding speed V(mm) | 2.9 |
3.1 |
3.4 |
| Chamfer degree a° | 2555 |
||
| Min straight line (mm) | 2 |
||
| Max.thickness (mm) | 45 |
||
| Diameter of knife (mm) | 200 |
||
| Main motor type | Y112M-4 4KW/1440r/min |
||
| Overall dimeasion(LxWxH) | 1240×940×1500 |
||
Jining Dingcheng Industrial&Mining Equipment co., LTD.
URL: www.jndingcheng.en.china.cn
Email/MSN:
Mobile: 86-15206706922/86-537-3200901
Skype: madery.dcjx QQ:1955467525
Send Inquiry to This Supplier
