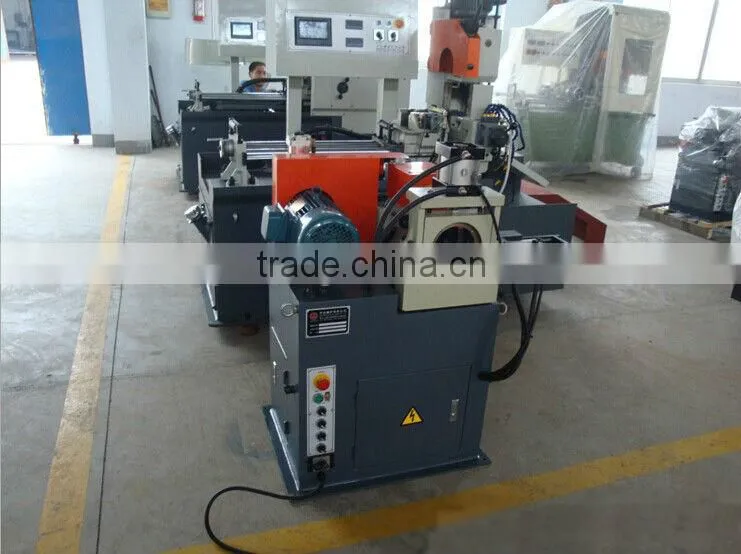

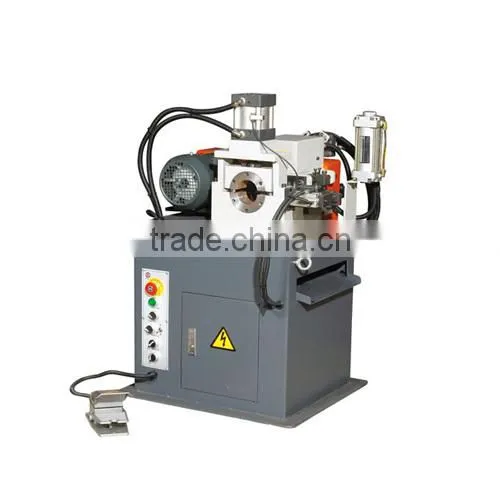

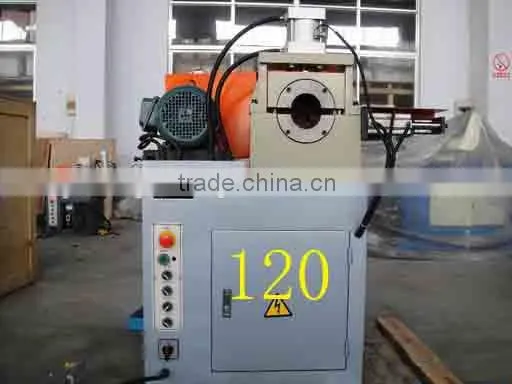

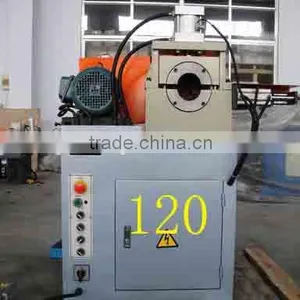

ZT-80 Steel Pipe Single End Chamfer Machine

Name: ZT-80 Steel Pipe Single End Chamfer Machine
Brand: DINGCHENG
SKU: 116892501

US$ 2,300 - 2,900 MOQ: 1 Set

Key Specifications

Type:

Surface Grinding Machine

CNC or Not:

Normal

Max. Grinding Diameter:

Jining Dingcheng Industrial & Mining Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao/zhangjiagang

Delivery Detail:

Delivery time depends on order quantity.

Type Surface Grinding Machine

CNC or Not Normal

Max. Grinding Diameter 80

Place of Origin Shandong, China

Brand Name DINGCHENG

Model Number ZT-80

Voltage 380

Power(W) 8HP

Dimension(L*W*H) 870*690*110

Weight 250

steel chamfering machine/ single-end steel chamfering machine

Characteristics

Suitable for iron, copper, aluminum pipe parts’ inner, processing of exterior angle, chamfering,

as well as end are completed at one time.

Manual material feeding, automatic clamping, automatic blades penetrating and returning,

fast speed, big capacity, high efficiency, convenient operation, easy learning and understanding.

The speed of main shaft blade penetrating can be adjusted, fast speed and work speed functions

are available.

In accordance with chamfering processing of work pieces of different size, only need to change

the clamp and adjust the blade bed.

MODLE	ZT-50SA	ZT-80SA	ZT-120SA	ZT-150SA
Main motor	1HP×4	2HP×4	3HP×4 OR 1.5HP×6	5HP×4 OR 3HP×6
Rotate speed(RPM)	900/600, 2000/3560	1200, 1600	800, 1600	800, 1600
Use air pressure	Mpa 6-8kg/cm2, 120ml/min0.6~0.8 Mpa
Suitable material	Cliber, iron tube,stainerss steel tube,copper tube,non-ferrous metal tube,plastic tube,carbon fiber tube, pipe diameter, round rod processing range O, D, inside and outside end face
Suitable for pipe diameter	3.2~50	3.2~80	19~120	50~200
Dimensions (mm)	780×620×840	780×620×950	760×700×1140	760×700×1160
Packing dimension (mm)	870×690×1000	870×690×1100	870×750×1380	870×750×1380
Net weight	160kg	100kg	310kg	350kg
Gross weight	250kg	160kg	360kg	400kg
